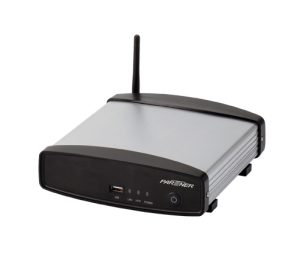

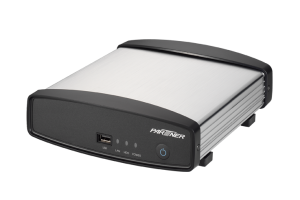

PT-1510 POS PC

The Space & Energy Saver

The Space & Energy Saver

The PT-1510 POS PC gives you a reliable, cost-effective option for point of sale (POS) and light digital signage. It’s a smart choice when you are looking for an innovative, yet practical, solution, to support your operations. It is an excellent choice for kiosk solutions that can augment your capabilities with self-service options and that can provide your customers with easy, convenient ways to access information, place orders, or complete payment transactions without assistance.

  • 1.86 GHz dual-core processor

  • 2GB DDR3 memory standard (up to 4GB supported)

  • Compact, slim and lightweight

  • Aluminum housing

  • Fanless

  • Spill and grease-resistant design

  • Tabletop & Wall mount capable



  • 802.11 b/g/n Wifi module (USB interface)

Item PT-1510
CPU Intel® Atom™ processor D2550 (1M L2 Cache, 1.86 GHz, dual core )
Memory 204pin DDR3 SO-DIMM 2GB (2 DIMM Sockets up to 4 GB)
Ethernet 10/100/1000 BASE-T Gigabit Ethernet
Storage Internal SSD 32G as standard
I/O Interface 4 * COM ports with 5V or 12V (COM1?COM2 power set by BIOS;
       COM3?COM4 power set by Jumper setting)
1 * DB-15 VGA port
1 * RJ11 port for 2 cash drawer(+24V)
1 * RJ-45 LAN port with activity and link LEDs
5 * USB ports (1 port in front; 4 ports in rear),
1 * DC +12V power adaptor connector
1 * 802.11g WLAN antenna connector (option)
1 * DC out 12V
LED 1 x power LED, 1 x HDD LED, 1 x LAN LED (Green)
Optional 802.11 b/g/n WI-FI module(USB Interface)
Operation System Windows 7, POSReady7, Linux (ubuntu)
Power Supply AC100~240V/DC12V, 7.5A, 90 watt power adaptor
Dimensions Physical: 74.4in (W) x 91.3in (D) x 23.2in (H)
Operating Temp 0°C ~ +40°C
Storage Temperature -20°C ~ +60°C
Humidity 15%~80%
Certification CE, FCC, LVD, VCCI, BSMI
