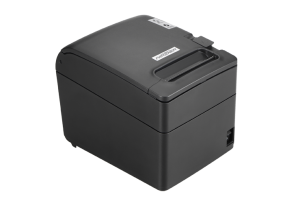

RP-600 High Performance Receipt Printer
Heavy-Duty
High Speed Printer
Partner Tech’s thermal printers are high speed thermal printer solution for retail and hospitality environment that require fast and quiet printing. Supporting a full range of fonts for different countries.
The RP-600 is a particularly fast thermal receipt printer with a printing rate of up to 230 mm/s at a resolution of 180 dpi. The compact size and high performance make this dependable model absolutely ideal for many applications. A wide range of interface and port options allows easy installation and simple integration to either POS environments or POS solutions.
Standard roll thermal paper
58-80mm paper width
230 mm/sec high-speed printing
Supports full & partial cut
Wall mounting
Supports Serial, Parallel and Ethernet connections
Compatible with a wide range of operating systems
| Item | RP-600 | |
| Printing | Method | Direct Thermal |
| Speed | 230mm/sec | |
| Width | 72mm(512Dots/Line) | |
| Resolution | 180DPI | |
| Paper | Type | Thermal Paper |
| Width | 50mm ~ 83mm | |
| Thickness | 0.06mm ~ 0.10mm | |
| Roll Diameter | Max. F 80.0mm | |
| Roll Core Inner | 12.5mm ± 0.5mm | |
| Memory | RAM : 2MB, Flash : 2MB | |
| Reliability | Tph life | 150km |
| Mcbf | 60,000,000 Lines | |
| Auto cutter | 1,500,000 cuts(Guillotine) | |
| Sensor | Standard | Paper End, Cover Open Black Mark |
| Interface | Standard | USB + (Serial or Parallel or Ethernet) |
| Option | Serial, Parallel, Ethernet | |
| Emulation | ESC/POS Command Compatible | |
| Driver | Window Printer Driver(7, XP), OPOS, Linux, JavaPOS | |
| Power | Type | External SMPS |
| AC | 100 ~ 240Vac 50/60 Hz | |
| DC | 24Vdc /2.15A | |
| Temperature | Operation | 5°C ~ 40°C |
| Storage | -20 °C ~60°C | |
| Dimensions | 77.1in x 57.4in x 58.2in (L x W x H) | |
| Color | Black, White | |
| Certification | CCC, FCC, CE, cUL | |
