Project Description

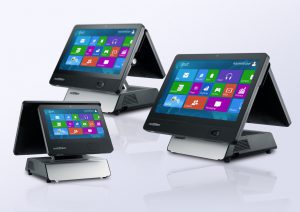

SP-2500 Transformable POS SYSTEM

Provides Flexibility and Options for Full POS Functionality

Transform As Your Need

The Partner Tech SP-2500 series takes flexibility to a whole new level. This powerful and attractive POS PC has no fixed configuration, so you can choose your modules and peripherals for a completely customized solution, perfectly suited for any business environment.


  • Transformable Touch Terminal with three selection of wide screen 18.5″/15.6″/11.6″

  • Fanless J1900 Quad-Core

  • Projected Capacitive Touch

  • Same wide screen displays support both operation and customer side



  • Optional Powered USB 24″V / 12V*3
  • Integrated Pripherals also support on second display

  • Expansion Options: 1 Mini PCIe & WLAN module

  • Integrated Peripherals: MSR /IC Card / RFID / Fingerprint Reader / I-Button / 2D Scanner / Camera

  Item SP-2500 SP-2511 SP-2515 SP-2518
POS PC Touch Terminal Touch Terminal Touch Terminal
  Processor   Intel® Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache
  Memory   204pin DDR3L-1333 SO-DIMM x 2, Max Support 8GB
  Display N/A 11.6″1366×768 15.6″1366×768 18.5″1366×768
  Touch N/A Projected capacitive touch (Multi Touch)
  LAN   10/100/1000 Gb Ethernet x 1
  Storage   Internal 2.5” type SATA HDD, optional 2nd HDD
  I/O Interface   4* COM ports (powered with DC +5/+12V, COM1~2 by BIOS selection;
     COM3~4 by jumper setting)
  1* RJ11 port supports 2 cash drawer (DC+24V)
  1* RJ-45 LAN port with activity and link LEDs
  5* USB 2.0
  1* USB 3.0
  1* DC+12V input power-jack
  1* DC+12V 1A output
  1* VGA port
  1* Audio Line In/Out or 1* Printer port
  Speaker   1* 3W   3* 3W
  Optional IO/Peripherals   1* 2nd VGA Port   Dual Display 11.6”, 15.6”, 18.5”
   3 Tracks Magnetic Reader
   2D Barcode Scanner
  ** Support 3 out of 4 Peripherals coexist as below:
   Smart Card Reader
   Biometric Reader or I-Button
   RFID Reader (Factory Option)
   Camera 2.0 (Factory Option)
  Optional IO   Power USB 3*12V 1*24V
  Operation System   Window 7, POS Ready7, Window 8.1, Industry 8.1 , Linux (Ubuntu), Windows 10
  Power Supply   AC100~240V/DC+12V, 7.5A, 90 watt power adapter
  AC100~240V/DC+12V, 15A, 180 watt power adapter for integrated power
  USB module (optional)
  Dimensions 11.6 x 3.2 x 11.8 in (WHD) 12.1 x 12.2 x 11.8 in (WHD) 15.4 x 13.5 x 11.8 in (WHD) 18.3 x 14.7 x 12.1 in (WHD)
  (WxHxD mm) @LCD 83°tilt angle @LCD 80°tilt angle @LCD 75°tilt angle
  Operating Temp   0°C ~ +40°C
  Storage Temperature   -20°C ~ +60°C
  Humidity   15%~80%
  Certification   CE, FCC, LVD, VCCI, BSMI, CCC, CB, Class A
