為您的客戶提供便利的自助服務
KIOSK在許多垂直市場中變得非常流行，含括零售、餐飲服務、住宿、醫療保健、交通、政府和博弈產業。但對於一些企業來說，因成本限制、空間限制和其他因素等，安裝傳統的獨立式KIOSK相當不容易
房卡發卡機
自助服務不僅消除了長長的入住排隊等候，還使入住/退房更加方便和私密。使用酒店房卡發卡機，客人無需任何手動操作即可領取他們房卡。
身份證和護照驗證
AD-215-H 具有整合式高解析度的文檔掃描器，可提供準確的身分證明文件驗證，以加快入住報到過程
優化工作流程
模組和周邊設備的選擇包括條碼掃描器和 RFID 掃描器、收據印表機和支付終端機，可滿足個人業務和KIOSK應用的需求
產品特點
- 21.5”FHD寬螢幕電容屏和採用無風扇設計的高性能Intel CPU
- 高速 M.2 PCIe
- 高品質 OCR 掃描器，能準確識別身份
- 快速製作房卡與發卡
可選配置
- RFID 感應器
- 現金模組
- 體溫量測模組
對拍檔產品有興趣嗎?
| Item | AD-215-H | |||||
|---|---|---|---|---|---|---|
| Display | 21.5", 16:9 , 1920 x 1080 (500 nits) | |||||
| Touch | PCAP Touch | |||||
| CPU | Alder Lake-N Intel® Processor N97 Intel® Core™ i3-N305 |
Alder Lake-P Intel® Core™ i3-1215U Intel® Core™ i5-1245U, vPro Intel® Core™ i7-1265U, vPro |
Elkhart Lake Intel® Celeron® J6412 |
|||
| Memory | DDR4 4GB, 8GB, 16GB | DDR4 4GB, 8GB, 16GB, 32GB | DDR4 4GB, 8GB, 16GB, 32GB | |||
| Storage | M.2 PCIe SSD: 128G / 256G / 512G / 1TB | |||||
| I/O Interface | 6 x USB 3.2 + 2 x USB 2.0 | 4 x USB 3.2 + 4 x USB 2.0 | 3 x USB 3.2 + 5 x USB 2.0 | |||
| 1 x Intel LAN(IEEE 802.3 10/100/1000/2500 Mbps) | 1 x Intel LAN(IEEE 802.3 10/100/1000 Mbps) |
1 x LAN (IEEE 802.3 10/100/1000 Mbps) | ||||
| 4 x serial ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3, COM4) | ||||||
| 1 x Type-C (Data transfer / Display / Power Delivery 60W) | 1 x Type-C (data transfer + display) | 1 x Type-C (data transfer only) | ||||
| 1 x RJ11 port support for 2 cash drawers with 24V / 12V by jumper setting | ||||||
| 1 x DC +12V out | ||||||
| 1 x DC +12V input | ||||||
| 1 x audio (1 x line-out) | ||||||
| 1 x HDMI | ||||||
| Speaker | 1 x speaker (3W) | |||||
| Printer | 3" thermal printer | |||||
| Barcode Scanner | 2D barcode scanner | |||||
| OCR Scanner | OCR secure scan manager | |||||
| Card lssuing | Card issuing machine | |||||
| Peripheral Options | EMV terminal brackets , 8MP camera , RFID / NFC reader , DM shelf , Wheels kit: Two wheels & one handle | |||||
| Bill Acceptor : Acceptance Rate : 98% or greater Bill Box Capacity : Approx. 600 bills Bill Accepted : (W) 62~74 mm Bill Insertion : Four-way |
||||||
| Bill Dispenser : Dispensing Speed : 2.5 notes/sec Bill Capacity : Approx. 500 notes (depends on the note thickness) Bill Accepted : (W) 62~77mm / (L) 120~160mm / (T) 0.08~0.125mm |
||||||
| Coin Dispenser : Dispensing Speed: 5~6 coins/sec Coin Capacity: Approx. 500 coins Applicable Coin Sizes : A TYPE - (Diameter) 22.5~28mm / (Thickness) 1.6~2.4mm |
||||||
| Wi-Fi / BT (option) | Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2 |
|||||
| Operating System | Windows 11 IoT Enterprise LTSC 24H2 (64bit) | Windows 11 IoT Enterprise LTSC 24H2 (64bit) | ||||
| Windows 10 IoT Enterprise LTSC 21H2 (64bit) | ||||||
| Linux Ubuntu 22.04 | Linux Ubuntu 22.04 | |||||
| TPM & vPro | S/W TPM 2.0 (BIOS) | 1. Intel vPro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) | |||
| 2. S/W TPM 2.0 (BIOS) | ||||||
| Power Adaptor | Desk top : AC-In 100~240V/DC-Out 12V, 156W | |||||
| Floor stand : AC-In 100~240V/DC-Out 12V, 216W | ||||||
| Reliability | System operating temperature: 0~40°C/ 32~104°F | |||||
| System humidity: 15% ~ 80% | ||||||
| Storage temperature: -20~60°C/-4~140°F | ||||||
| Dimensions (Wx Hx D) | Desk top : 492 x 965 x 356 mm/ 19.37 x 37.99 x 14.02 in | |||||
| Floor stand : 497 x 1702 x 456.5 mm/ 19.57 x 67.01 x 17.97 in | ||||||
| Weight | Desk top : 38 kg / 83.70 lb | |||||
| Floor stand : 93 kg / 204.85 lb | ||||||
相關產品
CL-215-C II
21.5” 現金收款自助服務機

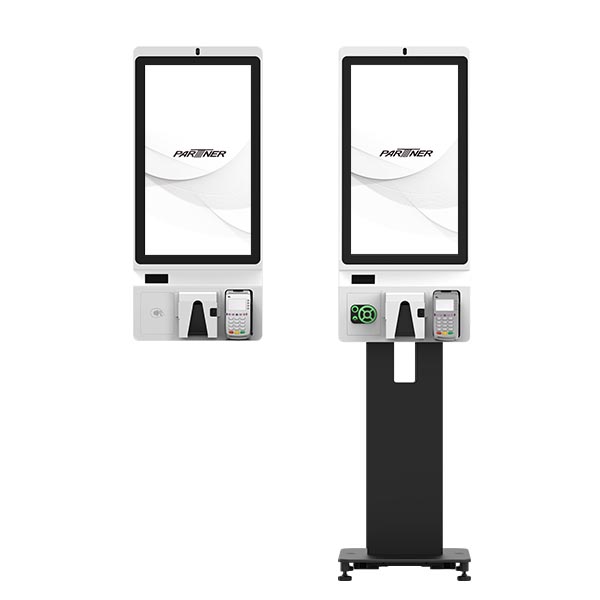

K27 II
智能自助結帳點餐機
AD-215-S
21.5” 自助結帳機
AD-156-S
15.6” 自助結帳機

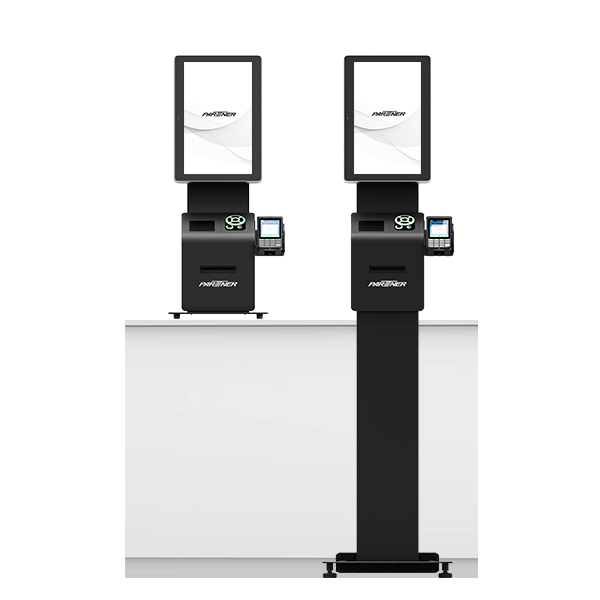

Alfred AD-156
自助服務 Kiosk

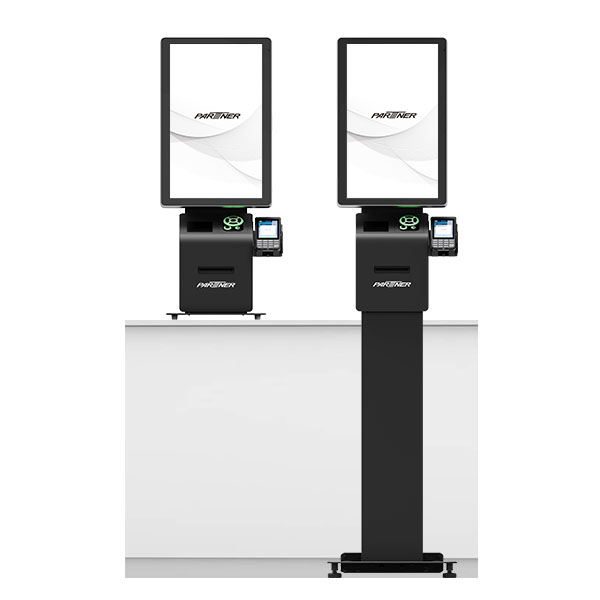

Alfred AD-215
