Open Frame

Partner Tech's open frame solutions include 15.6" to 55" touchscreen to meet your needs. Variety choices of processors and peripherals to meet your business requirements.

SHARE



Everything you need to build your touch solutions, we offer!




Variety

Partner Tech’s open frame solutions include 15.6” to 55” touchscreen to meet your needs. Variety choices of processors and peripherals to meet your business requirements.



*All touchscreen, motherboards and peripherals have passed the compatibility test.





Full HD Display

10-Point Multi-Touch

Features in FHD (1920x1080) and above open frame displays, it is an ideal solution for transactional shop windows, education, retail, F&B, and in-store communications.



PCAP touch technology with 10 points ensures seamless and accurate touch response. It can be installed in landscape, and face-up orientation for maximum flexibility and accessibility.

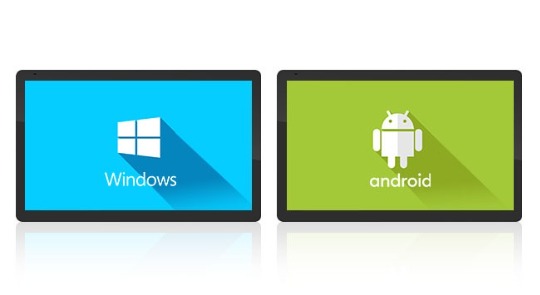

Windows or Android

Partner Tech’s open frame (panel PC) solutions are available for Windows and Android.

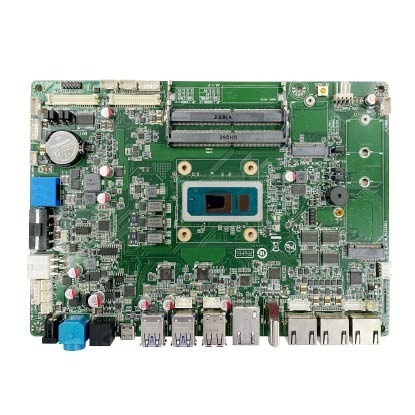

Upgrade Your Systems with Quality Mainboards!



Wide Selection Mainboards

Partner Tech’s Open Frame Touch Panel PC is built on the latest technology that supports new, more demanding applications and databases. Offers a wide selection of processors, including the latest Intel Alder Lake, Tiger Lake, Elkhart Lake, Kaby Lake and Rockchip RK3399, ensure high speed data processing and responsiveness in all situations.


Built to Last

Partner Tech’s Mainboard is held to the highest industrial standards, including performing all required international test for safety and conformity. As a result, Partner Tech can make the following product longevity and quality guarantees.



  • 60,000 hours of MTBF (Mean Time Between Failure)
  • Product warranty up to 5 years
  • Parts availability of 7 years


Optional Peripherals

  • Fixed Mount Scanner

    • Superior decoding performance
       including 1D and 2D
    • Effortless scanning from mobile
      phone screen
  • Info Card OCR

    • Second Quick Scan
    • Capable of scanning ID and
      Passports  ..............................................
  • Thermal Printer

    • Multiple interfaces
    • High print speed 250mm/sec

  •
  •

    BOX PC

    • Intel® Elkhart Lake processor
    • Intel® Tiger Lake processor
    • Fanless Design
    • Durable die-cast aluminum casing
  •


Interested in Learning More about Partner Tech Products?

                                                         Contact us now and we'll be in touch shortly.


Item 156-400-NO 21-500-NO 24-550-NO 27-300-NO 32-400-NO 43-500-NO 55-500-NO
Size 15.6" 21.5" 23.8" 27" 31.5" 43" 55"
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Resolution 1920 X 1080 1920 X 1080 1920 X 1080 1920 X 1080 1920 X 1080 1920 X 1080 3840 X 2160
Brightness 400 nits 500 nits 550 nits 300 nits 400 nits 500 nits 500 nits
Frame Rate 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz
Uniformity 80%(5P) 75%(9P) 80%(9P) 80%(5P) 72%(9P) 70%(9P) 75%(9P)
Touch PCAP touch PCAP touch PCAP touch PCAP touch PCAP touch IR touch IR touch
I/O Interface 1 x HDMI 2.0 1 x HDMI 2.0 1 x HDMI 2.0 1 x HDMI 2.0 1 x HDMI 2.0 1 x HDMI 2.0 1 x HDMI 2.0
1 x USB for PCAP 1 x USB for PCAP 1 x USB for PCAP 1 x USB for PCAP 1 x USB for PCAP 1 x USB for PCAP 1 x USB for PCAP
1 x VGA 1 x VGA 1 x VGA 1 x VGA 1 x VGA 1 x VGA 1 x VGA
1 x OSD (7 key) 1 x OSD (7 key) 1 x OSD (7 key) 1 x OSD (7 key) 1 x OSD (7 key) 1 x OSD (7 key) 1 x OSD (7 key)
1 x DP1.2 1 x DP1.2 1 x DP1.2 1 x DP1.2 1 x DP1.2 1 x DP1.2 1 x DP1.2
Optional  peripherals 2D barcode 2D barcode
Printer Printer
OCR OCR
5MP Camera 5MP Camera
Wi-Fi 6 Wi-Fi 6
LED Indicator LED Indicator
Hand Sanitizer Dispenser Hand Sanitizer Dispenser
Power Adaptor/ Supply AC-In 100~240V/ DC-Out 12V, 24W AC-In 100~240V/ DC-Out 12V, 60W AC-In 100~240V/ DC-Out 12V, 60W AC-In 100~240V/ DC-Out 12V, 60W AC-In 100~240V/ DC-Out 12V, 120W AC-In 100~240V/ DC-Out 3.3V~24V, 180W AC-In 100~240V/ DC-Out 3.3V~24V, 250W
AC-In 100~240V/ DC-Out 12V, 90W (System) AC-In 100~240V/ DC-Out 12V, 90W (System) AC-In 100~240V/ DC-Out 12V, 90W (System) AC-In 100~240V/ DC-Out 12V, 90W (System) AC-In 100~240V/ DC-Out 12V, 90W (System) AC-In 100~240V/ DC-Out 12V, 90W (System) AC-In 100~240V/ DC-Out 12V, 90W (System)
Reliability System Operating Temperature: 32~104°F/ 0~40°C System Operating Temperature: 32~104°F/ 0~40°C
System Humidity: 15% ~ 80% System Humidity: 15% ~ 80%
Storage Temperature: -4~140°F/ -20~60°C Storage Temperature: -4~140°F/ -20~60°C
Dimensions (W x H x D) 371.6 x 229.7 x 31.51 mm 520.4 x 327.4 x 48.20 mm 573.4 x 352.46 x 51.2 mm 636.77 x 397.66 x 52.50 mm 744.6 x 447.0 x 59.55 mm 971.48 x 567.58 x 73.00 mm 1262.4 x 733.00 x 86.4 mm
14.63 x 9.04 x 1.24 in 20.49 x 12.89 x 1.90 in 22.57 x 13.88 x 2.02 in 25.07 x 15.66 x 2.06 in 29.31 x 17.60 x 2.34 in 38.24 x 22.34 x 2.87 in 49.68 x 28.85 x 3.4 in
Weight 3kgs/ 6.61 lbs 5kgs/ 11.02 lbs 5.5kgs/ 12.12 lbs 6.5kgs/ 14.33 lbs 8kgs/  17.64 lbs 10 kgs/ 22.04 lbs 15kgs/33.07 lbs
