HomeKDS A7
Kitchen Display System
Purpose-built touch screen computers for use in commercial kitchen environments.
SHARE
OVERVIEW

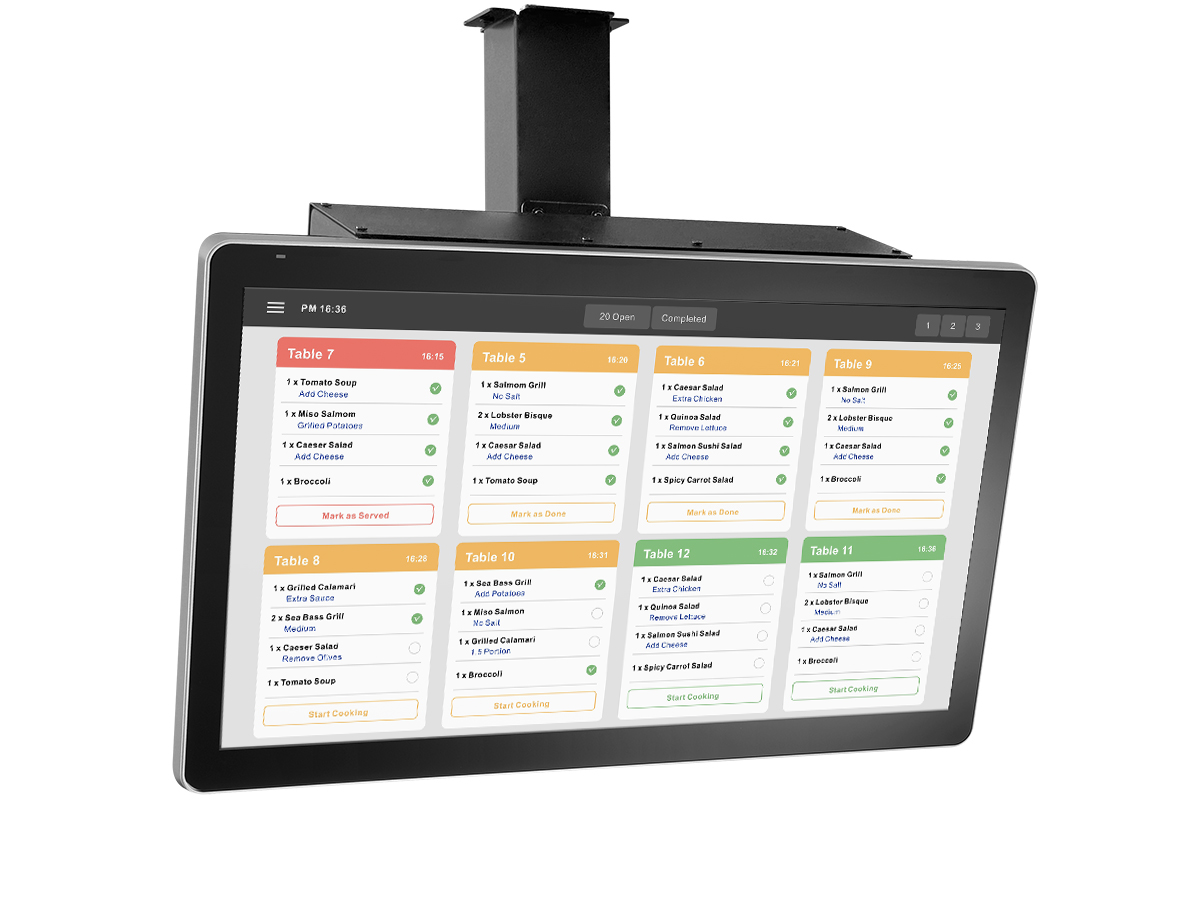

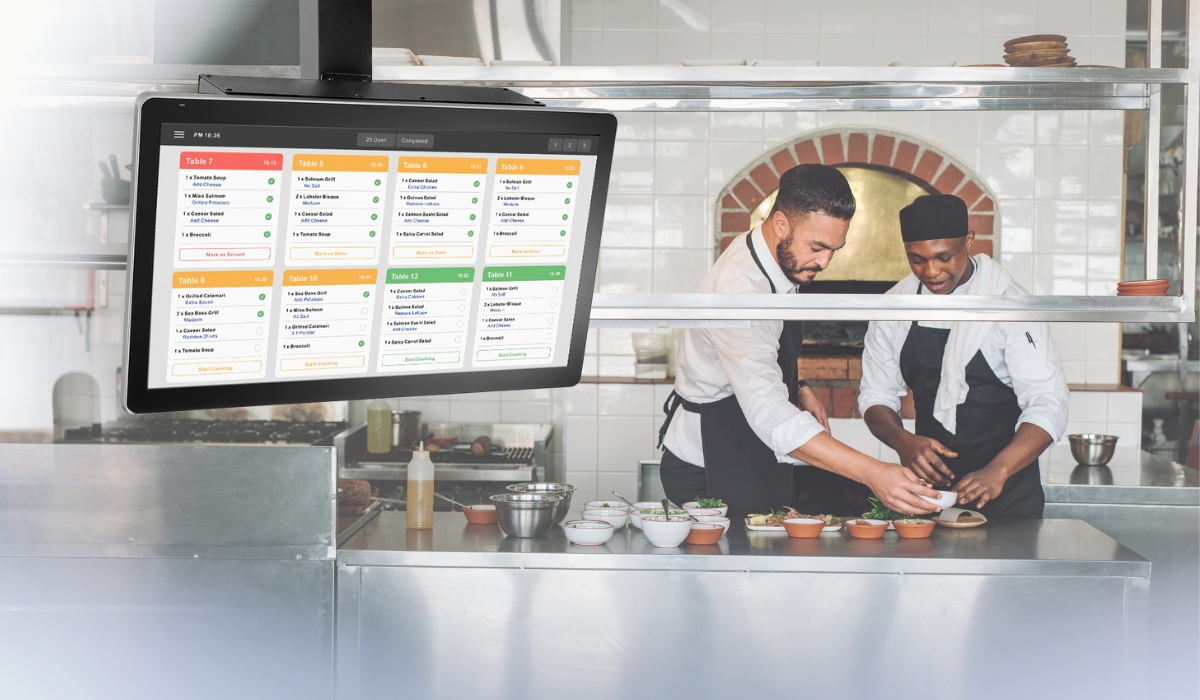

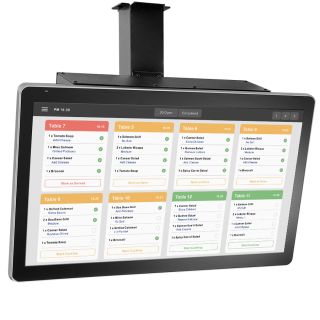

Take Control with Restaurant-Grade Kitchen Display
Ditch the printer and paper clutter. The KDS A7 is a next-generation kitchen touch display system that replaces outdated order management methods, eliminating consumable costs and enhancing communication between front-of-house and kitchen staff with real-time, digital updates.

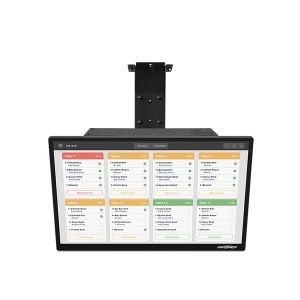

Featuring a 21.5-inch Full HD touchscreen, the KDS A7 offers a larger viewing area for busy kitchens. Designed for commercial use, it’s rugged, IP56-rated, and vapor-proof—built to withstand the heat, humidity, and intensity of demanding kitchen environments.
When integrated with your POS or ordering software, the KDS A7 streamlines operations, reduces errors, and speeds up order fulfillment—delivering a more efficient and accurate kitchen workflow.
Featuring a 21.5-inch Full HD touchscreen, the KDS A7 offers a larger viewing area for busy kitchens. Designed for commercial use, it’s rugged, IP56-rated, and vapor-proof—built to withstand the heat, humidity, and intensity of demanding kitchen environments.
When integrated with your POS or ordering software, the KDS A7 streamlines operations, reduces errors, and speeds up order fulfillment—delivering a more efficient and accurate kitchen workflow.
Rugged and Vapor Proof for Demanding Kitchen Environments

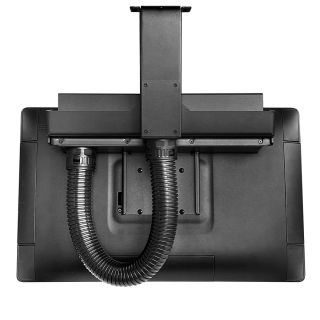

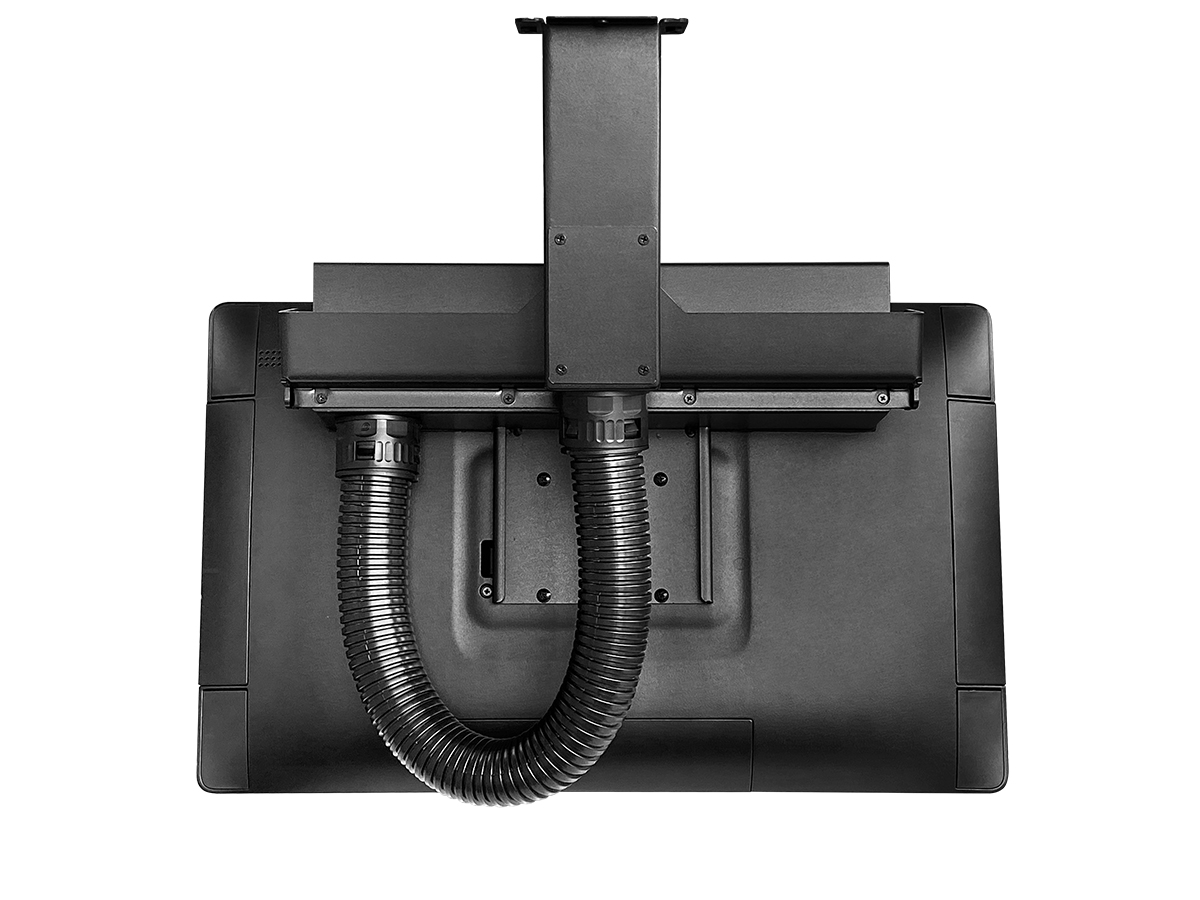

The KDS A7 is built on durable, restaurant-grade hardware engineered for long life, low total cost of ownership (TCO), and consistent performance. Its fanless design enhances reliability by reducing moving parts, while the unit's IP54 rating (with IP65-rated front panel) ensures protection against heat, humidity, grease, dust, and splashes—everything a busy kitchen throws at it. All connectors are safely enclosed behind vapor-proof covers and cables. are protected by a smart tube system to prevent damage and extend system longevity.

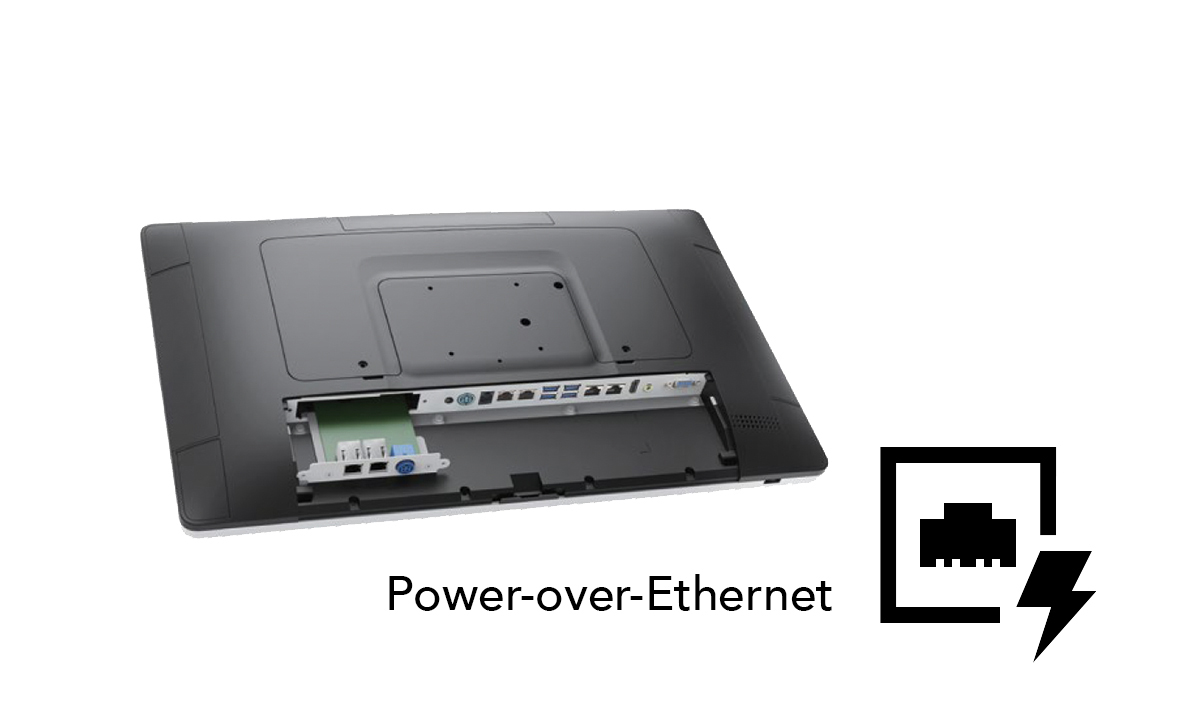

Fewer Cables with Support for PoE

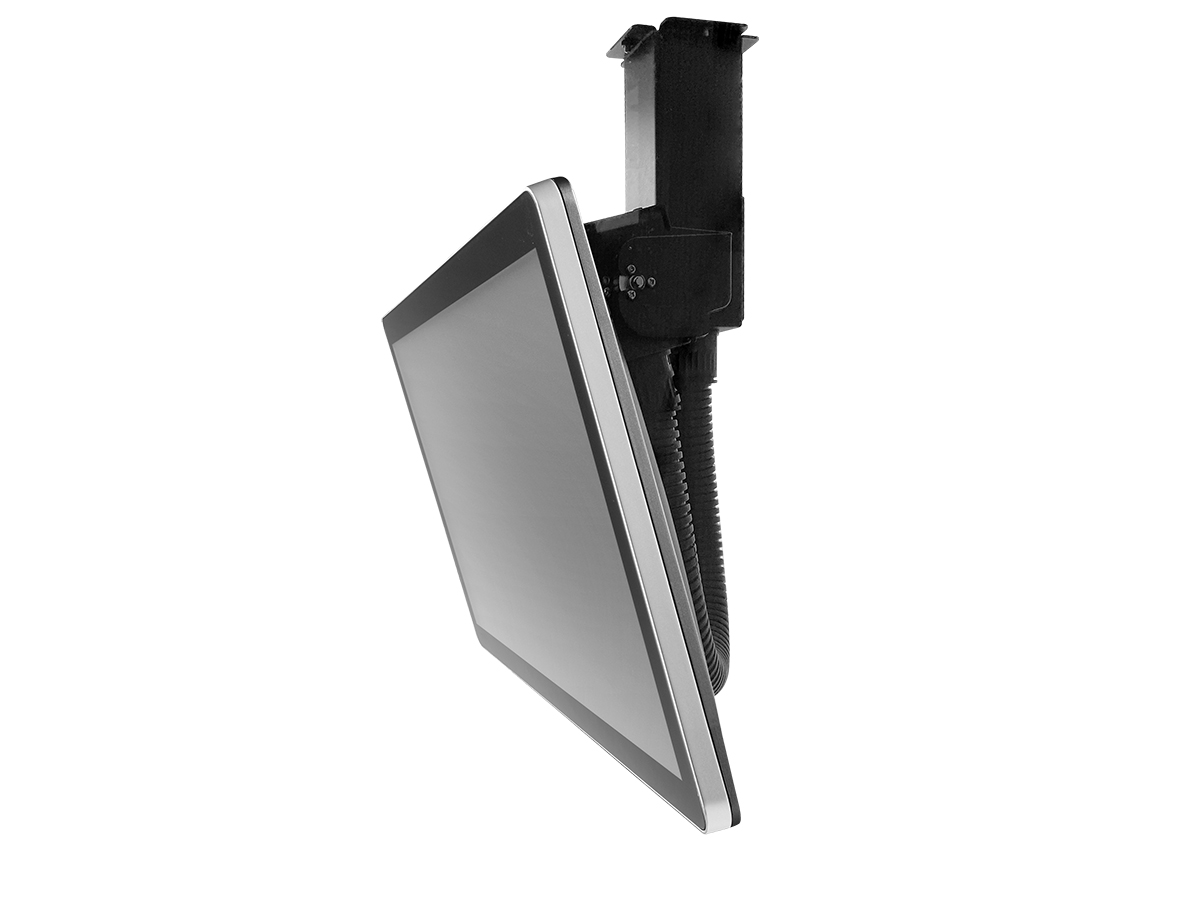

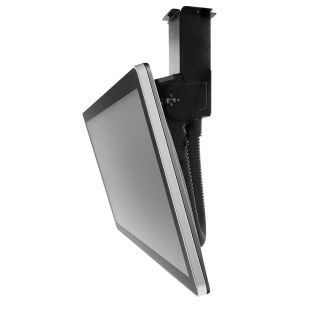

Kitchen space is often at a premium—but the KDS A7 is compact and engineered for maximum installation flexibility. With VESA compatibility, it can be mounted on a pole, wall, or even suspended from the ceiling, making it easy to adapt to a wide range of kitchen layouts.
As an all-in-one unit with an integrated PC and touchscreen, the KDS A7 minimizes cabling and simplifies deployment. It also supports up to three connected displays, reducing complexity and lowering total system costs.
To further streamline installation, Partner Tech offers an optional Power over Ethernet (PoE) kit—allowing the KDS to receive both power and data through a single Ethernet cable, removing the need for a nearby power outlet.
Key Features
- 21.5" touch screen display
- High performance Intel processor and fanless design
- Entire device IP54-rated, front panel IP65-rated
- Vapor proof I/O cover and protective cable tubing
- VESA compatible for ceiling, pole and wall mount
- High speed M.2 PCIe SSD
- PoE Ethernet kit (option)
- Available with Microsoft Windows 10/11, Android, or Linux Ubuntu 22.04
| Item | A7-1-AL | A7-1-E | A7-1-Android |
| Size | 21.5" | ||
| Aspect Ratio | 16:9 | ||
| Resolution | 1920 x 1080 | ||
| Brightness | 300 nits | 250 nits | |
| CPU | Alder Lake-P Intel® Core™ i3-1215U Intel® Core™ i5-1245U, vPro |
Elkhart Lake Intel® Celeron® J6412 |
ARM Rockchip RK3399 |
| I/O Ports | 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in setting (COM1, COM2) | |
| 1 x Intel LAN (IEEE 802.3 10/100/1000 Mbps) | 1 x LAN (IEEE 802.3 10/100/1000 Mbps)2 x RJ45, IEEE 802.3 10/100/1000 Mbps Ethernet | ||
| 1 x DC +12V out | |||
| 4 x USB 3.2 + 2 x USB 2.0 | 3 x USB 3.2 + 3 x USB 2.0 | 1 x USB 3.0 (OTG) + 5 x USB 2.0 | |
| 1 x DC + 12V input | |||
| 1 x audio (1 x line-out) | |||
| 1 x HDMI | |||
| 1 x Type-C (data transfer + display) | 1 x micro SD card | ||
| Audio Ports | 1 x audio (line out) | 1 x audio (line out) | |
| Speakers | 1 x speaker (3W) | ||
| Wireless Option | Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 | ||
| Spill & Dust Resistant | Entire unit IP54 certified, front panel IP65-rated | ||
| Operating System | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) 3. Linux Ubuntu 22.04 |
Android 11 | |
| TPM & vPro | 1. Intel vPro (i5/i7 CPU only) 2. S/W TPM 2.0 (BIOS) |
S/W TPM 2.0 (BIOS) | n/a |
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 90W / 120W | AC-In 100~240V / DC-Out 12V, 65W | |
| POE | Optional PoE kit available for A7 | ||
| Reliability | System operating temperature: 32~104°F / 0~40°C | ||
| System humidity: 15% ~ 80% | |||
| Storage temperature: -4~140°F / -20~60°C | |||
| Dimensions (W x H x D) | 20.55 x 14.8 x 7.91 in / 522 (W) x 376 (H) x 201 (D) mm | ||
| Weight | 22.04 lb / 10 kg | ||
| Mounting | Standard VESA (wall, pole, ceiling mount) | ||
| Warranty | 5 years | 3 years | |
