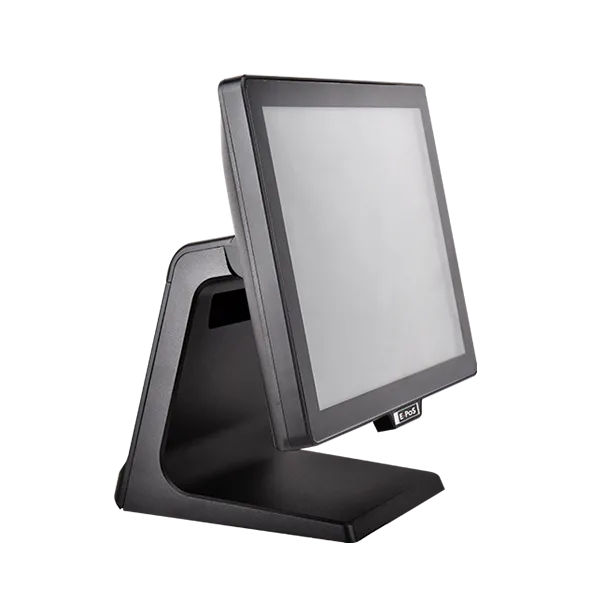

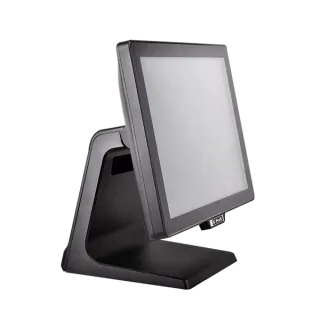

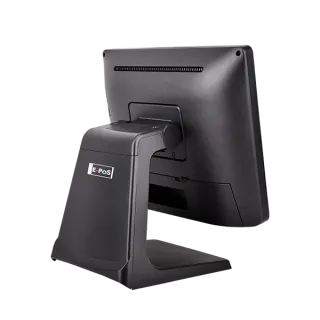

Xtreme V2 Series

The Essential POS Enabler


Key Features

  • Powerful Intel® Processor for your POS software and applications.
  • Bezel free 15" TFT-LCD, LED backlight, Projected Capacitive Touch (Multi Touch).
  • DDR3L memory supports up to 16GB
  • Storage SSD (Default) / mSATA or HDD (Optional)
  • Flexible modular design and optional customer display.
  • Convenient compact POS and 45° tilt angle.


  • Printer Stand
  • 2 x 20 VFD Display
  • 9.7", 15" 2nd displays

Interested in Partner Tech Products?

Description E-POS XTREME II V2 I5, 4G, PCAP, UK, BLACK
Display 15” Active TFT color LCD, resolution 1024 x 768, brightness 350cd/m², LED backlight
CPU Intel® Core™ i5-4210U 1.70 GHz up to 2.70 GHz, 3M Cache Intel® Core™ i5-4250U 1.30 GHz up to 2.60 GHz, 3M Cache Intel® Core™ i5-4260U 1.40 GHz up to 2.70 GHz, 3M Cache Intel® Core™ i5-4300U, 3M Cache, 1.90 GHz up to 2.90 GHz
CPU(optional) Intel® Core™ i5-6360U 2.00 GHz up to 3.10 GHz, 4M Cache
Memory 4GB DDR3L 1333/1600MHz Optional up to 16GB, 2 x Slot (Standard 4 GB RAM)
Ethernet -
LAN Reatek RTL8111H 1000M
Storage Storage SSD (Default) / mSATA or HDD (Optional)
Expansion Slot 1 * Mini PCIE(WIFI, 4G module), 1 x EXP PCIE
Operating System Windows/Linux

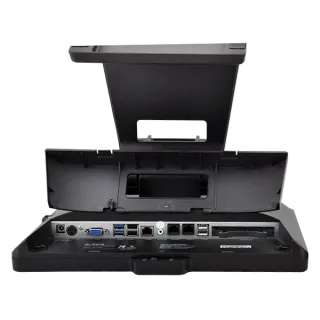

External I/O 1 * VGA 3 * USB 2.0,  2 * USB 3.0 2 * Serial (RS-232) Ports 1 * RJ45 1000M LAN 1 * Line out, 1 x Mic 1 * 12V DC IN
Durability Rating -
Display Support (optional) Supports second Display
Peripherals (optional) 3-track MSR, VFD Display 2X20 characters(COM)
VESA Mounting: Yes
