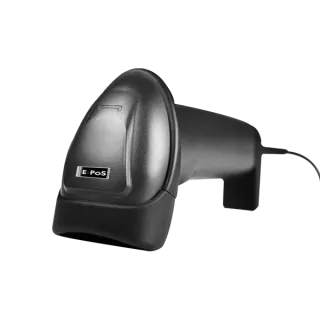

2D Handheld Barcode Scanner


Key feature

  • Low power consumption, strong performance
  • Object auto sense
  • Reads all mainstream 1D and 2D barcodes
  • Fast Mobile Phone Screen Barcode Reading
  • Built in RS232 and USB interface
Scan Type 2D Handheld Barcode Scanner
Symbology decode capability 2D/1D UPC, EAN, Code128, Code39, Code 93, Code 11, Matrix 2 of 5, MSI/Plessey, Gsi DataBar,China Postal Korean Postal, etc. PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc
Decode ranges 5mil (Code 39): 20mm-70mm13mil(Upc-a): 40mm-160mm1D Minimal Resolution: 4mil
Safety Spec National secondary laser safely standards
Interface RS232, USB
Drop Resistance -
Sealing -
Motion Tolerance -
Battery -
Input Voltage 5V DC
Current 80mA
Dimensions H × W × D 170mm x 95mm x 70mm
