HomeFlorence F5
Modular All-in-One POS
Florence F5 is a next-generation modular POS platform designed for modern retail. Its innovative modular architecture enables flexible deployment, simplified maintenance, and independent upgrades to reduce total cost of ownership.
SHARE
OVERVIEW
Modular All-in-One POS—
A Smarter Way to Build POS

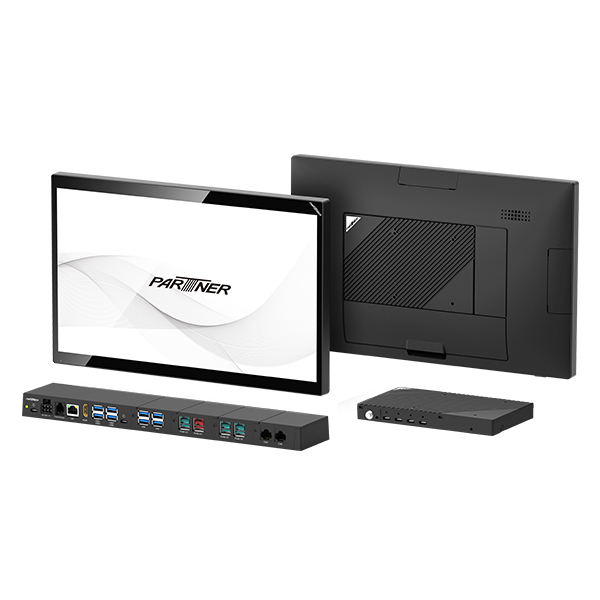

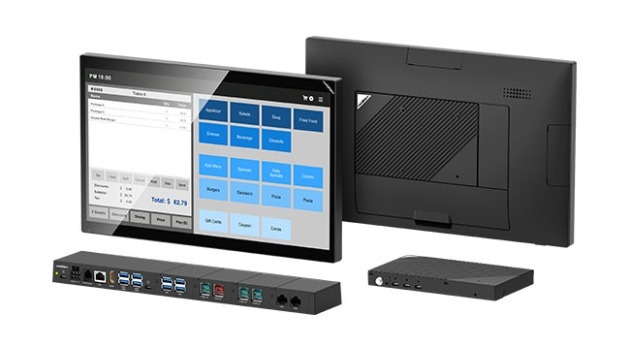

Unlike conventional all-in-one POS systems, Florence separates the touch display, Box PC, and Brick Hub into independent modules. Upgrade, replace, or expand only what you need for greater flexibility and easier maintenance.Adaptable to Every Retail Environment

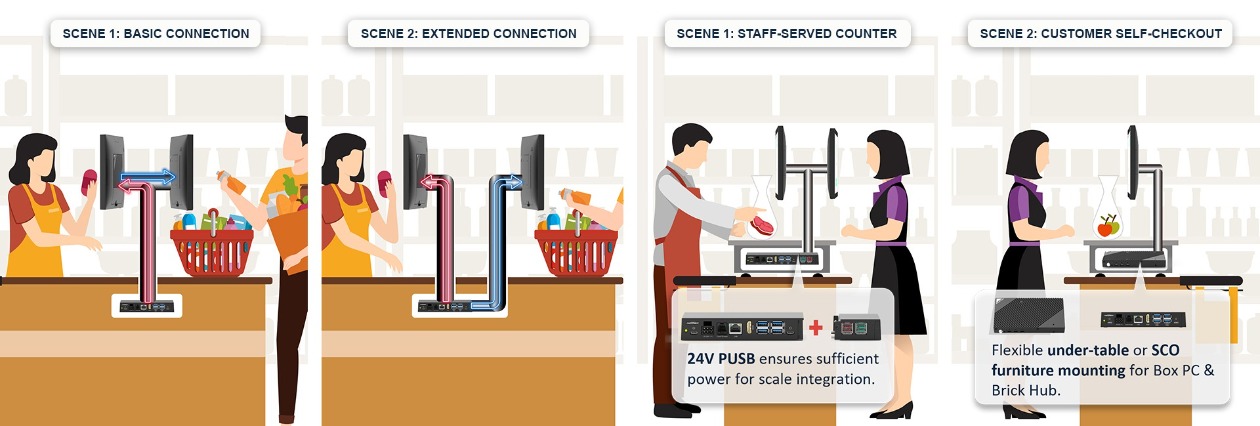

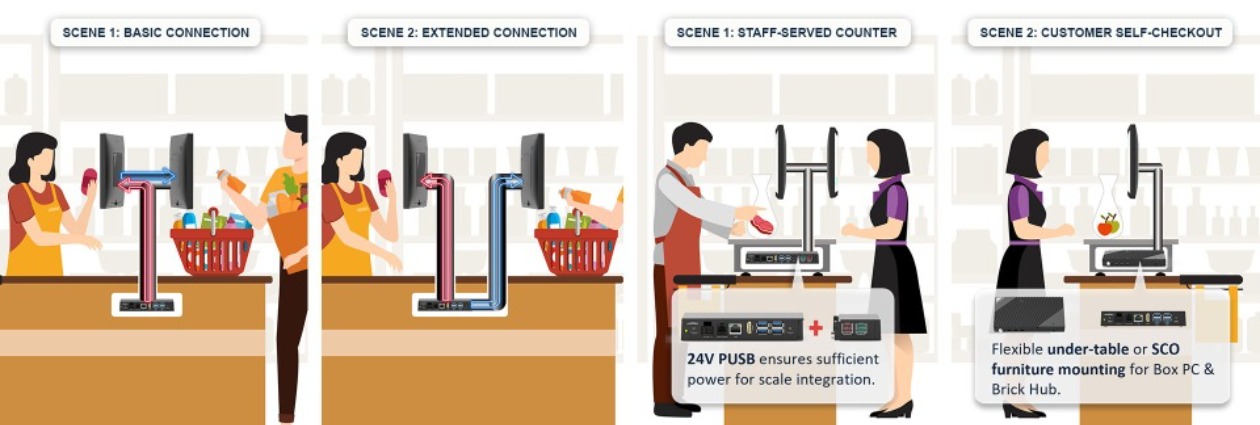

Designed for traditional POS, self-checkout, and retail scale applications, Florence F5 delivers one unified platform for diverse retail deployments.

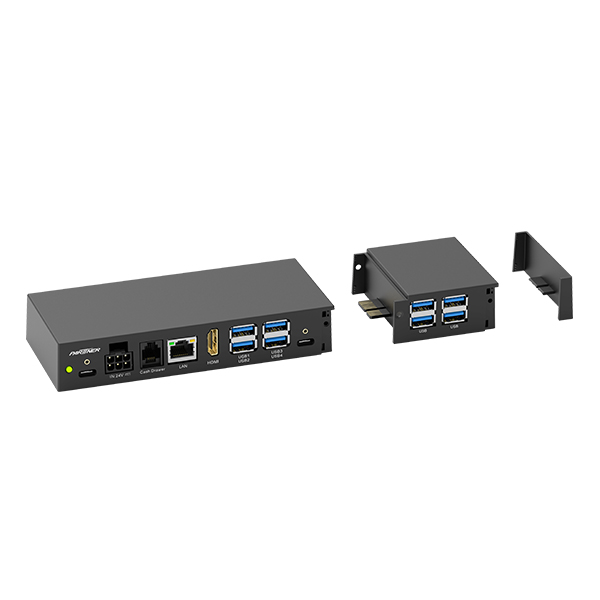

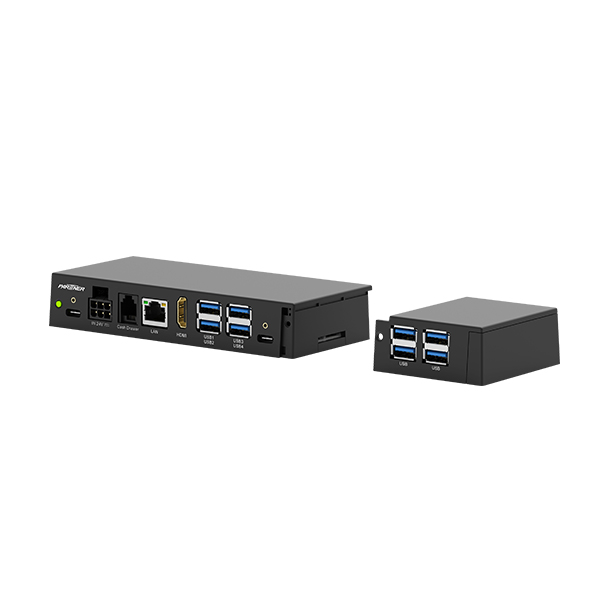

Brick Hub Modularity—
Right Ports. Right Place.

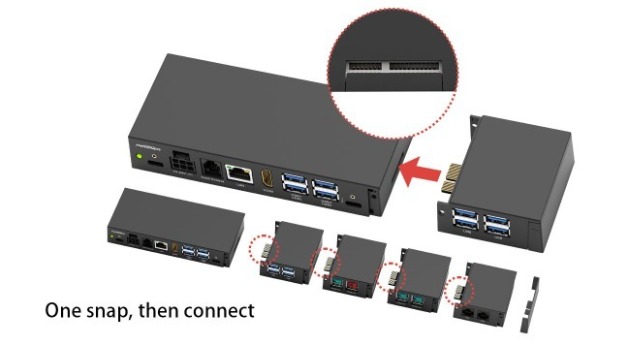

Start with the essential interfaces and expand only when needed. The modular Brick Hub supports both legacy and modern peripherals, making deployment more flexible and future-ready.
Independent Life Cycles— Lower TCO. Longer Life.
Upgrade the display, Box PC, or I/O modules independently instead of replacing the entire system, reducing maintenance costs and extending product lifecycle.
Built for Smarter Operation
-
Patented Technologies

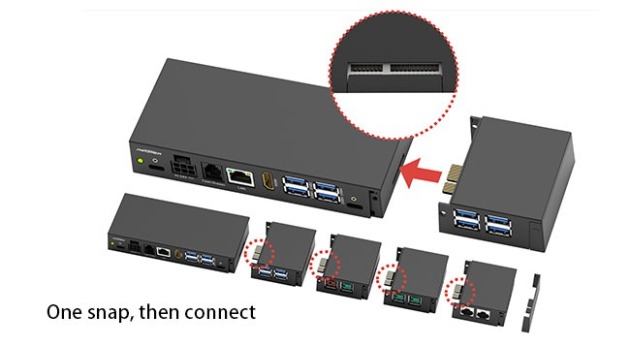

Patented innovations—
including the snap-on Brick Hub and
single-key synchronization— simplify installation, maintenance, and future expansion. -
Reliable Performance
Powered by the Intel® Alder Lake-N N97 processor, Florence F5 delivers responsive performance and energy-efficient computing for demanding retail environments. -
One-Cable Connection
A full-function USB Type-C connection delivers power, display, and touch through a single cable, reducing cable clutter and simplifying installation
Key Features
- 3 Independent Modules, 1 Unified System
- 15.6" FHD PCAP Touch Display

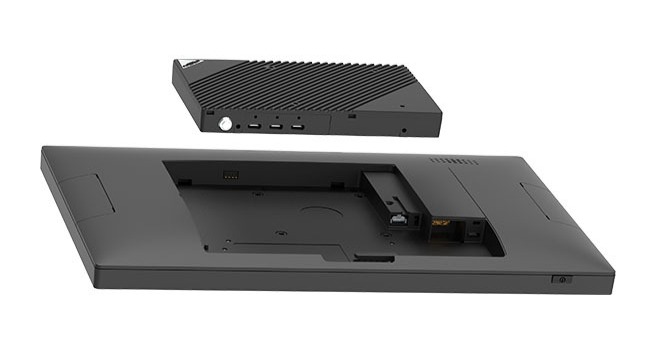

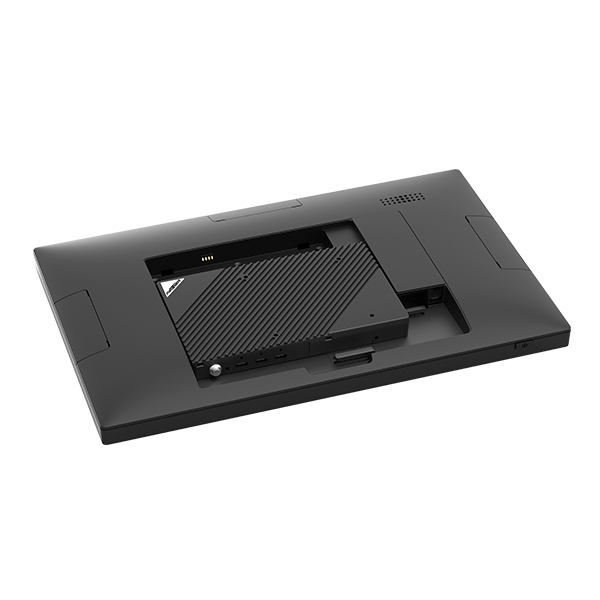

- Detachable BOX PC with Intel CPU
- Modular Brick Hub to start basic and expand with options
- Mix and Match Modules to fit any retail touch point
Interested in Partner Tech Products?

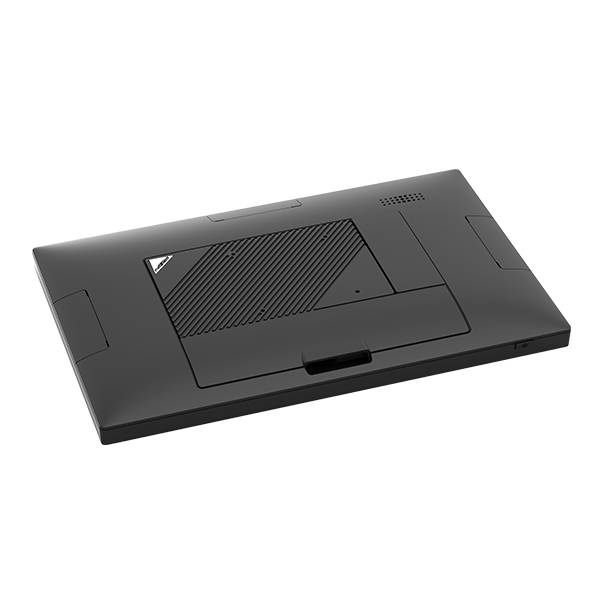

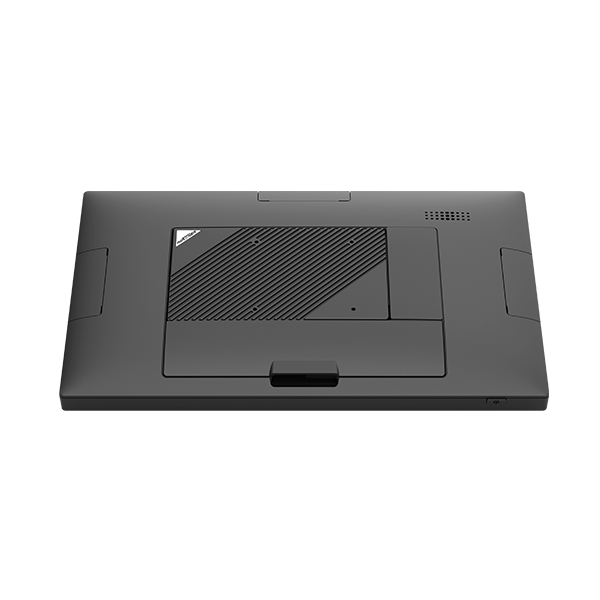

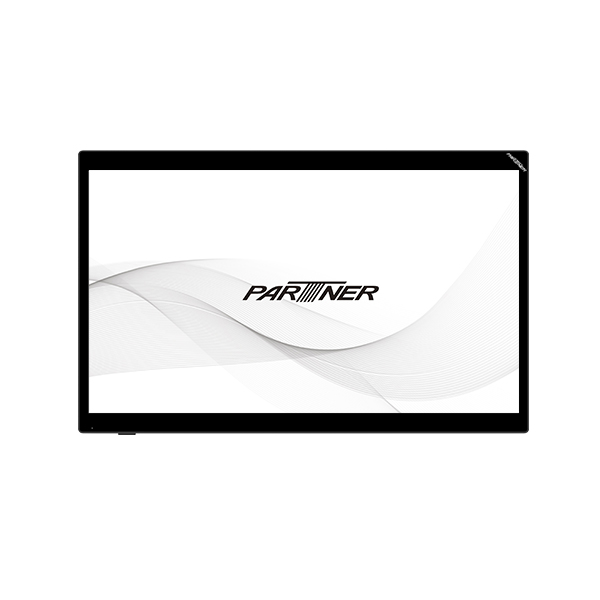

| Florence Touch Display | |
|---|---|
| Display Size | 15.6" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Brightness | 350 nits |
| Touch | PCAP with Anti-Glare |
| External Connector | 1 x Type-C (data transfer) for Touch 1 x HDMI support up to 2K@60Hz 1 x Type-C (data transfer + display + power delivery 60W) or Type-C adaptor in or Florence Box |
| Speaker | 1 x 3W Speaker |
| Cable | 1 x USB-C to USB-C 10G 1.0m 1 x HDMI 1.8m (option) 1 x Power cord (option) |
| Peripheral Options | For Florence POS MSR, fingerprint reader, RFID/NFC, i-Button, 10.1" USB 2nd display, 2D barcode scanner |

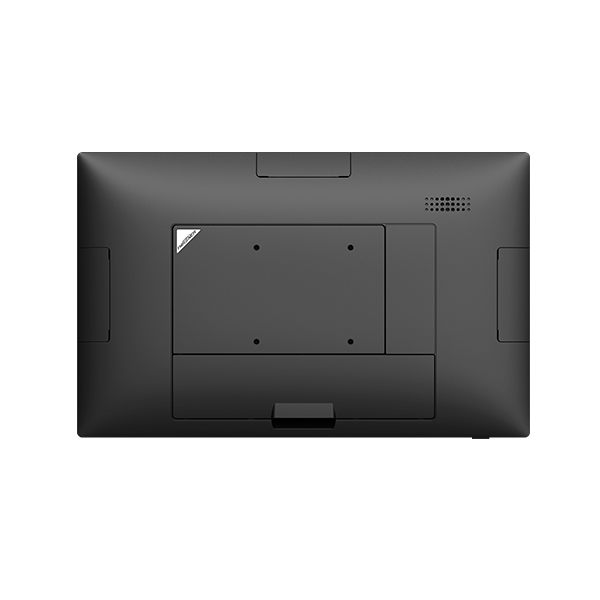

| Wall Mount Options | VESA 75 x 75mm, Screw M4 x 4mm x 4 |
| Power Adaptor Options | AC-in 100~240V, 50/60Hz, 65W |
| Reliability | System operating temperature: 0~40°C / 32~104°F System humidity: 15% ~ 80% Storage temperature: -20~60°C / -4~140°F |
| Dimensions (WxHxD) | 363.00 x 228.60 x 31.20 mm / 14.29 x 9.00 x 1.23 in |
| Weight | 1.92 kg / 4.32 lb |

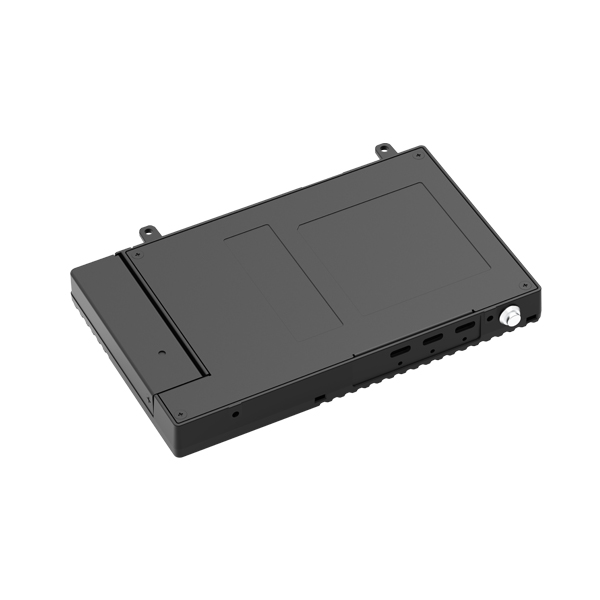

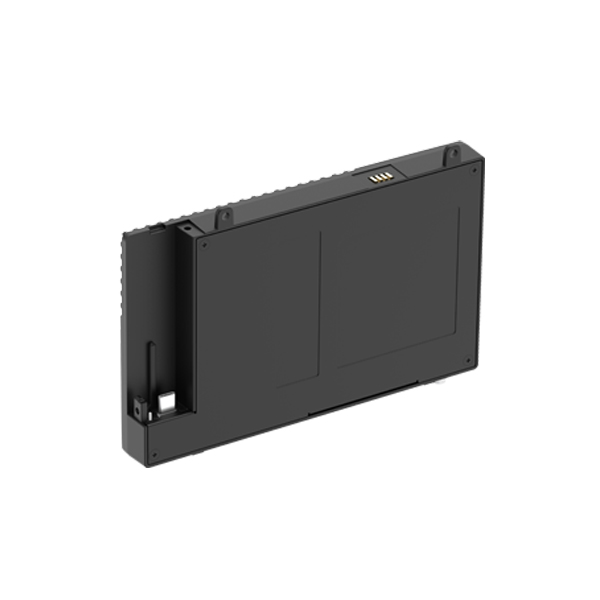

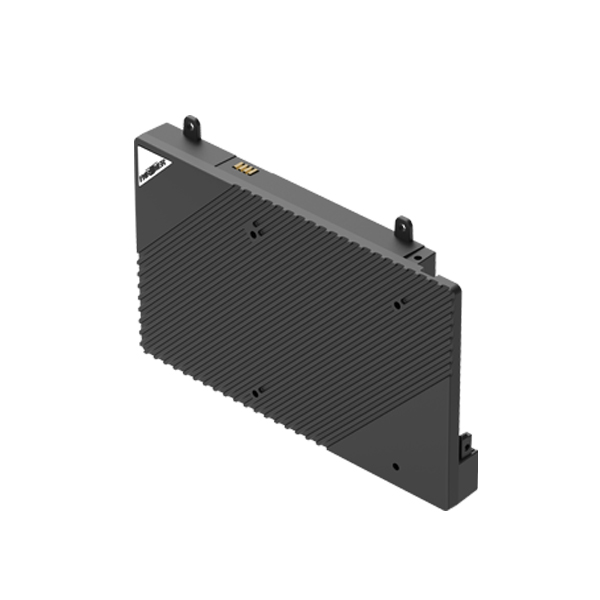

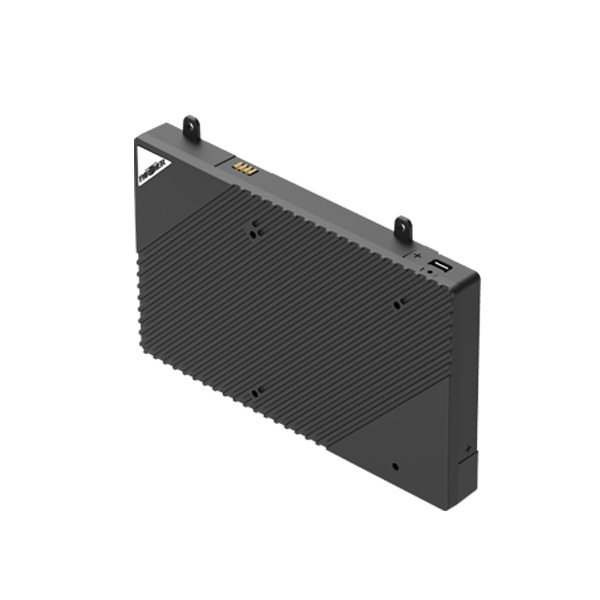

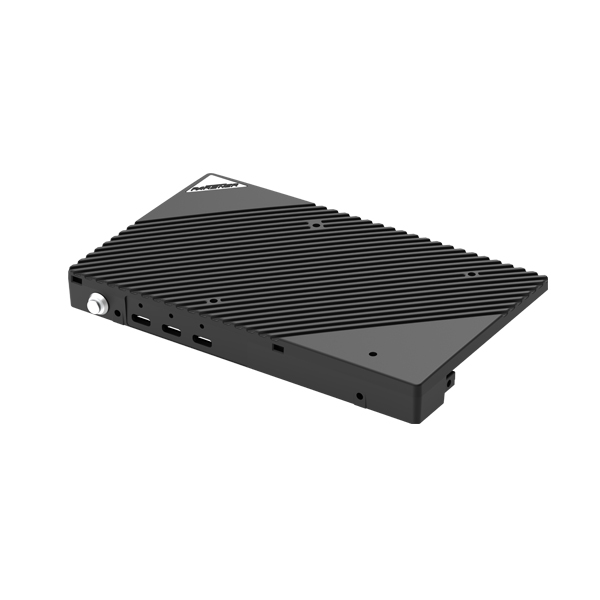

| Florence Box | |
|---|---|
| CPU | Alder Lake-N Intel® Processor N97 |
| Memory | DDR5 8GB, 16GB |
| Storage | M.2 PCIe SSD: 128G / 256G / 512G / 1TB |
| Type-C | 1 x data transfer + display + power delivery for Florence Touch Display PD out 15W(5V/3A), 60W(12V/5A) 1 x data transfer 10G + display + power delivery for Florence Brick Hub PD in 100W(20V/5A, 15V/3A, 12V/3A, 9V/3A, 5V/3A) 1 x data transfer + display + power delivery PD out 60W(12V/5A) 1 x data transfer only for USB dongle |
| Wireless Option | Wi-Fi 6E + BT 5.3 |
| Operating System | Windows 11 IoT, Linux Ubuntu 22.04 |
| TPM | S/W TPM 2.0 |
| Power Adaptor Options | AC-In 100~240V, 50/60Hz, 65W |
| Reliability | System operating temperature: 0~40°C / 32~104°F System humidity: 15% ~ 80% Storage temperature: -20~60°C / -4~140°F |
| Cable | 1 x USB-C to USB-C 10G 1.0m (option) 1 x Power cord (option) |
| Wall Mount Options | VESA 75 x 75mm, Screw M4 x 4mm x 4 |
| Dimensions (WxHxD) | 168.70 x 103 x 19.22 mm / 6.64 x 4.06 x 0.76 in |
| Weight | 0.49 kg / 1.08 lb |
| Florence Brick Hub | |
|---|---|

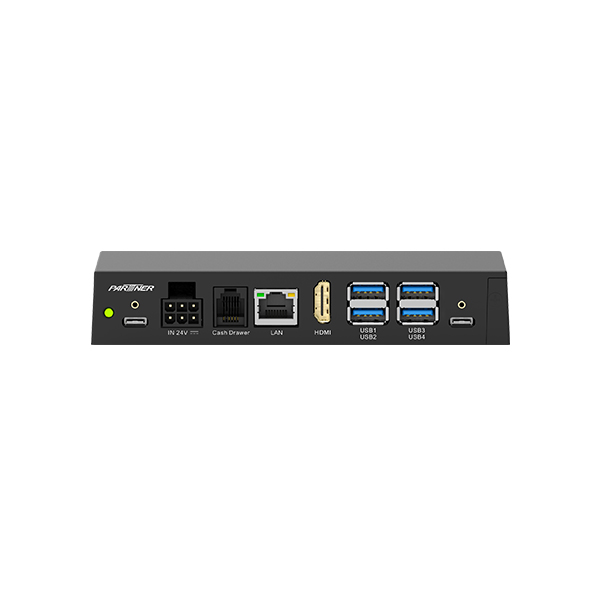

| Main Brick Hub | 1 x Power LED 1 x Type-C (data transfer 10G / display / power delivery 100W) 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting 1 x LAN (IEEE 802.3 10/100/1000 Mbps) 1 x HDMI (Support FHD) 4 x USB 3.2 1 x Type-C (data transfer / display)(Support FHD) |

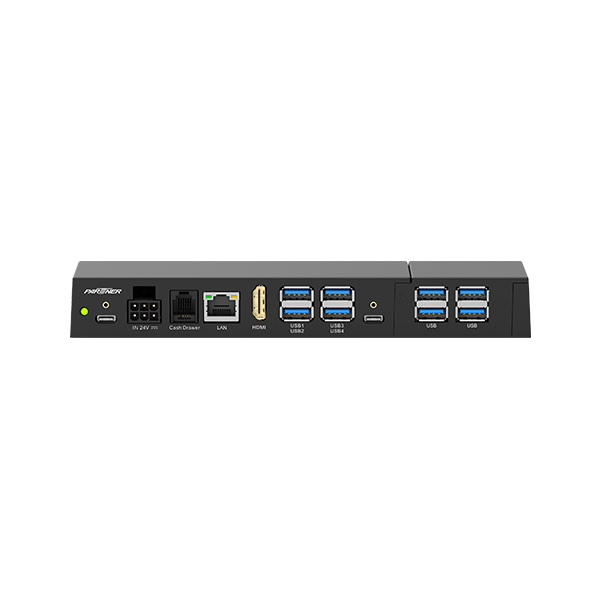

| Option Brick Hub | Option 1: 4 x USB3.0 (USB-A) Option 2: 1 x Power USB 24V + 1 x Power USB 12V Option 3: 2 x Power USB 12V Option 4: 2 x RS232 (RJ45) with COM cable Note: Option 1 to 4 must be assembled in order. |
| Power Adaptor Options | AC-In 100~240V / DC-Out 24V, 5A, 120W Optional: For Brick Hub Option 3 (Power USB 24V) DC-Out 24V/10A, 240W |
| Reliability | System operating temperature: 0~40°C / 32~104°F System humidity: 15% ~ 80% Storage temperature: -20~60°C / -4~140°F |
| Cable | 1 x USB-C to USB-C lockable 10G 1m 1 x Power cord (option) |
| Dimensions (WxHxD) | Main Brick: 150.93 x 67.6 x 27.7 mm / 5.94 x 2.66 x 1.09 in Option Brick: 52.2 x 67.6 x 27.7 mm / 2.06 x 2.66 x 1.09 in |
| Weight | Main Brick: 0.16 kg / 0.35 lb Option Brick: 0.06 kg / 0.13 lb |
