HomeSP-550
A modern and aesthetic POS system is critical to branding and overall customer experience provided at the checkout, but it must also have the power and functionality to allow you to serve customers efficiently.

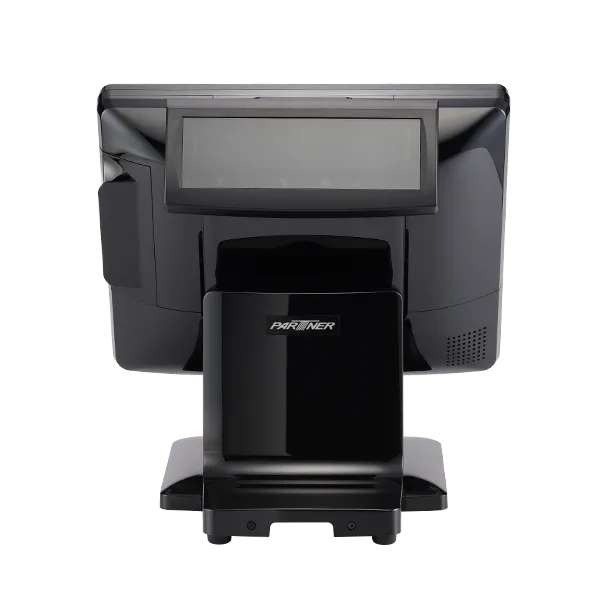

You can have it all with Partner Tech’s SP-550 touch POS terminal.
You can have it all with Partner Tech’s SP-550 touch POS terminal.
SHARE
OVERVIEW
Key Features
- Bezelfree 15" TFT LCD with LED backlight
- Projected Capacitive Touch (PCT)
- Supports up to 8GB RAM
- Wide range of interfaces, incl. USB 3.0
- 2nd monitor support
- Spill and dust resistant front panel, IP65
Optional Features
- Mini PCI-e, e.g. to support WiFi module
- Customer display (2x20 VFD or 7")
- 2nd monitor support (11.6“ or 15“)
- 3-track MSR
- RFID reader
- Bio reader
- IC card reader
- i-Button
|
Item |
SP-550 |
| CPU Type | Intel® Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache |
| LCD | 15" Active TFT color LCD, 350 nits resolution 1024 x 768 |
| Touch | Projected Capacitive Touch |
| Memory | 2G 204pin DDR3L-1333, SO-DIMM x 2 Max Support up to 8GB |
| LAN | 10/100/1000 Gb Ethernet x 1 |
| Storage | 2.5" type SATA HDD x 1 |
| I/O Interface |
4 * COM ports [COM1~4 on rear I/O ( powered with DC +5/+12V, COM1~2 by BIOS selection; COM3~4 by jumper jumper setting)] 1 * DB-15 VGA port 1 * RJ11 port supports 2 cash drawer(DC+24v) 1 * RJ-45 LAN port with activity and link LEDs 1 * PS/2 KB 1 * DC+12v out Jack 6 * USB (5 * USB 2.0 + 1 * USB 3.0) 1 * DC +12V input power-jack |
| Expansion Options | 1 * Mini PCI-e, Support Wireless LAN module |
| Optional Peripherals |
3 tracks magnetic reader Integrated 2nd display VFD (2 x 20) or 7" LCD 2nd display 11.6” or 15” LCD |
| Operation System |
Windows 7, POS Ready7, Windows 8.1, Industry Pro Retail 8.1, Windows 10, Linux (Ubuntu) |
| Power Supply | AC100~240V/DC+12V, 90 watt power adaptor |
| Dimensions | Physical:360mm (W) x233mm (D) x 323mm (H) |
| Operating Temp | 0°C ~ +40°C |
| Storage Temperature | -20°C ~ +60°C |
| Humidity | 15%~80% |
