超窄邊框螢幕
7 毫米的超窄邊框。 -
探索強大效能
最新的Intel 11代 Tiger Lake處理器
搭配Windows 11，能達到最快的處理速度。 -
完整連接，一應俱全
客製選配多種POS周邊和連接介面。

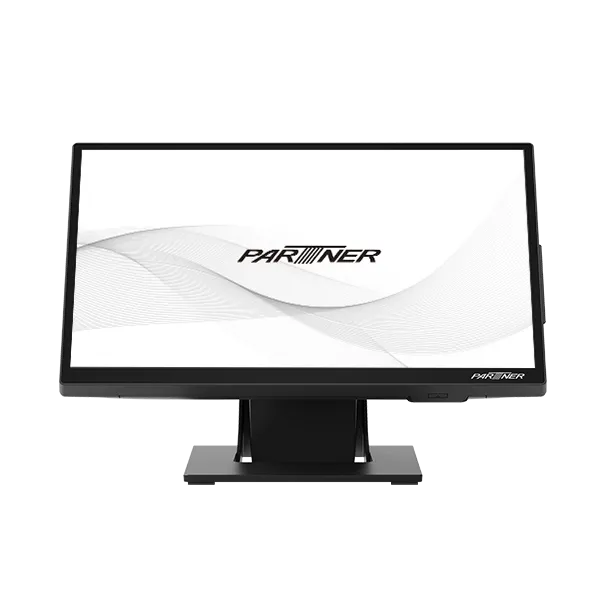

超窄邊框的時尚設計
高速、高效能的處理能力

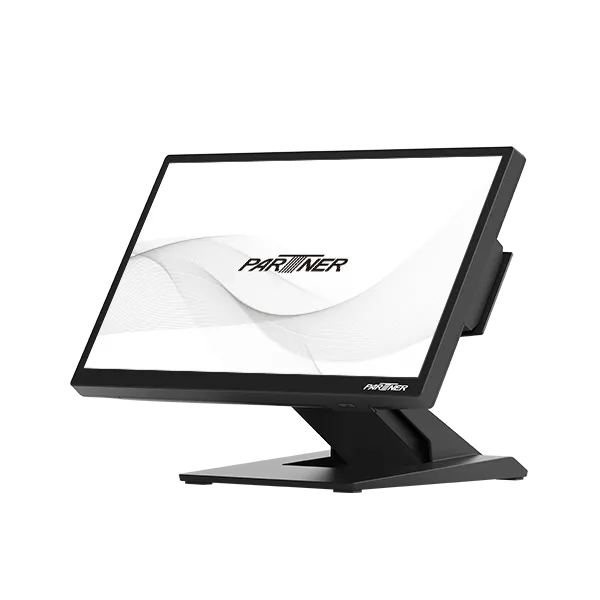

Victoria V5 支援Intel ® 11代高效能處理器，能處理各種應用程式和數據資料，包括人工智能和電腦視覺應用程式。 Tiger Lake 處理器搭配 M.2 PCIe 固態硬盤和高達 32 GB DDR4記憶體，確保 Victoria V5 有能力在未來許多年內運行數據最密集的 POS 應用程式。
專為具有多種介面的 POS 而打造
Victoria V5 具有多種接口介面選項，包括支援更強大的 Type-C USB 連接器。所有連接器均由座蓋保護，防止灰塵和污垢。 Victoria V5 更提供 EX-300 I/O 擴充盒，能擴充更多選配周邊。
客製化周邊設備
Victoria V5 搭載多種周邊設備，可讓您為 POS 配置不同的信用卡刷卡機支架、指紋掃描器、EMV掃描器、MSR、相機、錢箱、NFC/RFID 讀取器、客戶顯示器、數位顯示器、印表機和二維條碼掃描器。
滿足您所有需求的客戶端顯示器
產品特點
- Elkhart Lake/ 11代Tiger Lake UP3 CPU
- 超窄邊框的時尚設計
- 支援 Wifi 6E
- 支援 Type C
- 支援 Intel vPro for Core i5, Core i7 CPU; TPM 2.0
- 支援 Windows 11 IoT Enterprise GAC
可選配置
- 加密MSR、EMV讀卡器、指紋掃描器、NFC、iButton、相機、2D掃描器
- VFD, 10.1″, 11.6″, 15″ 客戶顯示器
- EX-300 I/O 擴充盒
對拍檔產品有興趣嗎
| Item | V5-1-T | V5-1-E |
|---|---|---|
| Size | 15.6" | 15.6" |
| Aspect Ratio | 16:9 | 16:9 |
| Resolution | 1920 x 1080 | 1920 x 1080 |
| Brightness | 250 nits | 250 nits |
| Touch | PCAP Touch | PCAP Touch |
| CPU | (Tiger Lake UP3) Intel® Core™ i3-1115G4 Intel® Core™ i5-1145G7, vPro Intel® Core™ i7-1185G7, vPro |
Intel® Celeron® J6412 (Elkhart Lake) |
| Memory | DDR4 4GB, 8GB, 16GB, 32GB | DDR4 4GB, 8GB, 16GB, 32GB |
| Storage | M.2 PCIe SSD: 128G / 256G / 512G | M.2 PCIe SSD: 128G / 256G / 512G |
| I/O Interface | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) |
| 1 x Intel LAN(IEEE 802.3 10/100/1000 Mbps) | 1 x LAN(IEEE 802.3 10/100/1000 Mbps) | |
| 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | |
| 1 x DC +12V out | 1 x DC +12V out | |
| 4 x USB 3.2 + 2 x USB 2.0 | 2 x USB 3.0 + 4 x USB 2.0 | |
| 1 x DC + 12V input | 1 x DC + 12V input | |
| 1 x audio (1 x line-out) | 1 x audio (1 x line-out) | |
| 1 x HDMI | 1 x HDMI | |
| 1 x Type-C (data transfer+ display) | 1 x Type-C (data transfer only) | |
| Speaker | 1 x speaker (3W) | 1 x speaker (3W) |
| Peripheral Options | MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box EX-300, cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) | MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box EX-300, cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) |
| Wireless Option | Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 |
Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 |
| Display Support | 3 independent displays (Main Display + HDMI + Type-C) | 2 independent displays (Main Display + HDMI) |
| Operating System | 1. Windows 11 IoT Enterprise GAC (64bit) ready | 1. Windows 11 IoT Enterprise GAC (64bit) ready |
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | |
| 3. Linux Ubuntu 22.04 | 3. Linux Ubuntu 22.04 | |
| TPM & vPro | 1. Intel vPro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) |
| 2. S/W TPM 2.0 (BIOS) | ||
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 65W | AC-In 100~240V / DC-Out 12V, 65W |
| Reliability | System operating temperature: 0~40°C/ 32~104°F | System operating temperature: 0~40°C/ 32~104°F |
| System humidity: 15% ~ 80% | System humidity: 15% ~ 80% | |
| Storage temperature: -20~60°C/-4~140°F | Storage temperature: -20~60°C/-4~140°F | |
| Dimensions (Wx Hx D) | With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in | With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in |
| Weight | With T Base: 3.7 kg / 8.16 Ib | With T Base: 3.7 kg / 8.16 Ib |
