Florence F5

模組化 All-in-One POS 系統

Florence F5 is a next-generation modular POS platform designed for modern retail. Its innovative modular architecture enables flexible deployment, simplified maintenance, and independent upgrades to reduce total cost of ownership.

了解更多

產品資訊

產品規格

模組化 All-in-One POS—

重新定義 POS 系統架構

不同於傳統 All-in-One POS 系統，Florence 將觸控顯示器、Box PC 與 Brick Hub 設計為獨立模組。可依實際需求進行升級、更換或擴充，提供更高的系統彈性，同時讓維護更加簡便。

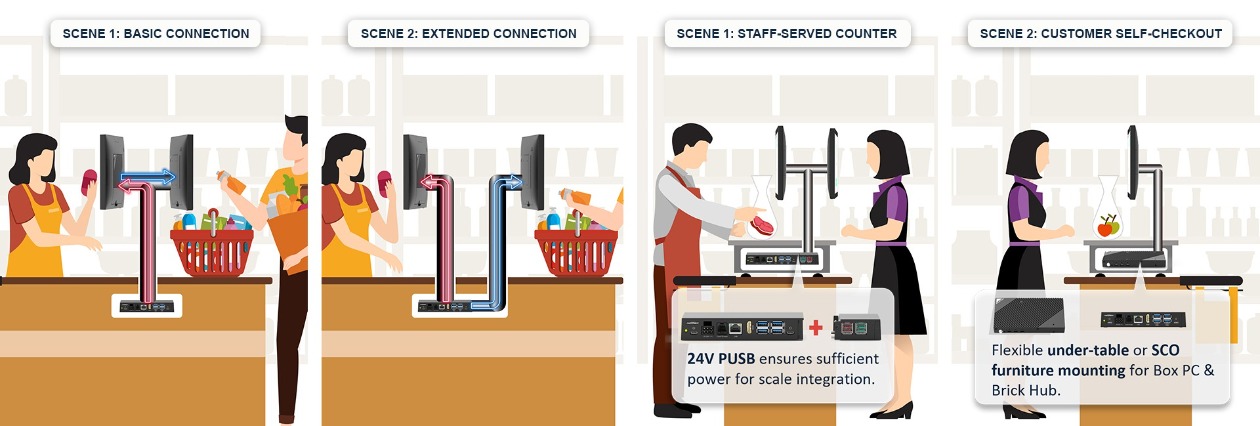

滿足多元零售環境需求

專為傳統 POS、自助結帳及零售秤應用而設計，Florence F5 以單一整合平台滿足多元零售場域的應用需求。

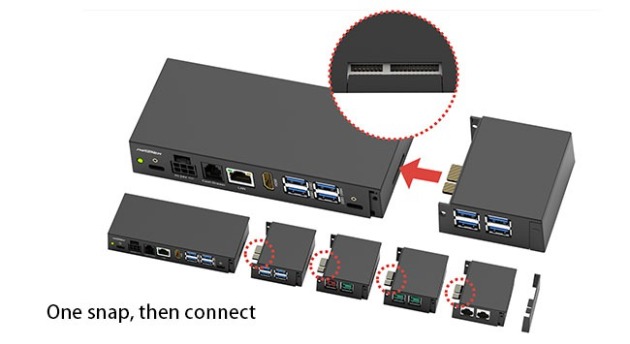

模組化 Brick Hub —
靈活配置介面，滿足部署需求

從基本介面配置開始，並可依實際需求彈性擴充。模組化 Brick Hub 同時支援傳統與新一代周邊設備，讓系統部署更具彈性，也能因應未來的擴充需求。

各模組獨立運作—

降低 TCO，延長使用週期

顯示器、Box PC 或 I/O 模組皆可獨立升級，無需更換整套系統，有效降低維護成本並延長產品生命週期。

為智慧營運而生

專利技術

多項專利創新設計，包括快拆式 Brick Hub 與單鍵同步功能，簡化安裝與維護流程，並讓未來擴充更加便利。
穩定可靠的效能

搭載 Intel® Alder Lake-N N97 處理器，Florence F5 提供快速流暢的運算效能與優異的能源效率，滿足高負載零售環境的應用需求。
一線整合連接

透過全功能 USB Type-C，一條線即可整合供電、影像與觸控功能，減少繁雜線材，簡化安裝與部署。

Key Features

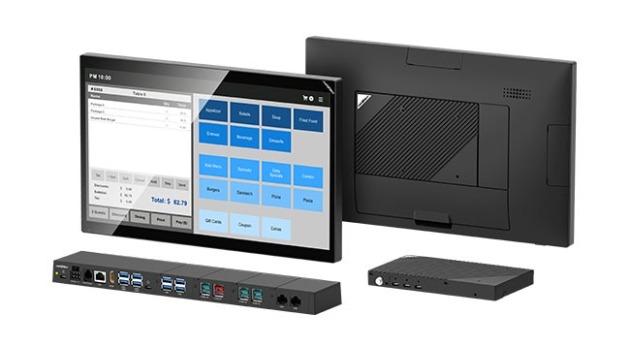

3 Independent Modules, 1 Unified System
15.6" FHD PCAP Touch Display

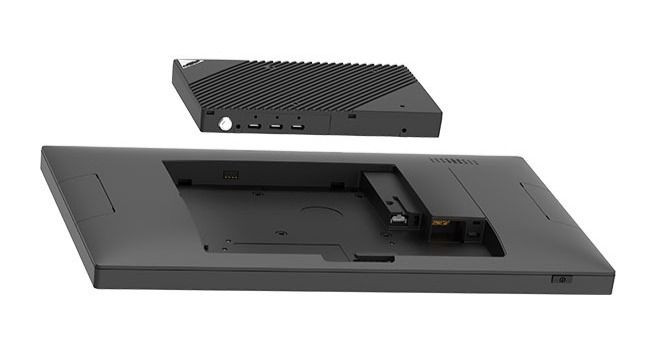

Detachable BOX PC with Intel CPU
Modular Brick Hub to start basic and expand with options
Mix and Match Modules to fit any retail touch point

對拍檔產品有興趣嗎?

聯絡我們

Florence Touch Display
Display Size	15.6"
Aspect Ratio	16:9
Resolution	1920 x 1080
Brightness	350 nits
Touch	PCAP with Anti-Glare
External Connector	1 x Type-C (data transfer) for Touch 1 x HDMI support up to 2K@60Hz 1 x Type-C (data transfer + display + power delivery 60W) or Type-C adaptor in or Florence Box
Speaker	1 x 3W Speaker
Cable	1 x USB-C to USB-C 10G 1.0m 1 x HDMI 1.8m (option) 1 x Power cord (option)
Peripheral Options	For Florence POS MSR, fingerprint reader, RFID/NFC, i-Button, 10.1" USB 2nd display, 2D barcode scanner
Wall Mount Options	VESA 75 x 75mm, Screw M4 x 4mm x 4
Power Adaptor Options	AC-in 100~240V, 50/60Hz, 65W
Reliability	System operating temperature: 0~40°C / 32~104°F System humidity: 15% ~ 80% Storage temperature: -20~60°C / -4~140°F
Dimensions (WxHxD)	363.00 x 228.60 x 31.20 mm / 14.29 x 9.00 x 1.23 in
Weight	1.92 kg / 4.32 lb

Florence Box
CPU	Alder Lake-N Intel® Processor N97
Memory	DDR5 8GB, 16GB
Storage	M.2 PCIe SSD: 128G / 256G / 512G / 1TB
Type-C	1 x data transfer + display + power delivery for Florence Touch Display PD out 15W(5V/3A), 60W(12V/5A) 1 x data transfer 10G + display + power delivery for Florence Brick Hub PD in 100W(20V/5A, 15V/3A, 12V/3A, 9V/3A, 5V/3A) 1 x data transfer + display + power delivery PD out 60W(12V/5A) 1 x data transfer only for USB dongle
Wireless Option	Wi-Fi 6E + BT 5.3
Operating System	Windows 11 IoT, Linux Ubuntu 22.04
TPM	S/W TPM 2.0, Dual BIOS (option)
Power Adaptor Options	AC-In 100~240V, 50/60Hz, 65W
Reliability	System operating temperature: 0~40°C / 32~104°F System humidity: 15% ~ 80% Storage temperature: -20~60°C / -4~140°F
Cable	1 x USB-C to USB-C 10G 1.0m (option) 1 x Power cord (option)
Wall Mount Options	VESA 75 x 75mm, Screw M4 x 4mm x 4
Dimensions (WxHxD)	168.70 x 103 x 19.22 mm / 6.64 x 4.06 x 0.76 in
Weight	0.49 kg / 1.08 lb

Florence Brick Hub
Main Brick Hub	1 x Power LED 1 x Type-C (data transfer 10G / display / power delivery 100W) 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting 1 x LAN (IEEE 802.3 10/100/1000 Mbps) 1 x HDMI (Support FHD) 4 x USB 3.2 1 x Type-C (data transfer / display)(Support FHD)
Option Brick Hub	Option 1: 4 x USB3.0 (USB-A) Option 2: 1 x Power USB 24V + 1 x Power USB 12V Option 3: 2 x Power USB 12V Option 4: 2 x RS232 (RJ45) with COM cable Note: Option 1 to 4 must be assembled in order.
Power Adaptor Options	AC-In 100~240V / DC-Out 24V, 5A, 120W Optional: For Brick Hub Option 3 (Power USB 24V) DC-Out 24V/10A, 240W
Reliability	System operating temperature: 0~40°C / 32~104°F System humidity: 15% ~ 80% Storage temperature: -20~60°C / -4~140°F
Cable	1 x USB-C to USB-C lockable 10G 1m 1 x Power cord (option)
Dimensions (WxHxD)	Main Brick: 150.93 x 67.6 x 27.7 mm / 5.94 x 2.66 x 1.09 in Option Brick: 52.2 x 67.6 x 27.7 mm / 2.06 x 2.66 x 1.09 in
Weight	Main Brick: 0.16 kg / 0.35 lb Option Brick: 0.06 kg / 0.13 lb
