A7-1-Android

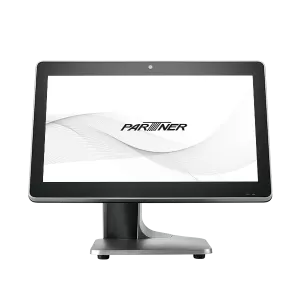

All-in-one Touch Screen POS with Android

Packed with power, Audrey touch screen POS delivers top performance in a sleek, minimalistic design, elevating the checkout experience in retail and hospitality.

SHARE


A5_1

Touch Screen POS &
A Style Icon

Audrey's thin, sleek design complements even the most esthetic store or hospitality environment and the stylish touch screen POS is available in an elegant silver/black or rose gold finish. It takes up minimal counter space and conceals all cables to keep your checkout counter clutter free.


A5_4


Touch Screen POS With Modular Design

Not only does Audrey offer multiple display sizes, but it also has a modular design and comes with a broad selection of POS peripherals and mounting options. Configure your touch screen POS with the processing power your application requires, select from a large range of peripherals and accessories, including different card readers, customer facing displays, printers and find a mounting solution that fits in your space.


Select the Color that Matches Your Interior

Available in rose gold and silver/black finish
A5_5

未命名設計 (26)


Built to Last

The durable and fanless design protects the unit from dust and debris and makes it more resistant to shocks and vibrations while providing a completely silent operation. The unit is spill proof to meet the demands in restaurants and other environments where spills easily happen. On top of all this, A7-1-Anroid is backed by a 5-year warranty.


Key Features


  • All-in-one touch screen POS with 21.5" LCD display
  • Efficient Intel Rockchip RK3399 processors handle new applications at blazing speed
  • High speed M.2 SSD for maximum performance and reliability
  • Up to 32 GB DDR4 RAM for high speed and responsiveness
  • Designed for maximum efficiency, longevity, flexibility & scalability to enhance customer experience at checkout counter.

Optional Features

  • Available for Android
  • Full HD Display
  • PS-103 printer stand with powered USB hub
  • MSR, smart card reader, fingerprint reader and RFID reader
  • Selection of customer facing displays
  • Choose between Wi-Fi or Bluetooth connectivity


Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.
Item​ A7-1-Android
Size 21.5"
Aspect Ratio 16:9
Resolution 1920 X 1080
Brightness (typical) 250 nits
Touch​ PCAP touch​
CPU​ ARM Rockchip RK3399, Dual-core Cortex-A72 + Quad-core Cortex-A53
Memory​ LPDDR4 4GB
Storage​ 32GB eMMC + 1 x Micro SD Card Slot (up to 256GB)
External I/O Interface​ 1 x USB3.0 (OTG) , 5 x USB2.0
2 x Serial ports, RS232 (RJ45) ,with RI/5V/12V selection by jumper
1 x LAN ( IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45 with LED)
1 x RJ11 port supports 2 cash drawer with 24V / 12V by jumper setting​
1 x HDMI
1 x Micro SD card
1 x Audio (1 x Line-out)
1 x DC +12V output
1 x DC +12V input
Speaker​ 1 x Speaker (3W)​
Peripherals (optional)​ Encryption-capable MSR, EMV reader, Bio reader, NFC, camera, 2D BCR, VFD, 10.1" guest facing display, UVC Light
Wi-Fi/BT​ (optional​) IEEE 802.11 a/b/g/n/ac
Display Support​ 2 Independent Displays (Main Display + HDMI or USB)
Operating System Android 9.0​ / Android 11
Power Adaptor​ AC-In 100~240V / DC-Out 12V, 90W
Dimensions 522mm(W) x 376mm(H) x 201mm(D) / 20.55in(W) x 14.8in(H) x 7.91in(D)
EX-100
External IO 3 x Powered USB 12V
1 x Powered USB 24V
DC 12V out(4pin to 4pin cable)to POS terminal
DC 12V in for 180W adaptor
EX-101
External IO 7 x USB3.0 Type-A
DC 12V in for Adaptor
DC 12V out(4pin to 4pin cable)to POS terminal
* DC 12V out(tuning-fork contact) to POS terminal for HUB function (By Jump setting)
* DC 12V out(tuning-fork contact) to PM-116 or PM-15 or QM150(default )
EX-300
External IO 4 x USB3.0 Type-A, 2 x USB3.0 (Signal-in)
1 x RJ11, 1 x RJ45
1 x 12V DC-IN, 1 x 12V DC-Out
1 x 24V PUSB, 1 x 12V PUSB
TSE SD Card, 1 x 5V DC-Out
3 x COM, 0V/5V/12V by jumper
Optional 3 x 12V PUSB, 1 x 12V DC-Out
2 x USB3.0 Type-A
