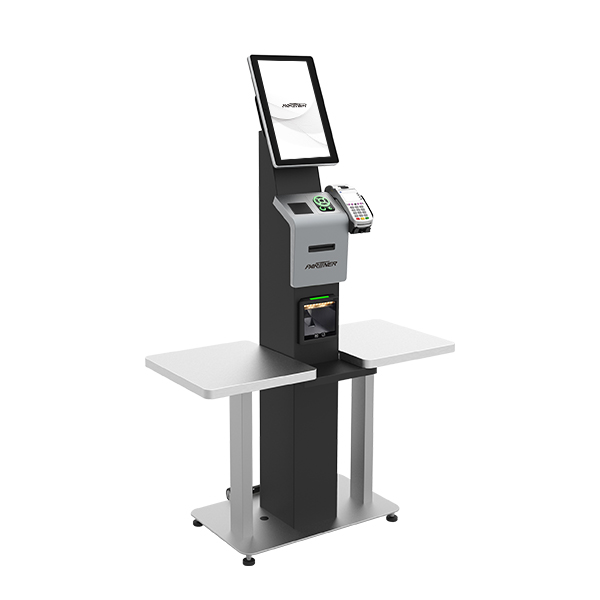

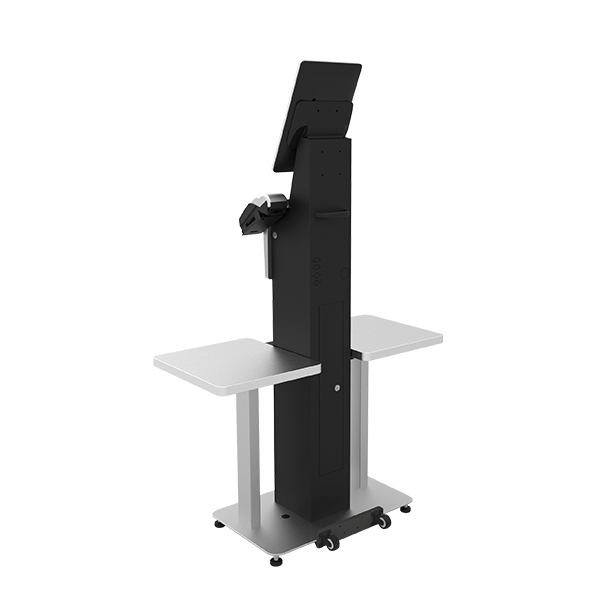

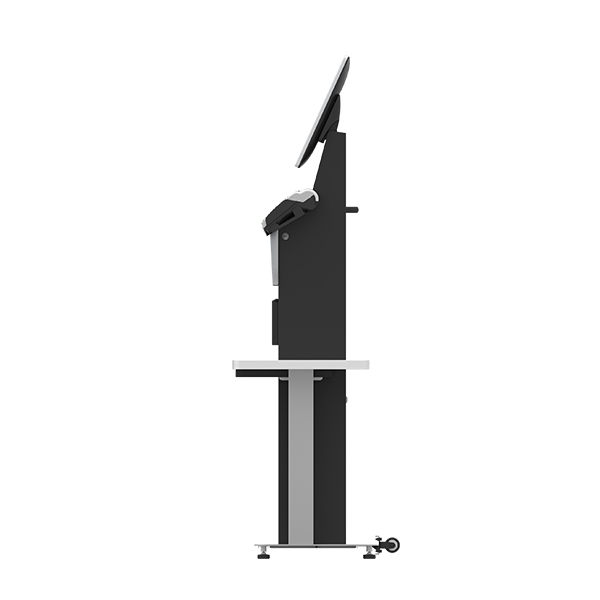

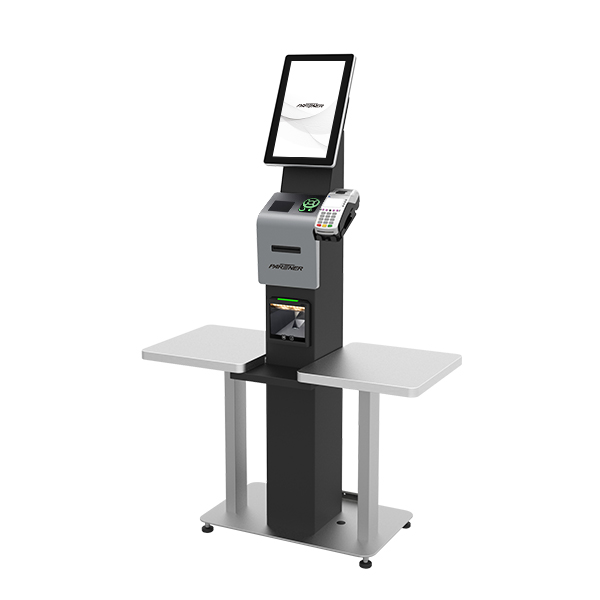

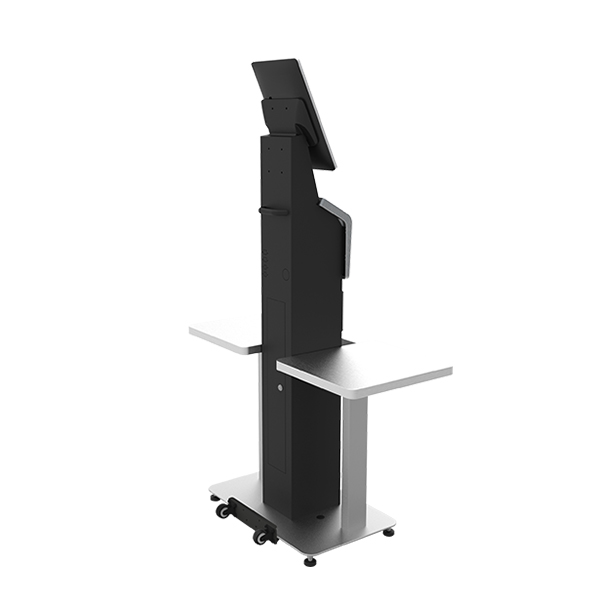

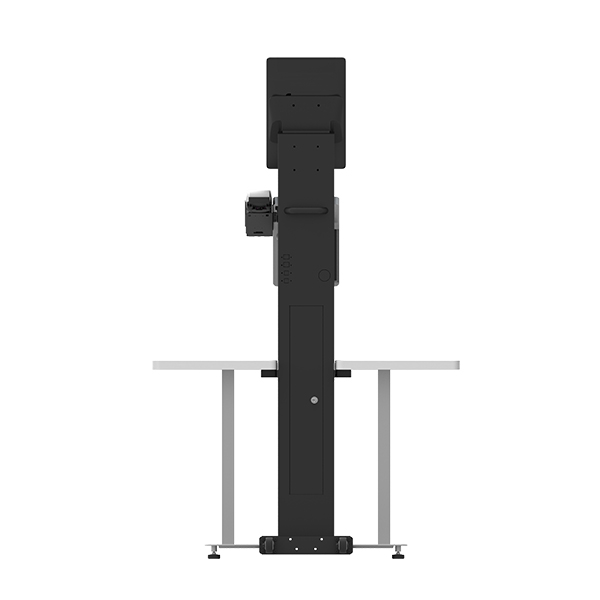

Alfred AD-156-S Kiosk

Maximize speed and convenience at the checkout with the AD-156-S self-checkout kiosk for a grab and go shopping experience. Ideal for use in high volume retail environments such as convenience, drug, specialty, liquor and hardware stores.


AD-215-S (3)

Convenience & Speed

Offer customers the option of self-checkout instead of waiting in line. AD-156-S gives customers control and a faster checkout experience while taking up less floor space than a regular checkout station.
  • Reduce lines and wait times
  • Increase throughput during peak hours
  • Give customers control
  • Improve order accuracy

Durable Design, Easy Access

The durable and fanless design protects the AD-156-S from damage caused by dust and dirt and it makes more resistant to shocks and vibrations.

The lockable housing keeps the printer and other components safe.

Powerful Scanning Capabilities

AD-156-S is equipped with a powerful vertical slot scanner with exceptional scanning performance on 1D and 2D barcodes as well as smartphone screens. Omnidirectional scanning allows scanning of barcodes on first pass, with minimal concern for orientation or barcode print quality.

Two Durable Bagging Areas

AD-156-S has two bagging areas with a weight capacity of 110 lb per side that make the bagging experience more pleasant.
未命名設計 (49)

Colored Led Indicators

Customizable LED lights communicates the status of each kiosk (e.g., kiosk is open/closed, customer needs help). This allows staff to quickly react and help customers who need assistance. Available in 10 color modes.

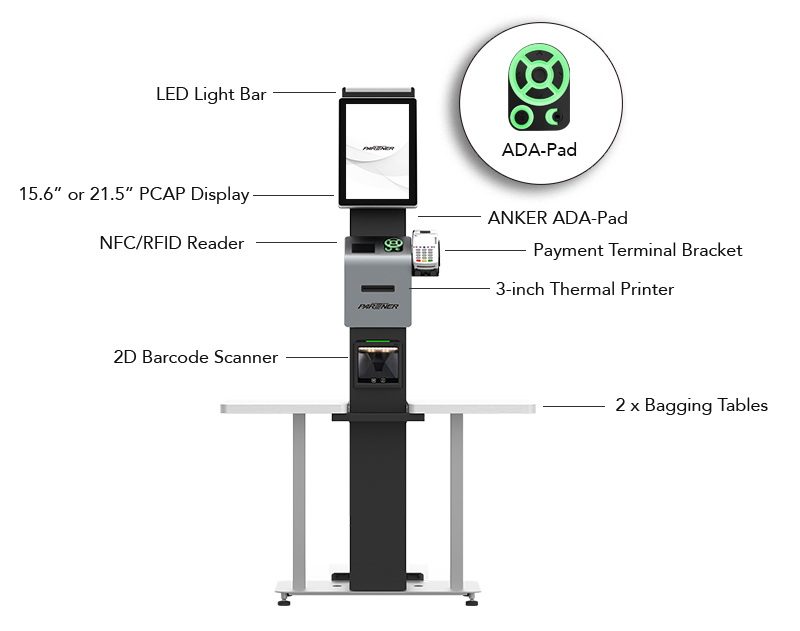

Customizable Peripherals

The all in-one kiosk solution comes with a full HD 15.6-inch touch screen display and a built-in, lockable 3-inch printer for printing coupons and receipts.

A large selection of peripherals allows Alfred to be customized and includes:

  • Payment brackets (support for all payment types)
  • area imager 2D scanner
  • NFC/RFID reader
  • 5 MP camera
  • ADA keypad
  • Led indicator light
  • Wheels kit
  • two bagging tables

Key Features

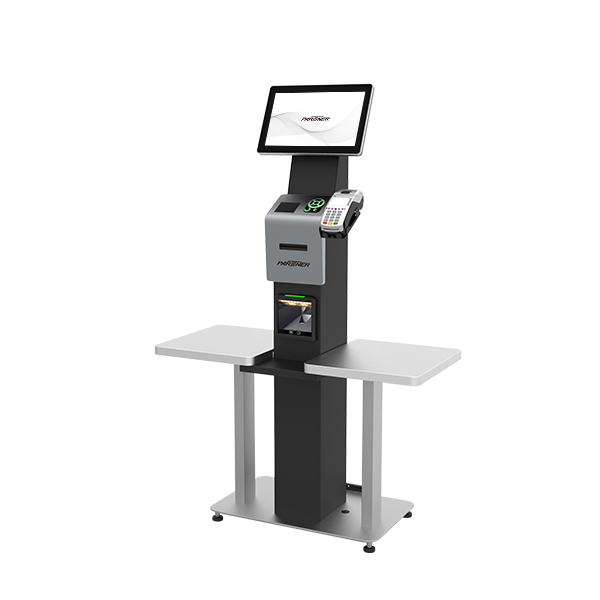

  • 15.6″ full HD display. Use in landscape or portrait mode.
  • Integrated 3-inch receipt printer & 2D slot scanner
  • Two durable bagging areas
  • Efficient, high-speed Intel and Rockchip processors
  • Available for Windows, Linux Ubuntu and Android
  • Ethernet, Wi-Fi (option) and Bluetooth (option) connectivity


Optional Features

  • Payment brackets
  • RFID reader
  • Camera
  • ADA keypad
  • Colored LED indicators
  • Wheels kit

Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.
Item AD-156-S
Display 15.6", 16:9, 1366 x 768 (220 nits)
15.6", 16:9, 1920 x 1080 (400 nits)
Touch PCAP touch
CPU Alder Lake-P
Intel® Celeron® 7305
Intel® Core™ i3-1215U
Intel® Core™ i5-1245U, vPro
Intel® Core™ i7-1265U, vPro
Elkhart Lake
Intel® Celeron® J6412
Kaby Lake-U
Intel® Core™ i3-7100U
Intel® Core™ i5-7300U
Memory DDR4 4GB, 8GB, 16GB, 32GB LDDR4 4GB
Storage M.2 PCIe SSD: 128GB / 256GB / 512GB eMMC 32GB + 1x Micro SD Card Slot (up to 128GB)
I/O Ports 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in setting (COM1, COM2)
1 x Intel LAN
(IEEE 802.3 10/100/1000 Mbps)
1 x LAN
(IEEE 802.3 10/100/1000 Mbps)
2 x LAN
(IEEE 802.3 10/100/1000 Mbps)
1 x LAN
(IEEE 802.3 10/100/1000 Mbps)
4 x USB 3.2 + 2 x USB 2.0 3 x USB 3.2 + 3 x USB 2.0 4 x USB 3.0 1 x USB 3.0 (OTG) + 5 x USB 2.0
1 x Type-C (data transfer + display) 1 x VGA 1 x  micro SD card
N/A for AD-156 Kaby Lake-U
1 x RJ11 port support for 2 cash drawers with 24V / 12V by jumper setting
1 x DC+ 12V output
1 x DC +12V input
1 x audio (1 x line-out)
1 x HDMI
Speaker 1 x speaker (3W)
Printer 3" thermal printer
Barcode Scanner Area imager 2D scanner
Bagging table Capacity 110 lb or 50 kg/each
Peripheral Options MSR, EMV terminal brackets, 5MP camera, RFID / NFC reader, ADA keypad, LED status indicator (multi-color light bar), Wheels kit: two wheels & one handle
Wi-Fi / BT (option) Wi-Fi 6E Intel AX210 ,IEEE 802.11 a/b/g/n/acR2/axR2
(IEEE 802.11a/b/g/n/ac)
BT 4.2 (supports BLE)
Operating System 1. Windows 11 IoT Enterprise GAC (64bit) ready 1. Windows 10 IoT Enterprise LTSC 21H2 (64bit) Android 11
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) 2. Linux Ubuntu 18.04
3. Linux Ubuntu 22.04
TPM & vPro 1. Intel vPro (i5/i7 CPU only) S/W TPM 2.0 (BIOS) 1. Intel vPro (i5 CPU only) N/A
2. S/W TPM 2.0 (BIOS) 2. S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V / DC-Out 12V, 120W AC-In 100~240V / DC-Out 12V, 120W AC-In 100~240V / DC-Out 12V, 65W
Reliability System operating temperature: 0~40°C/ 32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C/-4~140°F
(W x Hx D)
Landscape: 985 x 1509 x 471 mm / 38.8 x 59.4 x 16.4 in
Portrait: 985 x 1596 x 471 mm / 38.8 x 62.8 x 16.4 in
