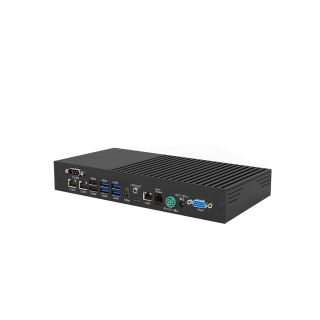

ALFA Series Industrial Computer

A compact industrial computer, specially designed for demanding retail and hospitality applications, featuring a fanless, noise-free computer with a large selection of ports to connect POS peripherals, displays and digital signage.



Fanless, Cool and Noise-free

The ALFA Series is based on a fanless computer design with high-quality, industrial-grade components for maximum durability and it is completely noise-free. The smartly designed aluminum casing protects the computer and leads away heat to keep it cool.

Ideal for use as a POS terminal or POS server or for integration with an open frame panel for digital signage and kiosk application and plenty of connections for printers, payment terminals, and other peripherals.



Best-in-Class Performance

The ALFA series is available with Windows 10/11 and Linux Ubuntu 22.04 and is powered by the latest Intel Tiger Lake and Elkhart Lake processors to ensure high-speed performance in every user scenario. Several different memory and storage sizes are available with up to 1 TB M.2 PCIe SSD and 32GB DDR4 DRAM to provide optimal performance.

Powered USB & Wi-Fi 6 Option


A large number of ports, including four powered USB ports makes ALFA ideal to use as a POS terminal/server as it can connect all peripherals, including peripherals that require extra power.

The Intel Wireless module enables Wi-Fi 6 and BT 5.2 for even better connectivity.


Flexible VESA Mounting

The ALFA unit’s small footprint and low-profile design, makes it easy to install anywhere. The optional VESA bracket enables secure mounting onto a screen, wall, desk or under a counter.

Built for Every Need

The ALFA series is available in three different configurations, including ALFAALFA Pro with four extra powered USB ports, and ALFA Mini with an ultra-compact, low-profile design.


Built to Last

The durable construction with a solid-state drive protects the unit from dust and makes it more resistant to shocks and vibrations. In addition, the ALFA Series is protected by a 5-year warranty.
Key Features
  • Three Models: ALFA, ALFA Pro (4 x powered USB) and
    ALFA Mini (ultra-slim, low profile design)
  • Windows 11 and 10 and Linux Ubuntu 22.04
  • Choose between Intel Elkhart Lake or Tiger Lake processor
  • Two front-facing USB ports
  • Up to 1 TB M.2 PCIe SSD
  • Up to 32GB DDR4 DRAM
  • Durable die-cast aluminum casing

Optional Features

  • VESA mounting bracket
  • Wi-Fi 6 and BT 5.2
  • Powered USB module

Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.
CPU Intel®   Celeron® J6412 (Elkhart Lake)
Intel® Core™ i3-1115G4 (Tiger Lake UP3)
Intel® Core™ i5-1145G7, vPro (Tiger Lake UP3)
Intel® Core™ i7-1185G7, vPro (Tiger Lake UP3)
Memory DDR4 4GB, 8GB, 16GB, 32G
Storage M.2 PCIe SSD: 128G / 256G / 512G / 1TB
External I/O Interface 3 x serial ports, RS-232 (DB9), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) 4 x serial ports, RS-232 (DB9), 0V/5V/12V selected in BIOS (COM1, COM2, COM3, COM4)
1 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45)
1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting
1 x DC + 12V out
2 x USB 3.2 + 6 x USB 2.0
4 x USB 3.2 + 4 x USB 2.0 for Tiger Lake
1 x DC + 12V input
1 x audio (1 x line out)
1 x HDMI
1 x Type-C (data transfer only)
1 x Type-C (data transfer + display) for Tiger Lake
1 x VGA
Option 1 x Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2
Power USB N/A 3 x 12V & 1 x 24V Powered USB
Display Support Two independent displays (HDMI + VGA)
Three independent displays (HDMI + Type-C + VGA) for Tiger Lake
Operating System 1. Windows 11 IoT Enterprise GAC (64bit)
System 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version
  3. Linux Ubuntu 22.04
Software Intel vPro (i5/i7 CPU only)
S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V / DC-Out 12V, 65W, 90W (Tiger Lake) AC-In 100~240V / DC-Out 12V, 180W
Reliability System operating temperature: 0~40°C32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C/-4~140°F
Dimensions (Wx Hx D) 255 x 132 x 45 mm / 10.04 x 5.18 x 1.78 inch 255 x 132 x 63 mm / 10.04 x 5.18 x 2.48 inch
Weight 1.5 kgs / 3.3 Ibs 1.8 kgs / 3.97 Ibs
