K27 II Kiosk

Save on labor costs, reduce wait times, and increase capacity without adding extra staff with Partner Tech's self-ordering kiosk for use in quick service restaurants and other hospitality and retail venues.

SHARE

Level Up the Customer Experience

K27 II offers the convenience of self-service and allows customers to skip the lines. It enables customers to take control of their orders, select add-ons, enjoy personalized offers, and redeem award points – while the staff can be assigned to other tasks.

 Use in quick service restaurants, at the mall, and in other hospitality and retail environments.





  • Convenience

    Happy Guests

    Customers enjoy the convenience of self-service with less waiting in line.
  • LaborCost

    Reduced labor costs

    Increase capacity and reduce lines without adding extra staff.
  • Revenue

    More revenue

    Service more guests and increase the average order size.
  • Transporation-Kiosk-K27-800x533
  • QSR-Kiosk-800x533
  • Retail-Kiosk-800x533

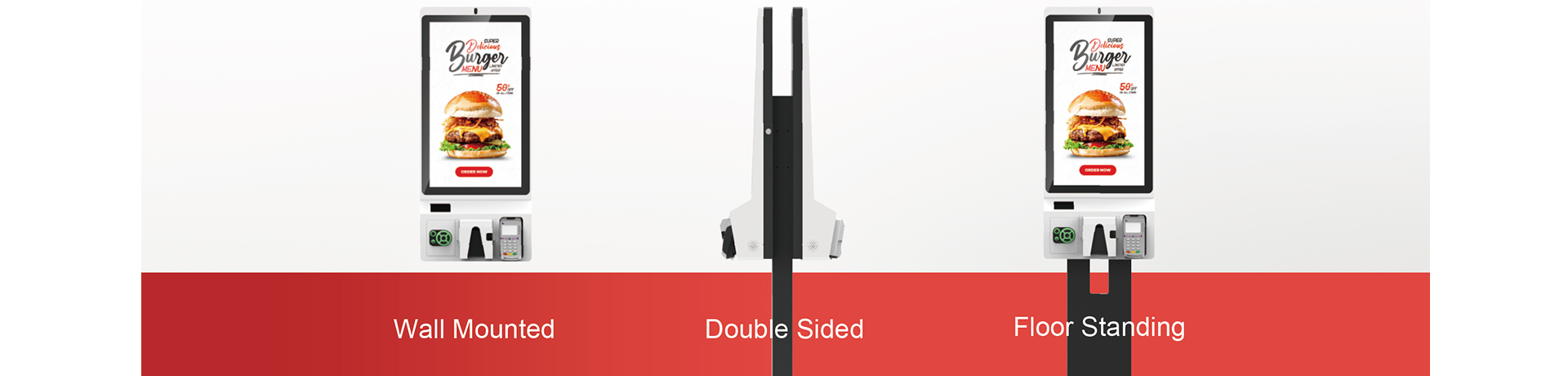

Select a Kiosk that Fits Your Space



Increase your ordering capacity with a self-service kiosk that has a very small foot print with the option of double-sided operation.




Choose between:

Wall mount | Floor stand | Double-sided







1

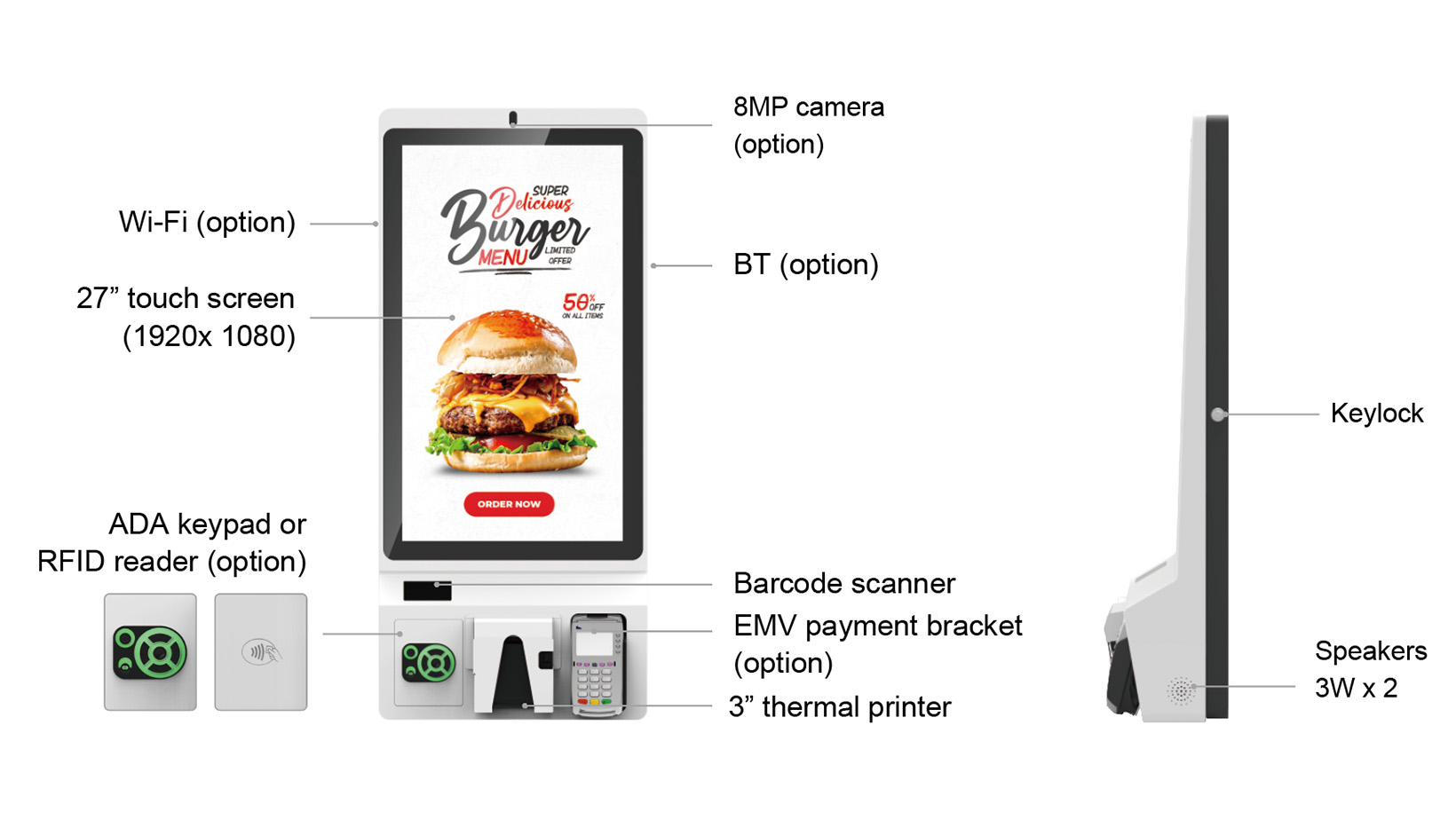

Customize with Integrated Peripherals

Customize the self-ordering kiosk solution to your needs with a large selection of peripherals – with the option of adding more functionality later.


  • Barcode scanner
  • NFC/RFID reader
  • Brackets for payment terminals
  • Thermal printer
  • ADA keypad
  • 5MP camera

K27 II comes in standard white color, but the color and shape of the enclosure can be customized to match your company's brand for larger order volumes.


2

Powerful Speed and Performance

K27 II offers the flexibility to choose between Windows, Linux Ubuntu and Android. The high-performance Intel and Rockchip processors ensure that the ordering process goes smoothly and without delays.

Based on the M.2 SATA solid state drive and fanless technology, the K27 II is an ultra-reliable kiosk with zero moving parts.






Easier Maintenance with Modular Design

K27 II is engineered to provide maximum reliability and uptime with a rugged and lockable enclosure that protects the kiosk from damage.
Easy-to-replace modules keep repair costs down while minimizing interruptions to your business.


Key Features


  • Wall mount, floor stand, double-sided operation
  • 27" (1920x 1080) touch display
  • Multiple payment options (MSR, chip & PIN and contactless)
  • Compact, sleek design
  • Modular and customizable for your needs
  • Support for Windows 10/11, Linux Ubuntu 22.04 and Android 11

Optional Features


  • Barcode scanner
  • NFC/RFID reader
  • Brackets for payment terminals
  • Thermal printer
  • ADA keypad
  • 5 MP camera
  • BT and Wi-Fi connectivity


Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.
Item K27 II
Display 27", 16:9, 1920 x 1080, 300 nits
27", 16:9, 1920 x 1080, 650 nits (option)
Touch PCAP Touch
CPU Alder Lake-P
Intel® Celeron® 7305
Intel® Core™ i3-1215U
Intel® Core™ i5-1245U, vPro
Intel® Core™ i7-1265U, vPro
Elkhart Lake
Intel® Celeron® J6412
Kaby Lake-U
Intel® Core™ i3-7100U
Intel® Core™ i5-7300U
Rockchip
RK3399
Memory DDR4 4GB, 8GB, 16GB, 32GB LDDR4 4GB
Storage M.2 PCIe SSD: 128GB / 256GB / 512GB eMMC 32GB + 1x micro SD card slot
(up to 128GB)
I/O Interface 1 x Gigabit Ethernet
1 x AC male power socket
1 x power switch button
Speakers 2 x speaker (3W)
Printer 3" thermal printer
Peripheral Options 2D barcode scanner
EMV terminal bracket
5MP camera
RFID / NFC reader
ADA keypad
Floor stand (including wheels & handle)
VESA wallmount bracket
Wi-Fi / BT (option) Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2 2.4GHz/5GHz (IEEE 802.11a/b/g/n/ac), BT 4.2 (supports BLE)
Operating System 1. Windows 11 IoT Enterprise GAC (64bit) ready
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
3. Linux Ubuntu 22.04
1. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
2. Linux Ubuntu 18.04
Android 11
TPM & vPro 1. Intel vPro (i5/i7 CPU only) S/W TPM 2.0 (BIOS) 1. Intel vPro (i5 CPU only) N/A
2. S/W TPM 2.0 (BIOS) 2. S/W TPM 2.0 (BIOS)
Power Supply AC-In 100~240V / DC-Out 12V, 120W AC-In 100~240V / DC-Out 12V, 90W
Reliability System operating temperature: 0~40°C / 32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C /-4~140°F
Dimensions
(W x H x D)
Wall mount: 415.2 x 945.6 x 163.19 mm / 16.35 x 37.23 x 6.43 in
Floor stand: 550 x 1900 x 610 mm/ 21.65 x 74.80 x 24.02 in
Weight Wall mount: 23 kg / 50.71 lb
Floor stand: 57 kg / 125.67 lb
