HomeAudrey A7 II
All-in-one Touch Screen POS Terminal
Audrey II, based on our most loved POS terminal, but equipped with more processing power, updated looks, ultra-slim bezel, optically bonded touchscreen, Windows 11, and more.
SHARE
OVERVIEW
-
Clearer, Glare-Free Display
An anti-glare panel reduces reflections for a clearer viewing experience. -
More Power
Cutting-edge speed with Windows 11 and Intel 14 Gen Meteor Lake CPU. -
POS Ready
Customizable with peripherals and large selection of interfaces.

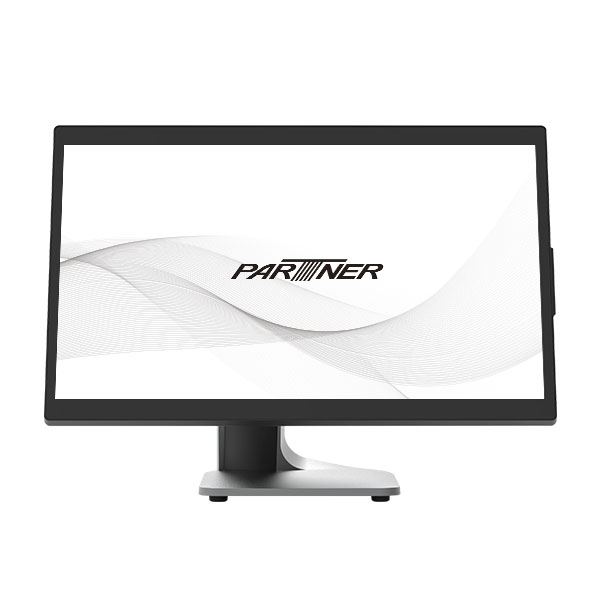

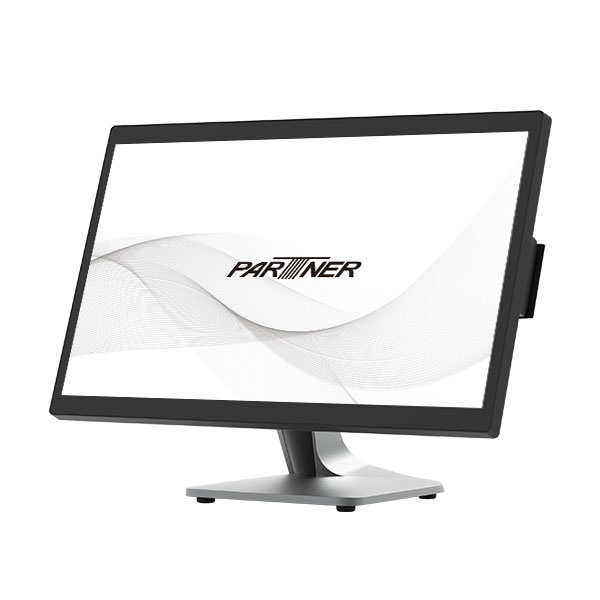

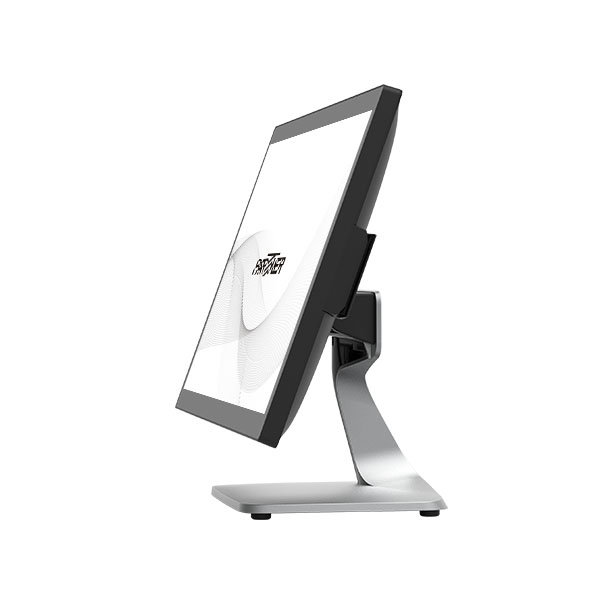

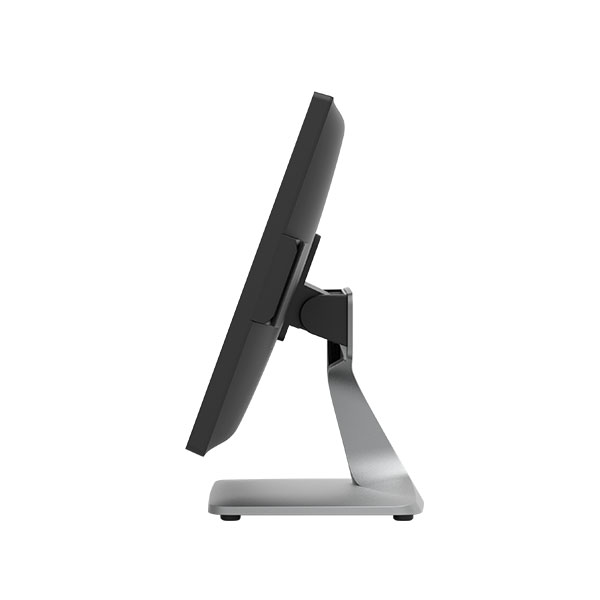

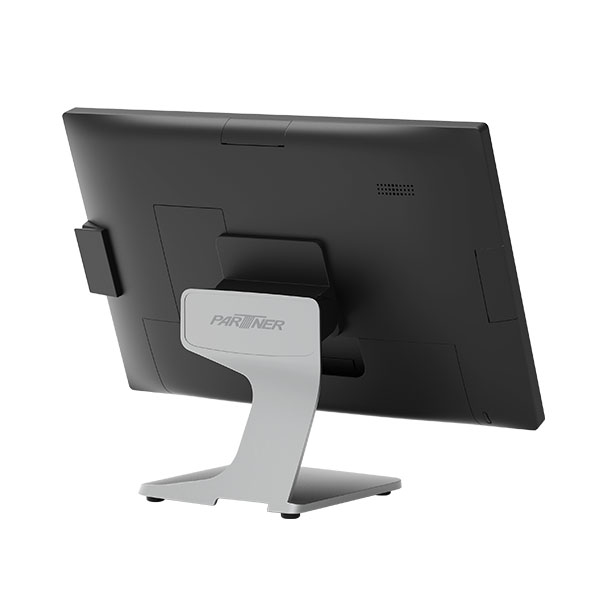

Sleek Design with Ultra-slim Bezel

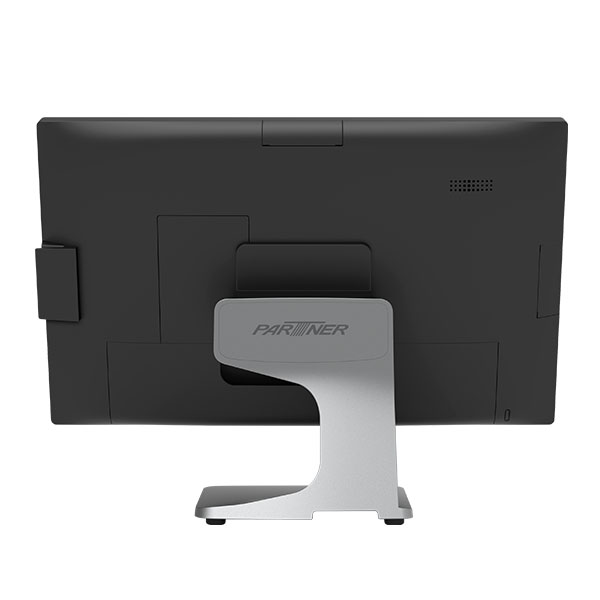

Based on Audrey's elegant design, but with a significantly slimmer bezel, A7-2 looks even more appealing than its predecessor and matches any type of modern store interior. All cables are neatly concealed inside the base to keep the counter clutter free.

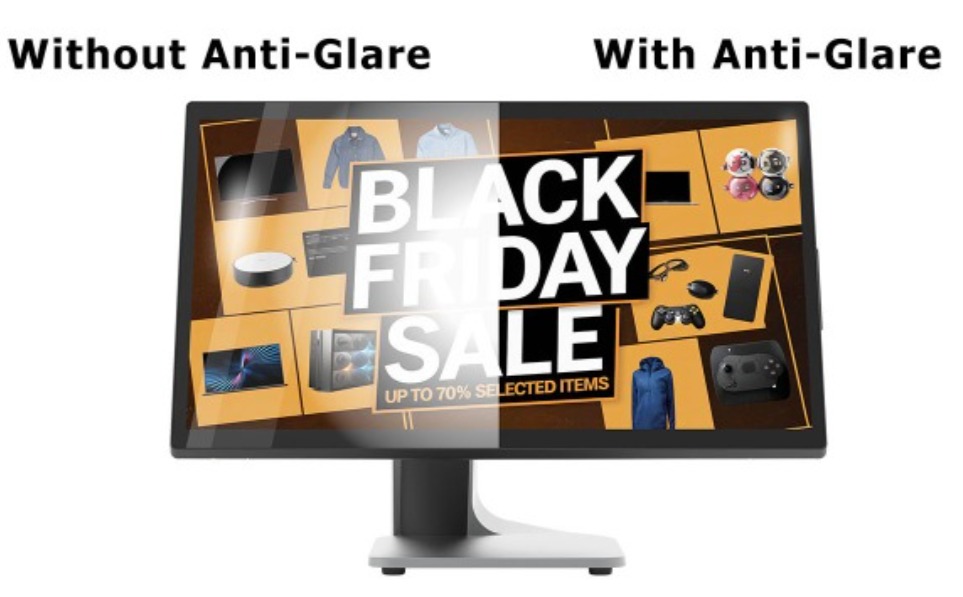

Brighter Display with Optical Bonding and Anti-Glare Glass

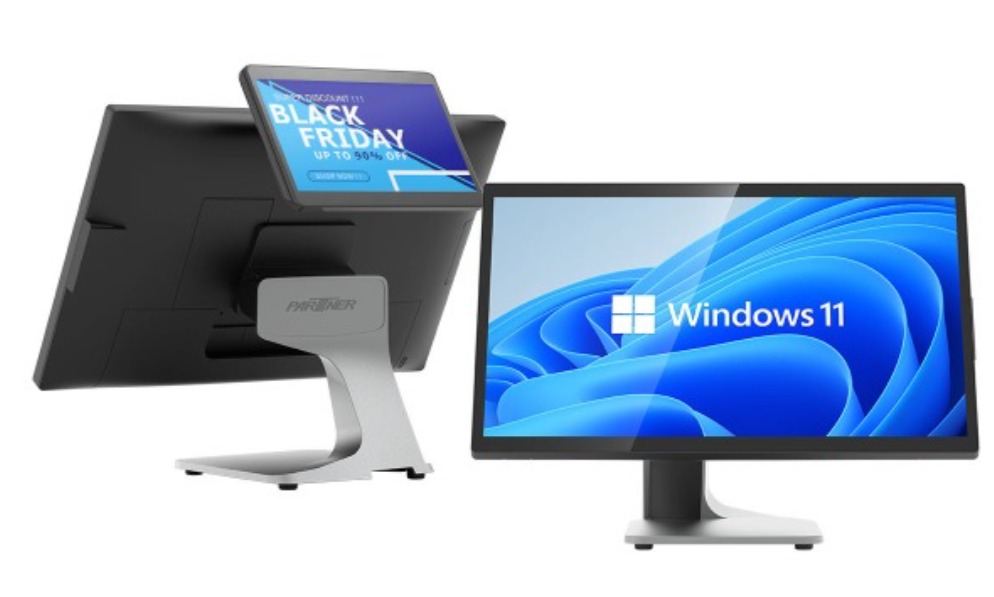

A7-2 is available with a Full HD 21.5-inch anti-glare display.The anti-glare glass enhances image clarity while reducing reflections and eye strain.A7-2 supports up to three displays, including the main display, a customer display, and digital signage via the HDMI port.
Blazing Speed & Performance
Powered by Intel®'s high-performance processor, A7-2 delivers powerful performance for more diversified applications and databases, including AI and computer vision applications. Combined with a M.2 PCIe solid-state drive and up to 48 GB DDR RAM memory ensures that A7-2 has the capacity to run the most data intensive POS applications for many years to come.

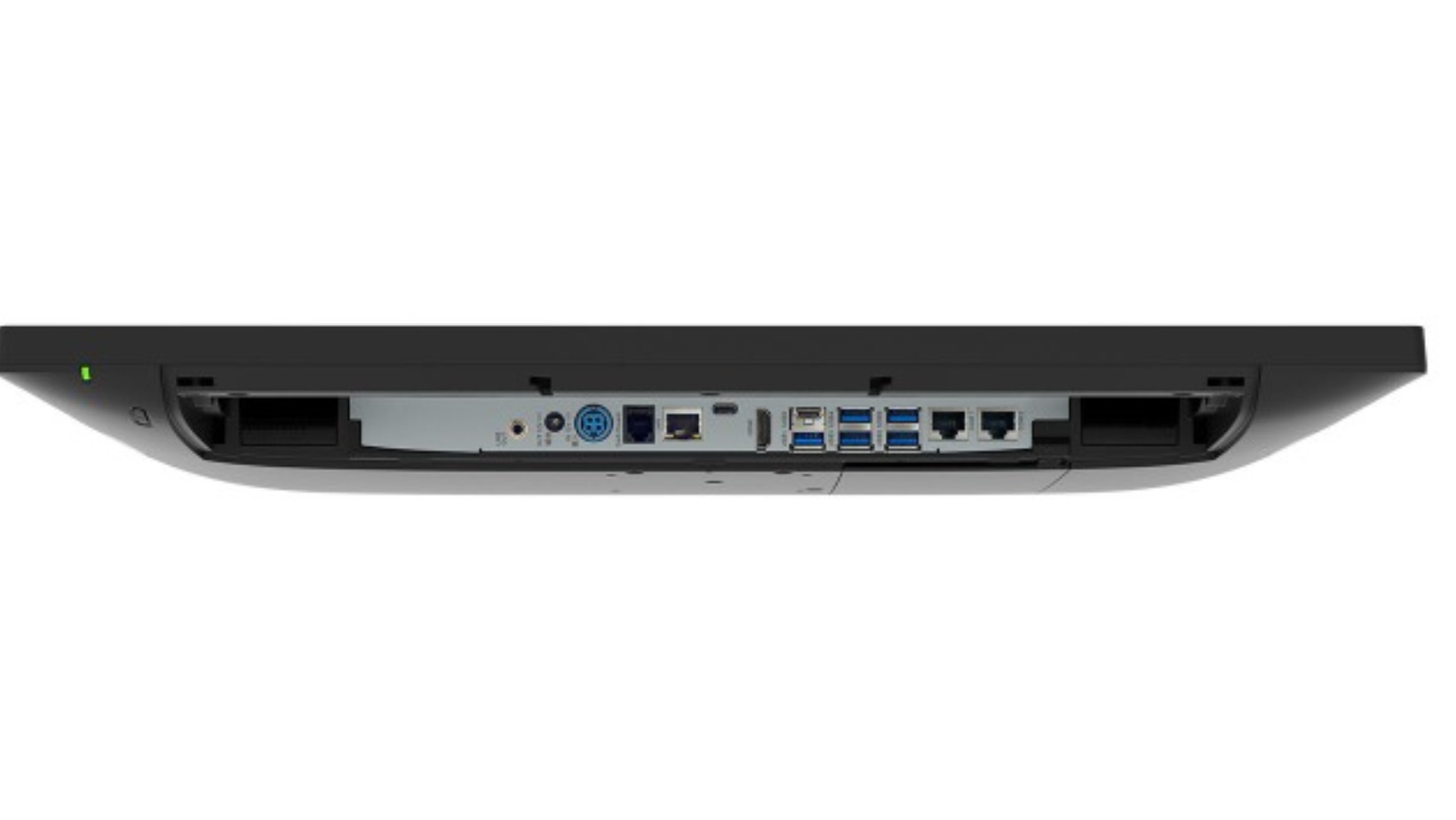

Built for POS with Many Interfaces
A7-2 offers even more interface options than the previous generation, including support for the more powerful Type-C USB connector. All connectors are protected by a cover to shield the computer from dust and dirt. A7-2 is also available with the EX-300 expansion I/O box that further expands the connectivity options and the ability communicate with more peripherals.

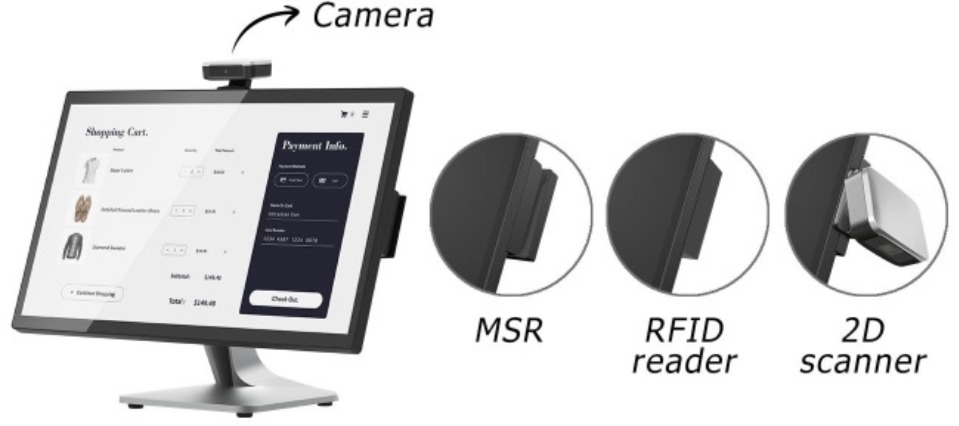

Customize With Peripherals
A7-2 comes with a large selection of peripherals that allows you to configure your POS terminal with different payment terminal brackets, fingerprint reader, EMV reader, MSR, camera, cash drawer, NFC/RFID-reader, customer display, extra digital display, printer, and barcode reader.

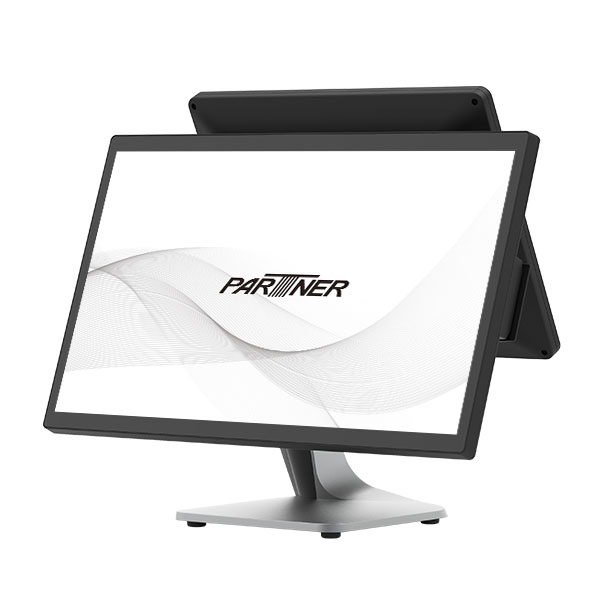

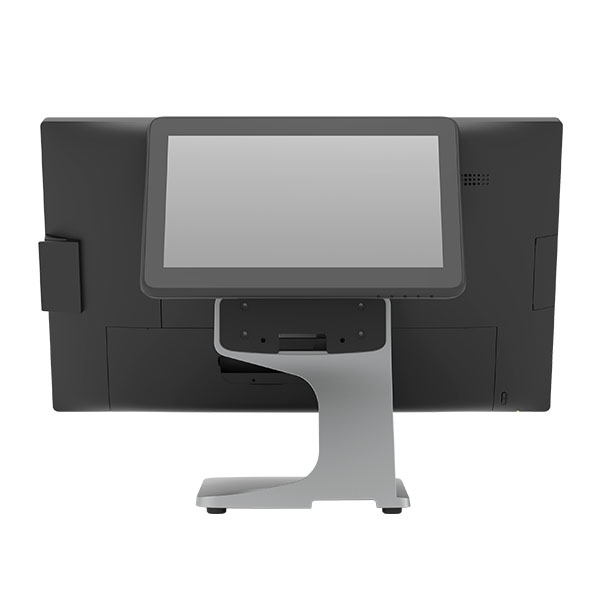

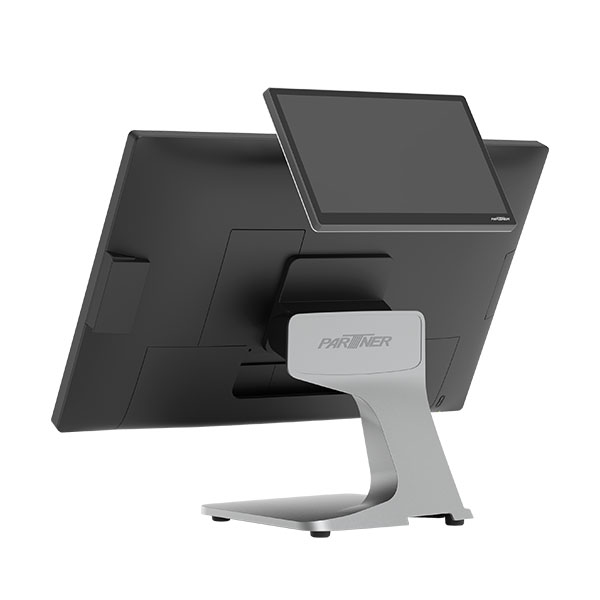

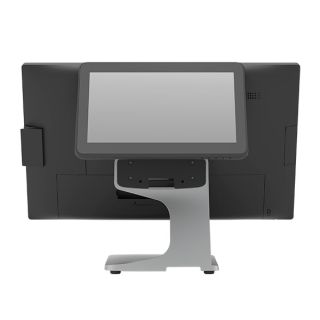

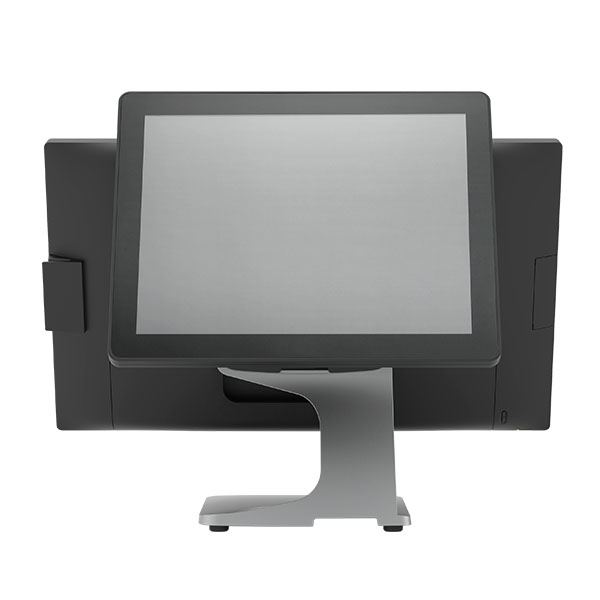

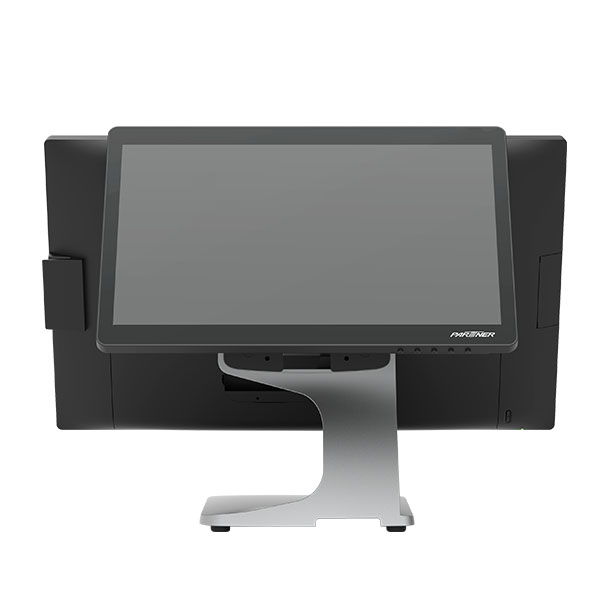

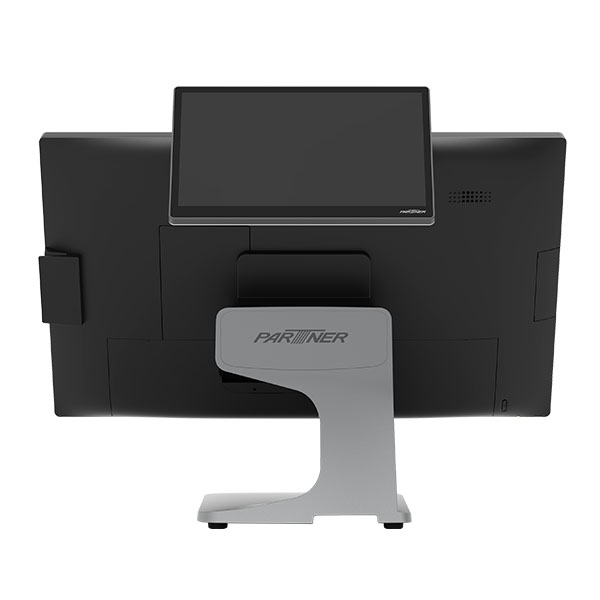

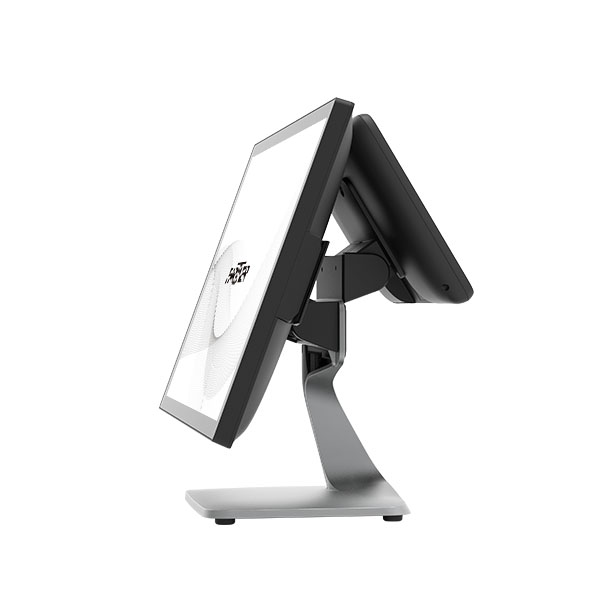

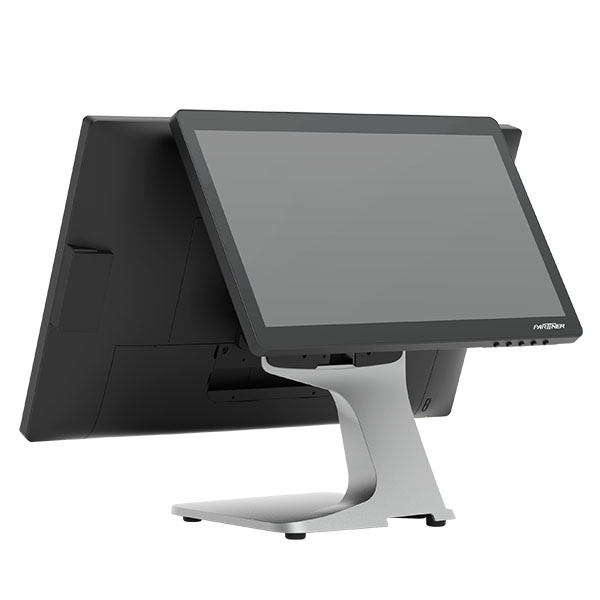

Customer Displays for All Your Needs
Key Features
- Meteor Lake/ Alder Lake-N CPU
- 21.5” PCAP touch with Anti-Glare
- Slimmest Edge Bezel Design
- Support Wifi 6E
- Support Type C
- Support Intel vPro for Meteor Lake; TPM 2.0
- Support Windows 11 IoT Enterprise 24H2
Optional Features
- Encryption-capable MSR, EMV reader, Bio reader, NFC, iButton, Camera, 2D BCR

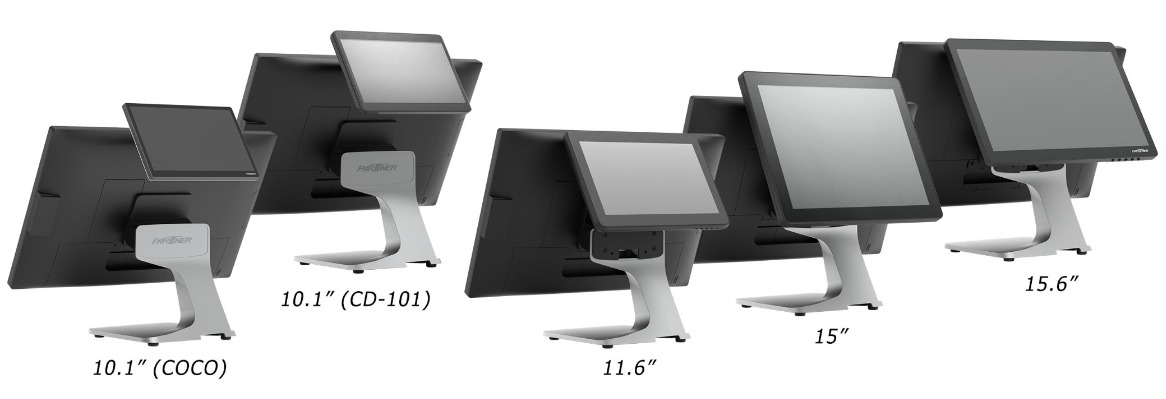

- 10.1″, 11.6″, 15″ and 15.6" guest facing display
- EX-300 Expansion I/O BOX
Interested in Partner Tech Products?
| Item | A7-2-N | A7-2-M |
|---|---|---|
| Size | 21.5" | |
| Aspect Ratio | 16:9 | |
| Resolution | 1920 x 1080 | |
| Brightness | 500 nits | |
| Touch | PCAP Touch (w/Anti-Glare) | |
| CPU | (Alder Lake-N) Intel® Processor N97 Intel® Core™ i3-N305 |
(Meteor Lake) Intel® Core™ Ultra 5 125U Intel® Core™ Ultra 7 155U |
| Memory | DDR4 4GB, 8GB,16GB | DDR5 8GB, 16GB, 32GB, 48GB |
| Storage | M.2 PCIe SSD:128G / 256G / 512G / 1TB | M.2 PCIe SSD x2:128G / 256G / 512G / 1TB |
| (support RAID) (※) | ||
| I/O Interface | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) | |
| 1 x Intel LAN(IEEE 802.3 10/100/1000/2500 Mbps) | ||
| 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | ||
| 1 x DC +12V out | ||
| 6 x USB 3.2 | 5 x USB 3.2 | |
| 1 x DC +12V input | ||
| 1 x audio (1 x line-out) | ||
| 1 x HDMI | ||
| 1 x Type-C (Data transfer / Display / Power Delivery 60W) | 1 x Type-C (Data transfer / Display / Power Delivery 60W) | |
| 1 x Type-C (data transfer) | ||
| Expansion I/O Options | 1 x 12V & 1 x 24V Powered USB | |
| 2 x Serial ports, RS-232 (RJ45), 0V/5V/12V selection by BIOS (COM3, COM4) | ||
| 2 x USB 2.0 | ||
| 1 x serial port, RS-232 (DB9), 0V/5V/12V selected in BIOS (COM3) | ||
| Speaker | 1 x speaker (3W) | |
| Peripheral Options | MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, 10.1" USB 2nd display, 11.6"/15"/15.6" HDMI 2nd display, 2D barcode scanner, camera, IO extension box (EX-100, EX-101, EX-300), cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) | |
| Wall Mount(Options) | VESA 75 x 75mm, Screw M4x8mm x4 | |
| Wireless Option | Wi-Fi 6E Intel AX210 | |
| IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 | ||
| Display Support | 3 independent displays (Main Display + HDMI + Type-C) | |
| Spill & Dust Resistant | Whole unit IP54 certified | |
| Operating System | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) |
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | 2. Linux Ubuntu 24.04 | |
| 3. Linux Ubuntu 22.04 | ||
| TPM & vPro | S/W TPM 2.0 (BIOS) | 1. Intel vPro |
| 2. S/W TPM 2.0 (BIOS) | ||
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 90W / 180W | AC-In 100~240V / DC-Out 12V, 120W / 180W |
| 180W 12V/15A for PD 5V/3A, 12V/3A, 12V/5A (※) | 180W 12V/15A for PD 5V/3A, 12V/3A, 12V/5A (※) | |
| Reliability | System operating temperature: 0~40°C/ 32~104°F | |
| System humidity: 15% ~ 80% | ||
| Storage temperature: -20~60°C/-4~140°F | ||
| Dimensions (Wx Hx D) | 501 (W) x 359 (H) x 201 (D) mm / 19.72 x 14.13 x 7.91 in | |
| Weight | 7.8 kg / 17.19 lb | |
