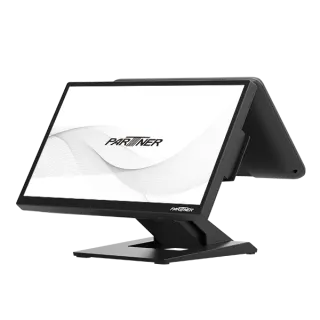

Victoria V5

All-in-one Touch Screen POS Terminal

V5 is a World-Class POS terminal system with an impressive technological configuration. Featuring with a brand-new concept to present the Ultra-Slim-Bezel with an aesthetic yet durable design, elevating the checkout experience in both retail and hospitality application.

SHARE

  • Slimmer Bezel

    A slimmer (7 mm) bezel design.

  • More Power

    Cutting-edge speed with Windows 11 and Intel 11 Gen Tiger Lake CPU.

  • POS Ready

    Customizable with peripherals and large selection of interfaces.


Sleek Design with Ultra-slim Bezel




Blazing Speed & Performance

Victoria V5 delivers powerful performance for more diversified applications and databases, including AI and computer vision applications. The Tiger Lake processor combined with a M.2 PCIe solid-state drive and up to 32 GB DDR4 RAM memory ensures that Victoria V5 has the capacity to run the most data intensive POS applications for many years to come.


未命名設計 (62)

Built for POS with Many Interfaces

Victoria V5 offers many interface options, including support for the more powerful Type-C USB connector. All connectors are protected by a cover to shield the computer from dust and dirt. Victoria V5 is also available with the EX-300 expansion I/O box that further expands the connectivity options and the ability communicate with more peripherals.



Customize With Peripherals

Victoria V5 comes with a large selection of peripherals that allows you to configure your POS terminal with different payment terminal brackets, fingerprint reader, EMV reader, MSR, camera, cash drawer, NFC/RFID-reader, customer display, extra digital display, printer, and barcode reader.


Customer Displays for All Your Needs

未命名設計 (64)


Key Features

  • Elkhart Lake/ 11th Tiger Lake UP3 CPU
  • Slimmest Edge Bezel Design (7mm)
  • Support Wifi 6E
  • Support Type-C
  • Support Intel vPro for Core i5, Core i7 CPU; TPM 2.0
  • Support Windows 11 IoT Enterprise GAC

Optional Features

  • Encryption-capable MSR, EMV reader, Bio reader,NFC, iButton, Camera, 2D BCR
  • VFD, 10.1″, 11.6″, 15″ guest facing display
  • EX-300 Expansion I/O BOX

Interested in Partner Tech Products?


Item V5-1-T V5-1-E
Size 15.6" 15.6"
Aspect Ratio 16:9 16:9
Resolution 1920 x 1080 1920 x 1080
Brightness 250 nits 250 nits
Touch PCAP Touch PCAP Touch
CPU (Tiger Lake UP3)
Intel® Core™ i3-1115G4
Intel® Core™ i5-1145G7, vPro
Intel® Core™ i7-1185G7, vPro
Intel® Celeron® J6412 (Elkhart Lake)
Memory DDR4 4GB, 8GB, 16GB, 32GB DDR4 4GB, 8GB, 16GB, 32GB
Storage M.2 PCIe SSD: 128G / 256G / 512G M.2 PCIe SSD: 128G / 256G / 512G
I/O Interface 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2)
  1 x Intel LAN(IEEE 802.3 10/100/1000 Mbps) 1 x LAN(IEEE 802.3 10/100/1000 Mbps)
  1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting
  1 x DC +12V out 1 x DC +12V out
  4 x USB 3.2 + 2 x USB 2.0 2 x USB 3.0 + 4 x USB 2.0
  1 x DC + 12V input 1 x DC + 12V input
  1 x audio (1 x line-out) 1 x audio (1 x line-out)
  1 x HDMI 1 x HDMI
  1 x Type-C (data transfer+ display) 1 x Type-C (data transfer only)
Speaker 1 x speaker (3W) 1 x speaker (3W)
Peripheral Options MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box EX-300, cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box EX-300, cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II)
Wireless Option Wi-Fi 6E Intel AX210
IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3
Wi-Fi 6E Intel AX210
IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3
Display Support 3 independent displays (Main Display + HDMI + Type-C) 2 independent displays (Main Display + HDMI)
Operating System 1. Windows 11 IoT Enterprise GAC (64bit) ready 1. Windows 11 IoT Enterprise GAC (64bit) ready
  2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
  3. Linux Ubuntu 22.04 3. Linux Ubuntu 22.04
TPM & vPro 1. Intel vPro (i5/i7 CPU only) S/W TPM 2.0 (BIOS)
  2. S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V / DC-Out 12V, 65W AC-In 100~240V / DC-Out 12V, 65W
Reliability System operating temperature: 0~40°C/ 32~104°F System operating temperature: 0~40°C/ 32~104°F
  System humidity: 15% ~ 80% System humidity: 15% ~ 80%
  Storage temperature: -20~60°C/-4~140°F Storage temperature: -20~60°C/-4~140°F
Dimensions (Wx Hx D) With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in
Weight With T Base: 3.7 kg / 8.16 Ib With T Base: 3.7 kg / 8.16 Ib
