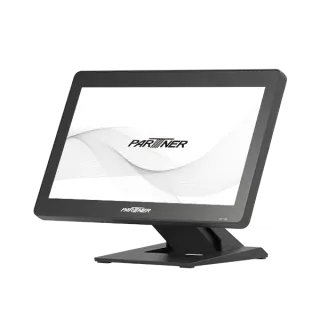

Grace G5-1-E

Inspired by Latin "gratia (favor and thanks)", Grace Series reveals her thin and light form with powerful performance in the most up-to-date design.

SHARE

未命名設計 (23)

FIT & SLIM

The GRACE G5-1-E features an ultra-slim and sleek look that exhibits elegance. It can be perfectly sized for sitting on a counter or in areas where you’re tight on space.

未命名設計 (43)

COST-EFFECTIVE DESIGN

Remove TYPE C connector Change IO bracket to USB3.2x2, USB2.0x4Remove DIMM2

2

FLIP-OVER DESIGN

Adjustable viewing angles meet the needs of cashiers and customers. The bi-directional rotatable display makes it easy for employees to quickly show digital content to customers, allowing customers to take actions in real-time. The display further increases marketing initiatives by allowing customer-focused, personalized services.


Key Features

  • Bezel-Free 15.6" screen with PCAP touch
  • Fanless design with powerful Intel Elkhart Lake platform
  • High speed M.2 SSD
  • Support up to 2 independent displays
  • Cost-Effective Design

Optional Features

  • Optional peripherals: MSR, IC Card Reader, Fingerprint, RFID, i-Button
  • VFD
  • USB 2nd Display
  • HDMI 2nd Display
  • SCN-300
  • Camera-300
  • EX-300


Interested in Partner Tech Products?


Item G5-1-E
Size 15.6"
Aspect Ratio 16:9
Resolution 1366 x 768
1920 x 1080 (option)
Brightness 220 nits
400 nits (option)
Touch PCAP touch
CPU Intel® Celeron® J6412 (Elkhart Lake)
Memory DDR4 4GB, 8GB, 16GB, 32GB
Storage M.2 PCIe SSD: 128G / 256G / 512G
I/O Interface 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3)
1 x LAN(IEEE 802.3 10/100/1000 Mbps)
1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting
1 x DC +12V out
2 x USB 3.2 + 4 x USB 2.0
1 x DC +12V input
1 x audio (1 x line-out)
1 x HDMI
Speaker 1 x speaker (3W)
Peripheral Options MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box (EX-300), cash drawer, UVC Light
Wireless Option Wi-Fi 6E Intel AX210
IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.2
Display Support 2 independent displays (Main Display + HDMI)
Spill & Dust Resistant Front panel IP65
Operating System 1. Windows 11 IoT Enterprise GAC (64bit) ready
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
3. Linux Ubuntu 22.04
TPM S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V / DC-Out 12V, 65W
Reliability System operating temperature: 0~40°C/ 32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C/-4~140°F
Dimensions (Wx Hx D) Standing + T Base: 360 x 320 x 224 mm / 14.17 x 12.6 x 8.82 in
Weight Standing + T Base: 5.2 kg / 11.46 lb
