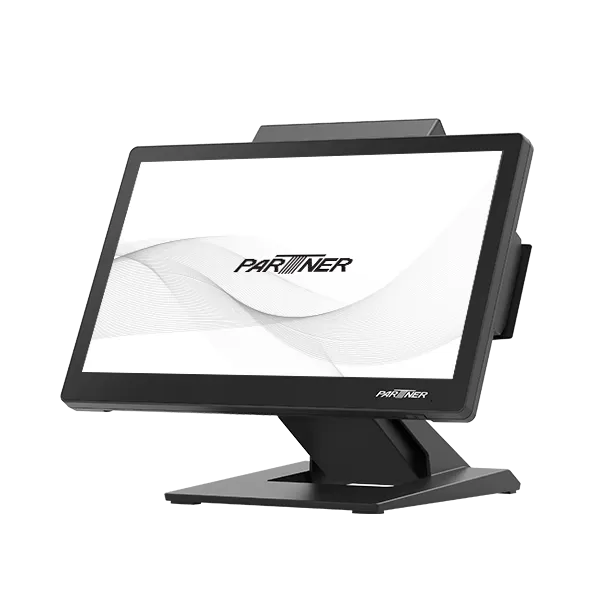

Joy J14

Compact Touch POS Terminal

Joy J14 is a compact POS product offering a powerful solution for businesses who look to optimize their checkout experience.
With expandable features, it adapts effortlessly to your evolving requirements.

SHARE

  • 14" Display

    14" Display (1366*768)

  • More Power

    Cutting-edge speed with Windows 11 and Intel Elkhart Lake CPU.

  • POS Ready

    Customizable with peripherals and large selection of interfaces.


New Dimension

The Joy J14 is designed to optimize workflows at the checkout.The 14-inch-wide, 16:9, PCT touchscreen makes it easy for your staff to use — even new employees can use intuitive touchscreen interfaces efficiently almost from day one.




Powerful and Rugged

The Intel Elkhart Lake J6412 provides ample processing power for your POS and other business solutions. In addition its rugged, fanless design makes it less vulnerable to damage from dust, bumps or vibrations that can in a busy commercial environment.




Flexibile Interface

The Joy J14 design allows more flexibility to change the interface depending on your device requirements, allowing a variety of configurations for the hospitality& retail market.
未命名設計 (62)

System Rights For Your Business

The Joy J14 lets you choose the operating system that’s right for your business and your staff, including Windows 11, Windows 10, and Linux (Ubuntu).



Customize With Peripherals

The Joy J14 comes with a large selection of peripherals that allows you to configure your POS terminal with different payment terminal brackets, fingerprint reader, EMV reader, MSR, camera, cash drawer, RFID-reader, customer display, extra digital display, printer, and barcode reader.

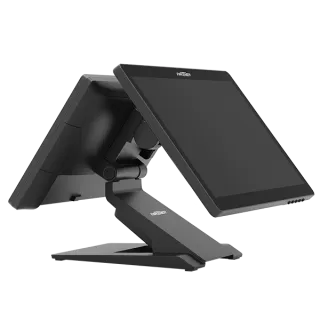

Customer Displays for All Your Needs

未命名設計 (64)


Key Features

  • High Performance Intel CPU with fanless design
  • HDMI 1366 x 768 @ 60Hz support
  • High speed M.2 SSD
  • Support Wi-Fi 6E
  • Support Type-C USB
  • Support TPM 2.0
  • Support Windows 11 IoT Enterprise GAC

Optional Features

  • Encryption-capable MSR, EMV reader, Fingerprint reader, iButton, Camera, 2D BCR
  • VFD, 10.1″, 11.6″, 15″ guest facing display

Interested in Partner Tech Products?


Item J14-1E
Size 14"
Aspect Ratio 16:9
Resolution 1366 x 768
Brightness 220 nits
Touch PCAP touch
CPU Intel® Celeron® J6412 (Elkhart Lake)
Memory DDR4 4GB, 8GB, 16GB, 32GB
Storage M.2 PCIe SSD: 128G / 256G / 512G
I/O Interface 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2)
1 x LAN(IEEE 802.3 10/100/1000 Mbps)
1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting
1 x DC +12V out
2 x USB 3.0 + 4 x USB 2.0
1 x DC +12V input
1 x audio (1 x line-out)
1 x HDMI
1 x Type-C (data transfer only)
Speaker 1 x speaker 3W
Peripheral Options MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box EX-300, cash drawer
Wireless Option Wi-Fi 6E Intel AX210
IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3
Display Support 2 independent displays (Main Display + HDMI)
Spill & Dust Resistant Front panel IP65
Operating System 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit)
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
3. Linux Ubuntu 22.04
TPM & vPro S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V / DC-Out 12V, 65W
Reliability System operating temperature: 0~40°C/ 32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C/-4~140°F
Dimensions (Wx Hx D) With T Base: 340.7 x 253.52 x 224.5 mm / 13.41 x 9.98 x 8.84 in
Weight 3.18 Kg / 7.01 Ib
