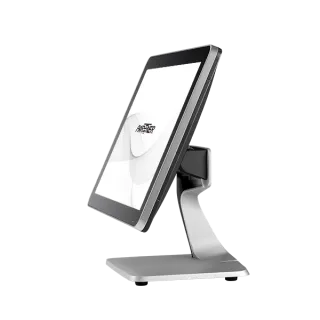

Audrey A4 POS (Windows)

All-in-one Touch Screen POS Terminal

Packed with power, Audrey touch screen POS delivers top performance in a sleek, minimalistic design, elevating the checkout experience in retail and hospitality.

SHARE


A5_1.

Touch Screen POS with Style

Audrey's thin, sleek design complements even the most esthetic store or hospitality environment and the stylish touch screen POS is available in an elegant silver/black or rose gold finish. It takes up minimal counter space and conceals all cables to keep your checkout counter clutter free .


A5_4.


Blazing Speed ​​& High Performance

Don't let your POS slow down the checkout process and cause lines or longer wait times. Audrey is built on the latest technology that supports new, more demanding applications and databases. The Intel processor, M.2 SSD memory and up to 32 GB DDR4 RAM ensure high speed data processing and responsiveness in all situations.

A5_3.

Touch Screen POS With Modular Design

Not only does Audrey offer multiple display sizes, but it also has a modular design and comes with a broad selection of POS peripherals and mounting options. Configure your touch screen POS with the processing power your application requires, select from a large range of peripherals and accessories, including different card readers, customer facing displays, printers and find a mounting solution that fits in your space.


Select the Color that Matches Your Interior

Available in rose gold and silver/black finish
A5_5.


Unnamed designs (67)

Built to Last

The durable and fanless design protects the unit from dust and debris and makes it more resistant to shocks and vibrations while providing a completely silent operation. The unit is spill proof to meet the demands in restaurants and other environments where spills easily happen. On top of all this, Audrey A4 is backed by a 5-year warranty for the Windows version.

Key Features


  • All-in-one touch screen POS with 15″ LCD display
  • Support for up to three independent displays
  • Powerful and efficient Intel processors
  • High speed M.2 PCIe  SSD for maximum performance and reliability
  • Up to 32 GB DDR4 RAM for high speed and responsiveness

Optional Features

  • Available for Windows 10/11 and Linux Ubuntu 22.04
  • Full HD display
  • MSR, EMV reader, fingerprint reader and RFID reader
  • Selection of customer facing displays
  • Choose between Wi-Fi or BT connectivity

Interested in Learning More About Partner Tech Products?

Contact us now and we'll be in touch shortly.

Item A4-1-AL (Alder Lake) A4-1-E (Elkhart Lake)
Size 15"
Aspect Ratio 4:3
Resolution 1024 x 768
Brightness 400nits
Touch PCAP touch
CPU Alder Lake-P
Intel® Core™ i3-1215U
Intel® Core™ i5- i5-1245U, vPro
Intel® Core™ i7-1265U, vPro
Elkhart Lake
Intel® Celeron® J6412
Memory DDR4 4GB, 8GB, 16GB, 32GB DDR4 4GB, 8GB, 16GB, 32GB
Storage M.2 PCIe SSD: 128GB / 256GB / 512GB M.2 PCIe SSD: 128GB / 256GB / 512GB
I/O Ports 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3)
1 x Intel LAN (IEEE 802.3 10/100/1000 Mbps) 1 x LAN (IEEE 802.3 10/100/1000 Mbps)
1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting
1 x DC + out 12V 1 x DC + out 12V
4 x USB 3.2 + 2x USB 2.0 3 x USB 3.2 + 3 x USB 2.0
1 x DC +12V input 1 x DC +12V input
1 x audio (1 x line-out) 1 x audio (1 x line-out)
1 x HDMI 1 x HDMI
1 x Type-C (data transfer + display) 1 x Type-C (data transfer + display)
Speaker 1 x speaker (3W)
Peripheral Options Encrypted MSR, EMV reader, fingerprint reader, RFID/NFC reader, 2D barcode scanner, 5MP camera, I/O expansion box (EX-100, EX-101, EX-300), thermal printer, printer stand (PS-103 Cosmo compatible with RP-700 or Epson TM-T70 II), cash drawer, customer-facing displays (VFD, 10.1", 11.6", 15.6")
Wireless Options Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2
BT 5.3
Display Support Three independent displays (main display + HDMI + Type-C) Three independent displays (main display + HDMI + Type-C)
Spill & Dust Resistance Front panel IP65, whole unit IP54 certified
Operating System 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit)
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
3. Linux Ubuntu 22.04 3. Linux Ubuntu 22.04
TPM & vPro 1. Intel vPro (i5/i7 CPU only) S/W TPM 2.0 (BIOS)
2. S/W TPM 2.0 (BIOS)
Power adapter AC-In 100~240V / DC-Out 12V, 90W AC-In 100~240V / DC-Out 12V, 65W / 90W
Reliability System operating temperature: 0~40°C/ 32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C/-4~140°F
Dimensions (W x H x D) 360 x 350 x 201 mm / 14.17 x 13.77 x 7.87 in 360 x 350 x 201 mm / 14.17 x 13.77 x 7.87 in
Weight 6.2 kg / 13.67lb 6.2 kg / 13.67 lb
Warranty 5-years (Windows)
