HomeGrace G5
Foldable and Compact All-in-One POS Terminal
15.6-inch touchscreen POS terminal, packed with power in a compact and modern form factor. An excellent value for small and medium stores and restaurants.
SHARE
OVERVIEW
Sleek Design with Triple-Display Support

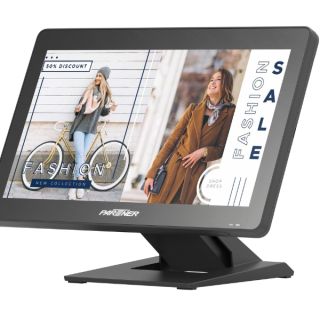

Grace G5 an all-in-one POS terminal with a 15.6-inch PCAP multi-touch display with support for full screen format. The thin bezel gives it a sleek look and the compact design saves valuable counter space in small areas.
G5 supports up to three independent displays, including the main display, a customer-facing display, and a digital signage.
Flexible, Foldable, and Ready for Any Space

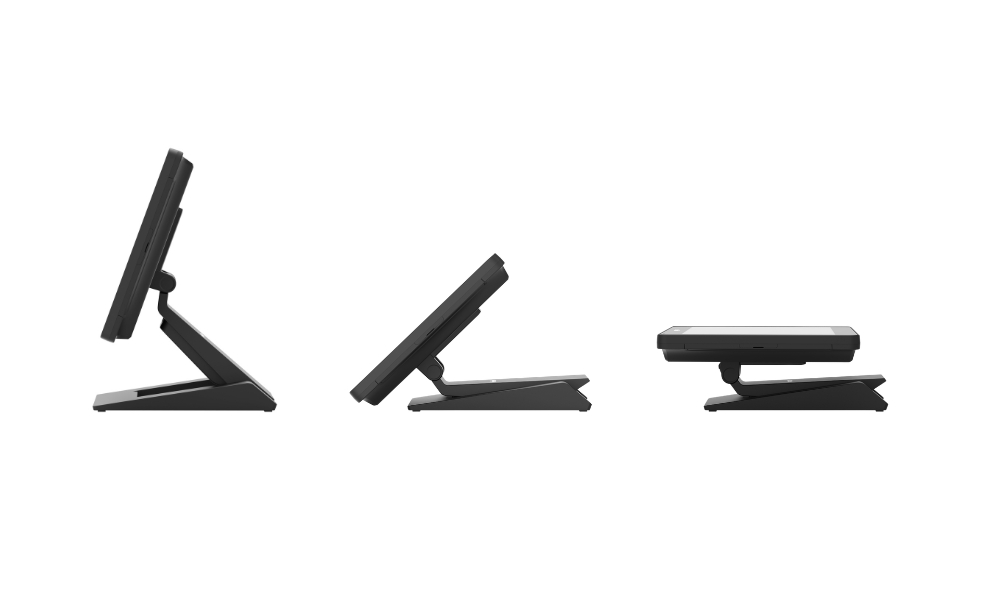

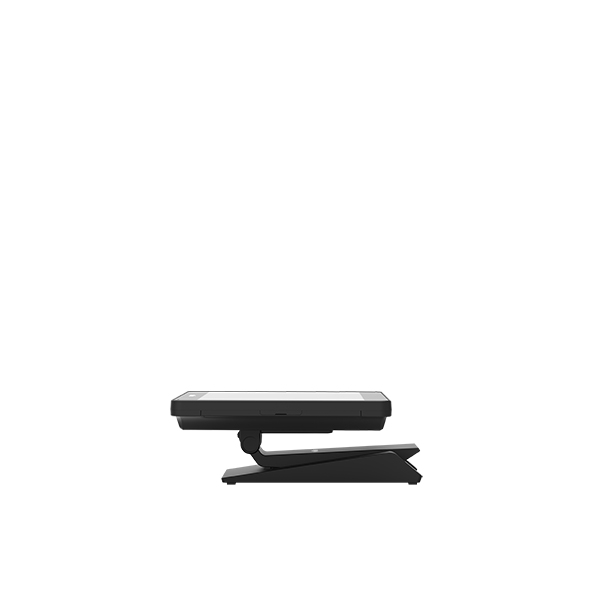

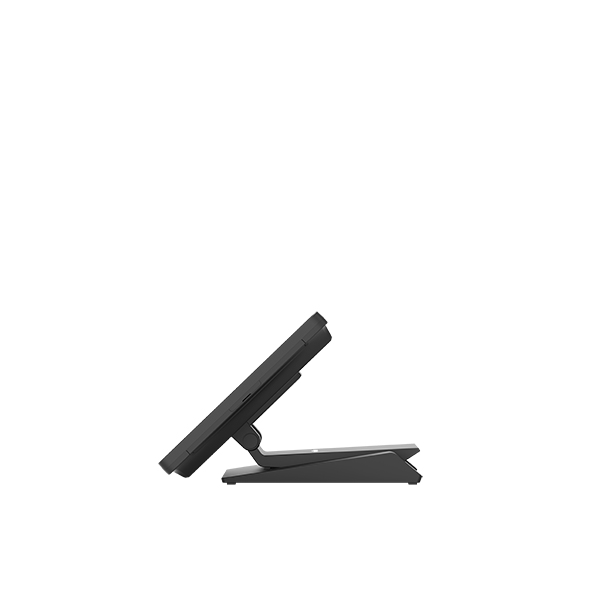

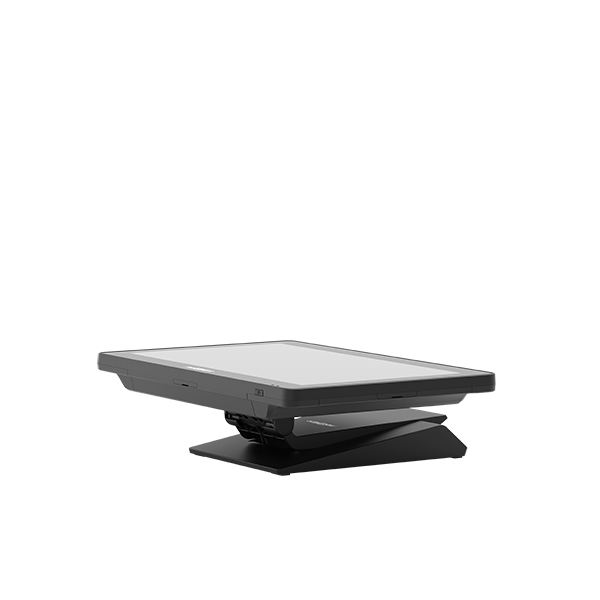

The fully foldable D-base offers maximum flexibility, easy storage, and an adjustable angle for optimal screen visibility in tight spaces. G5 also supports the T-base, the Cosmo PS-103 printer stand, and standard VESA mounts, providing versatile installation options for any environment.
Blazing Speed & Performance
Powered by Intel Alder Lake or Elkhart Lake processor combined with a M.2 PCIe solid-state drive and up to 32 GB DDR4 RAM memory, G5 can run data intensive POS applications for many years to come. The SSD is easily accessible from the back of terminal in case the memory needs to be upgraded at a later time.
Built to Connect. Ready to Scale.
G5 features a wide range of integrated ports to support seamless connectivity with essential retail peripherals – from barcode scanners, cameras, customer-facing displays, and digital signage to receipt printers, cash drawers, and MSR/EMV readers. Partner Tech also offers a full portfolio of compatible peripherals, ensuring reliable integration and a streamlined deployment experience.
IP-Rated Protection with Proven Reliability
The durable and fanless design protects G5 from dust and dirt as well makes it more resistant to shocks and vibrations while it provides a completely silent operation. The unit's front panel is IP65-rated and spill proof to meet the demands in restaurants and other environments where spills easily happen. On top of all this, G5 is backed by a 3-year warranty.
Key Features
- Intel Alder Lake or Elkhart Lake processor
- Windows 11 IoT Enterprise LTSC 24H2 (64bit) & GAC (64bit)
- Windows 10 IoT Enterprise LTSC (64bit)
Linux (Ubuntu) - High speed M.2 PCIe SSD
- Up to 32 GB DDR4 RAM
- Supports up to three displays
- 3-year warranty

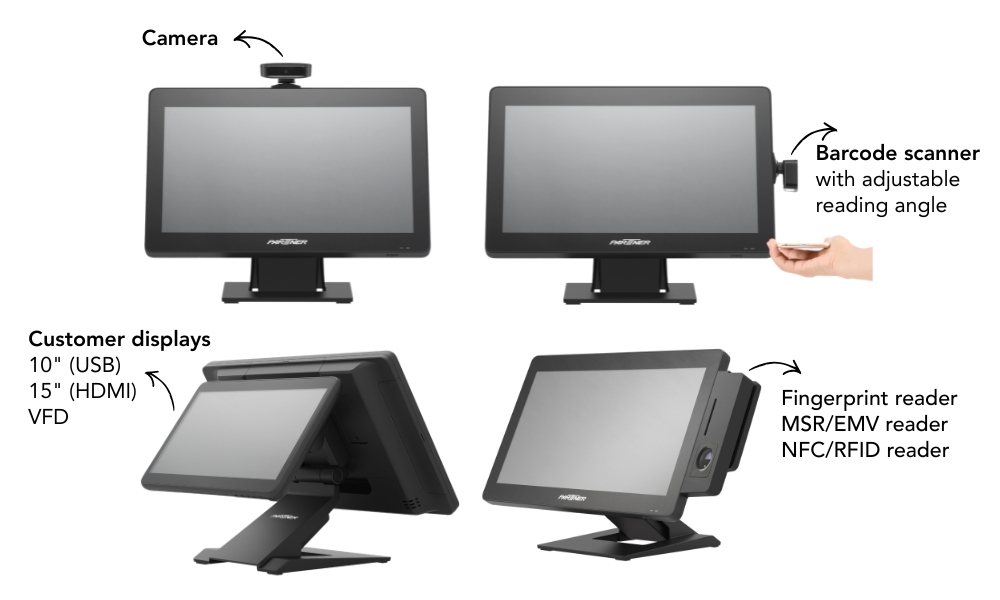

Optional Features
- MSR, EMV reader, RFID/NFC reader
- PS-103 printer stand with powered USB hub
- Camera, barcode scanner, fingerprint reader
- VFD, 10", 15.6" customer displays
- Several different mounting solutions
- Wi-Fi 6E
Interested in Learning More about Partner Tech Products?
Contact us now and we'll be in touch shortly.
| G5-1-AL (Alder Lake) | G5-1-E (Elkhart Lake) | |
| Size | 15.6" | |
| Aspect Ratio | 16:9 | |
| Resolution | 1366 x 768 | |
| Brightness | 220 nits | |
| Touch | PCAP multi-touch display | |
| CPU | Alder Lake-P Intel® Core™ i3-1215U Intel® Core™ i5- i5-1245U vPro Intel® Core™ i7-1265U, vPro |
Elkhart Lake Intel® Celeron® J6412 |
| Memory | DDR4: 4GB, 8GB, 16GB, 32GB | |
| Storage | M.2 PCIe SSD: 128GB / 256GB / 512GB | |
| I/O Ports | 3 x serial ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | |
| 1 x Intel LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | 1 x Intel LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | |
| 1 x RJ11 port with support for 2 cash drawers with 24V/12V jumper setting | ||
| 1 x DC + 12V out | ||
| 4 x USB 3.2 + 2 x USB 2.0 | 2 x USB 3.2 + 4 x USB 2.0 | |
| 1 x DC + 12V input | ||
| 1 x audio (1 x line-out) | ||
| 1 x HDMI | ||
| 1 x Type-C (data transfer + display) | N/A | |
| Speaker | 1 x speaker (3W) | |
| Peripheral Options | MSR, EMV reader, RFID/NFC reader, fingerprint reader, 2D barcode scanner, camera, cash drawer VFD, 10.1" 2nd display (USB), 15.6" 2nd display (HDMI) |
|
| Wireless (option) | Intel AX210 Wi-Fi 6E (supports IEEE 802.11 a/b/g/n/ac/axR2) BT5.3 |
|
| Display Support | 3 independent displays (main display + HDMI + Type-C) | 2 independent displays (main display + HDMI) |
| Spill & Dust Resistant | Front panel IP65 | |
| Operating Systems | Windows 11 IoT Enterprise GAC (64bit) | |
| Windows 10 IoT Enterprise LTSC 21H2 (64bit) | ||
| Ubuntu 22.04 | ||
| Firmware | Intel V-Pro (i5/i7 CPU only) | N/A |
| S/W TPM 2.0 (BIOS) | ||
| Power Supply | AC-In 100~240V / DC-Out 12V, 65W/90W | |
| Reliability | System Operating Temperature: 0~40°C / 32~104°F | |
| System Humidity: 15% ~ 80% | ||
| Storage Temperature: -20~60°C/-4~140°F | ||
| Base | D-base (fully foldable), T-base, Cosmo PS-103 printer stand | |
| Mount | Standard VESA | |
| Dimensions (W x H x D) | 392 x 291 x 224 mm / 15.43 x 11.46 x 8.82 inch | |
| Weight | 5 kg / 11.02 lb | |
| Warranty | 3 years | |
