Ethan E5

All-in-one Touch Screen POS Terminal

All-in-one POS terminal with a 15.6" touch display.

SHARE

未命名設計 (44)

A Smart Investment Now

Retailers are challenged to operate as efficiently as possible, while still providing great customer experiences. The Ethan E5 touch POS terminal supports dual LAN, one network for internal ERP and secure data transfers and another one for Internet-based appplications such as CRM and other marketing systems.

4

A Future-proof Investment

Partner Tech’s E5 offers you the flexibility to scale as your business needs change. This touch POS terminal supports up to three individual displays, including the main screen, guest-facing display and digital signage.


3

Flexible Interface

No matter what kind of interfaces your devices requires. The design of the E5 allows more flexibility



1

Use as POS Terminal and Kiosk

The E5 POS terminal is designed for multitasking. It can serve as both POS terminal and mini-kiosk. The all-In-one stand with the thermal printer integrated, conceals all cables and keep the counter clutter-free. Only one power adaptor is required to support all operations for both E5 and the thermal printer, it is an ideal solution for businesses and services that require for mobility.

未命名設計 (68)


Built to Last

The durable and fanless design protects the unit from dust and debris and makes it more resistant to shocks and vibrations while providing a completely silent operation. The unit is spill proof to meet the demands in restaurants and other environments where spills easily happen. On top of all this, Ethan E5 is backed by a 5-year warranty.

Key Features


  • 15.6" wide screen all-in-one POS with FHD resolution and PCT
  • Intel Kaby Lake or Apollo Lake high-performance CPU
  • IP65-rated front panel, whole device IP54-certified
  • Maintenance and service friendly design
  • Support up to 3 independent displays (operation, customer-facing display and digital signage)
  • Optional expansion I/O for various POS applications

Optional Features


  • Integrated peripherals: MSR, EMV reader, RFID reader, fingerprint reader, camera
  • VFD, 11.6", 15.6" 2nd displays
  • UVC light


Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.

Item​ E5 (Kaby Lake)
Display​ 15.6”
Aspect Ratio 16:9
Resolution 1366x768
Brightness (typical) 220 nits
Touch​ PCAP​
CPU​ Intel Celeron 3965U (Kaby Lake)
Intel® Core™ i3-7100U (Kaby Lake)
Intel® Core™ i5-7300U (Kaby Lake)
Memory​ 2 x 260 pin DDR4 SO-DIMM-2133 vertical type, Standard Spec: 4GB, 8GB, 16GB
Storage​ HDD Standard: 500 GB; SSD Standard: 64G / 128 GB / 256 GB
External I/O Interface​ 2 x Serial ports, RS-232 (RJ45), 0V/5V/12V selection by BIOS (COM1, COM2)​
2 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45)​
1 x RJ11 port with for support for 2 cash drawers with 24V / 12V jumper setting
1 x DC + 12V out​
4 x USB Type-A ports (USB 3.0/2.0)
1 x DC + 12V input power jack
1 x Audio (1 x line out)​
1 x HDMI port
1 x VGA​
Expansion I/O (Factory options) Option 1: 1 x serial port, RS-232 (DB9, COM3, 0V/5V/12V selection in jumper setting) + 2 x USB Type-A (USB3.0/2.0)
Option 2: 2x serial ports, RS-232 (DB9, COM3 & COM4, 0V/5V/12V selection in jumper setting)
Option 3: 1 x serial port, RS-232 (DB9, COM3, 0V/5V/12V selection in jumper setting) + 1 x DB25 LPT 4. 2 x USB Type-A (USB3.0/2.0) + powered USB (12Vx1 + 24Vx1)
Optional Powered USB on the stand 4 x powered USB (3x12V + 1x24V, on the SP-1060 stand or PS-103)
Remark: No optional powered USB on the stand if the powered USB is installed on E5
USB 2.0 at the side USB 2.0 port at the side of POS PC for easy maintenance
RAID Function RAID 0/1 (RAID function on Chip, 2nd SATA storage on SP-1060 stand or PS-103)
Speaker 1 x speaker 3W
Peripherals (optional) MSR, EMV reader, fingerprint reader, RFID reader, customer-facing displays, print stand, camera, UVC light
Display Support 3 independent displays (main display + VGA + HDMI)
Expansion Mini-PCIe interface
Optional M.2 SSD M.2 PCIe SSD (Either one option with SATA storage)
Intel V-Pro Yes (i5 CPU only)
OS Support Windows 10 2019 Enterprise IoT LTSB 64-bit, Linux Ubuntu 16.04 / 18.04 64-bit
Adaptor AC-In 100~240V / DC-Out 12V, 90W / 180W
Mounting 75 mm VESA
Durability Front panel: IP65 certified
Whole system: IP54, fanless operation
Reliability​ System Operating Temperature: 32~95˚F for HDD
System Operating Temperature: 32~104˚F for SSD
System Humidity: 15%~80%
Storage Temperature: -4~140˚F
Dimensions​ 15.43" (W) x 12.6" (H) x 9.84" (D)
Weight​ 13.45 Ibs

RELATED PRODUCTS

Audrey A5 II

Next-gen Audrey with more CPU power, ultra-slim bezel & brighter display.

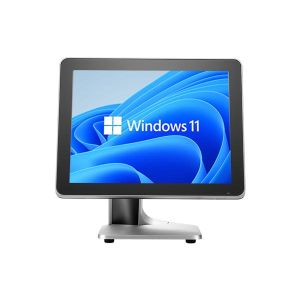

Audrey A4

Sleek, all-in-one touchscreen POS with 15″ display.

Audrey A5

Sleek all-in-one touchscreen POS with 15.6″ display.

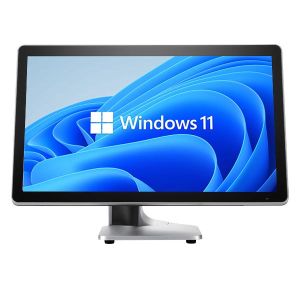

Audrey A7

Sleek all-in-one touchscreen POS with a 21.5″ display.

CLEO C10-1E

Compact 10.1" touchscreen POS terminal with built-in printer.

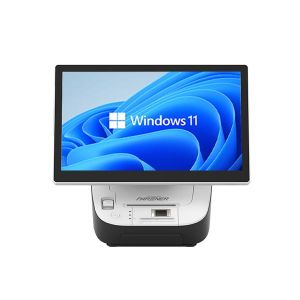

CLEO C14-1E
