Joy J14 (Windows)

14-inch Touch POS Computer

Packed with power, flexible connectivity options and a flip-over base, Joy J14 is one great POS terminal for many different applications.

SHARE

A5_1

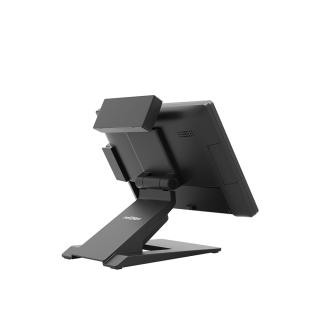

Space-Saving, Low-Profile Design

Compact with a low-profile design and a flip over the base, the Joy J14 provides ultimate flexibility and takes up minimal counter space. With all cables concealed inside the base, your checkout counter looks clutter-free and well organized.
Unnamed designs(24)


Blazing Speed ​​& High Performance

Don't let your POS slow down the checkout process and cause longer wait times. The Joy J14 is available with Windows 10 or 11 and Linux Ubuntu 22.04, powered by a powerful Intel Celeron processor and a fanless M2 SSD drive with ample memory to ensure high performance and speed regardless of the application.

A5_3

Flexible Display & Peripherals

Joy J14 supports a second customer-facing display, offering a choice of displays ranging from VFD to 15 inches. Additionally, the Joy is available with a wide range of POS peripherals, including MSR, EMV reader, barcode scanner, and more, along with a standard VESA mount that provides flexible mounting options.

Unnamed designs(26)


Unmatched Connectivity

Wireless connectivity and support for both Bluetooth and Wi-Fi as well as a wide array of ports, including a Type-C USB, readily accessible by simply flipping the display over, Joy offers numerous connectivity options for all your POS peripherals. Moreover, Joy can be seamlessly combined with the EX-300, an external I/O expansion box that further enhances connectivity possibilities.

A5_3

Flexible Display & Peripherals

The durable and fanless design protects it from dust and debris, enhancing its resistance to shocks and vibrations while ensuring completely silent operation. Additionally, the front panel is spill-proof, meeting the demands of restaurants and other environments prone to spills. To top it all off, Joy comes with a 5-year warranty for added peace of mind.

Key Features


  • All-in-one touch screen POS with 14" PCAP display
  • Powerful Elkhart Lake Intel processor
  • Support for two independent displays
  • High speed M.2 SSD for maximum performance and reliability
  • Up to 32GB DDR4 RAM
  • IP65-rated front panel
  • Flip-over, compact base

Optional Features

  • Available for Windows 10/11 and Linux Ubuntu 22.04
  • Choose between VFD, 10", 11.6", 15" customer-facing displays
  • MSR, EMV reader, fingerprint reader, RFID reader, 2D barcode scanner, camera, cash drawer, thermal printer
  • Wi-Fi and BT connectivity

Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.

Item​ Joy J14-1E (Elkhart Lake)
Display​ 14”
Aspect Ratio 16:9
Resolution 1366 x 768
Brightness 220 nits
Touch​ PCAP​ touch
CPU Intel Celeron J6412 (Elkhart Lake)
Memory​ DDR4 with 4GB, 8GB, 16GB, 32GB
Storage​ M.2 PCIe SSD: 128GB/256GB/512GB
I/O Interface​ 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selection in BIOS (COM1, COM2)​
1 x LAN (IEEE 802.3 10/100/1000 Mbps)
1 x RJ11 port with for support for 2 cash drawers with 24V/12V jumper setting
1 x DC + 12V out​
2 x USB 3.2 + 4 x USB 2.0
1 x DC + 12V input
1 x audio (1 x line out)​
1 x HDMI
1 x Type-C (data transfer only)
I/O Extension Ports Option 1: 2 x serial ports, RS-232 (RJ45), RI/5V/12V selection by BIOS (COM3, COM4)
Option 2: 1 x serial ports, RS-232 (DB9), RI/5V/12V selection b y BIOS (COM3)
Option 3: 2 x USB 2.0
Speaker 1 x 3W speaker
Peripherals (options) MSR, EMV reader, fingerprint reader, 5MP camera, 2D barcode scanner, receipt printer, cash drawer
Customer-facing displays (VFD,10.1" CD-101C, 11.6" PM-116, 15.6" PMC-156)
EX-300 I/O expansion box, PS-103 Cosmo printer stand (compatible with RP-700 and Epson TM-T70 II)
Display Support Two independent displays (main display + HDMI)
Wireless Options (option) Wi-Fi 6E Intel AX210
IEEE 802.11 a/b/g/n/acR2/axR2
BT 5.2
Spill & Dust Resistance IP65-rated front panel
Operating System 1. Windows 11 IoT Enterprise GAC (64bit)
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
3. Linux Ubuntu 22.04
TPM & vPro S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V / DC-Out 12V, 65W
Reliability​ System operating temperature: 0~40°C / 32~104°F
System humidity: 15%~80%
Storage temperature: -20~60°C / -4~140°F
Mounting Flip-over T-stand inluded
VESA mount
Dimensions​ (W x H x D) 13.41 x 9.98 x 8.84 in / 341 x 254 x 225 mm
Weight​ 3.18 Kg / 7.01 Ib
Warranty 5 years
