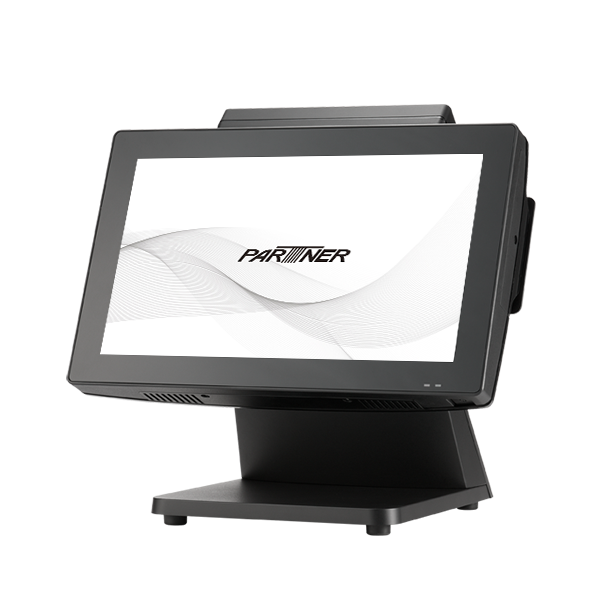

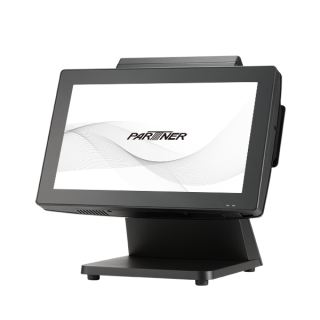

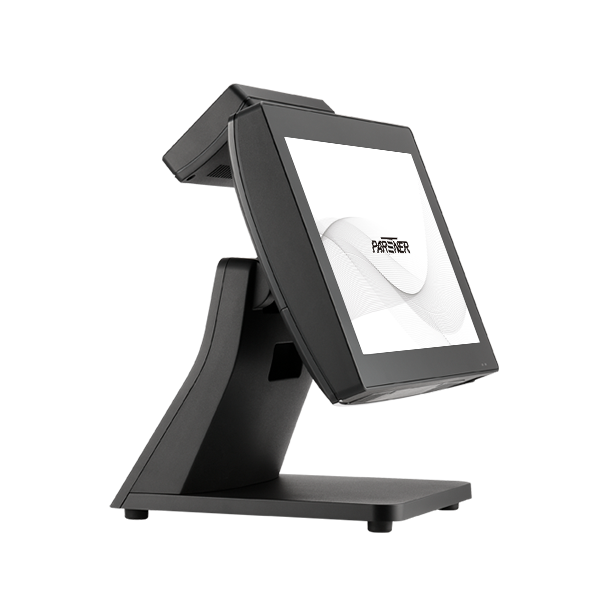

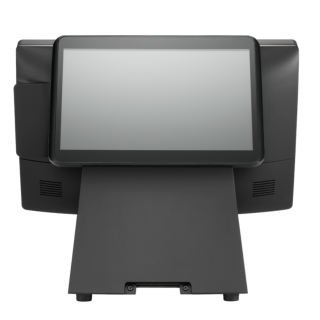

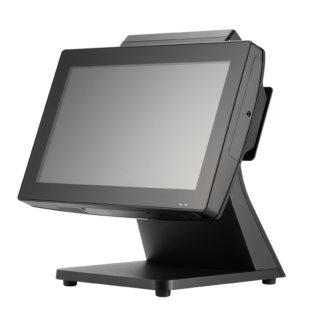

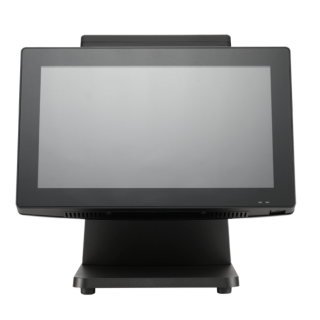

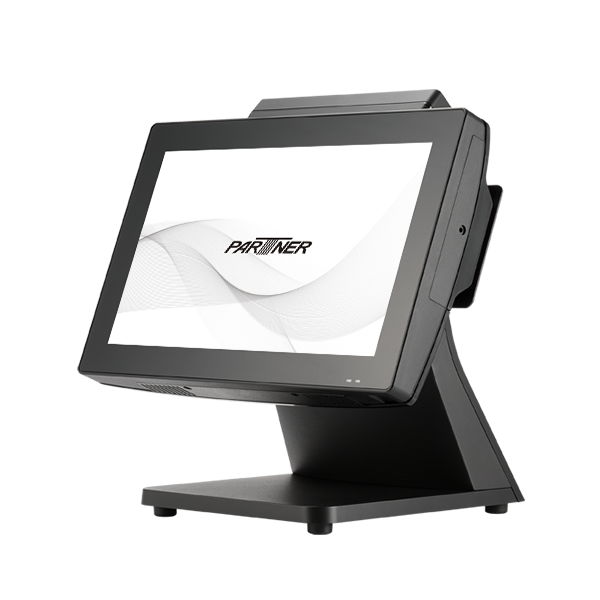

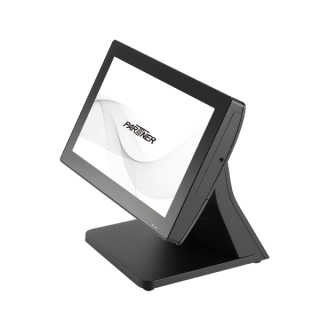

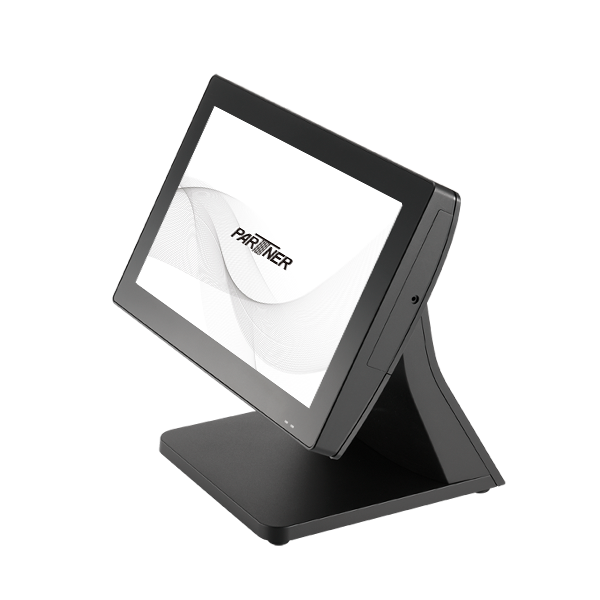

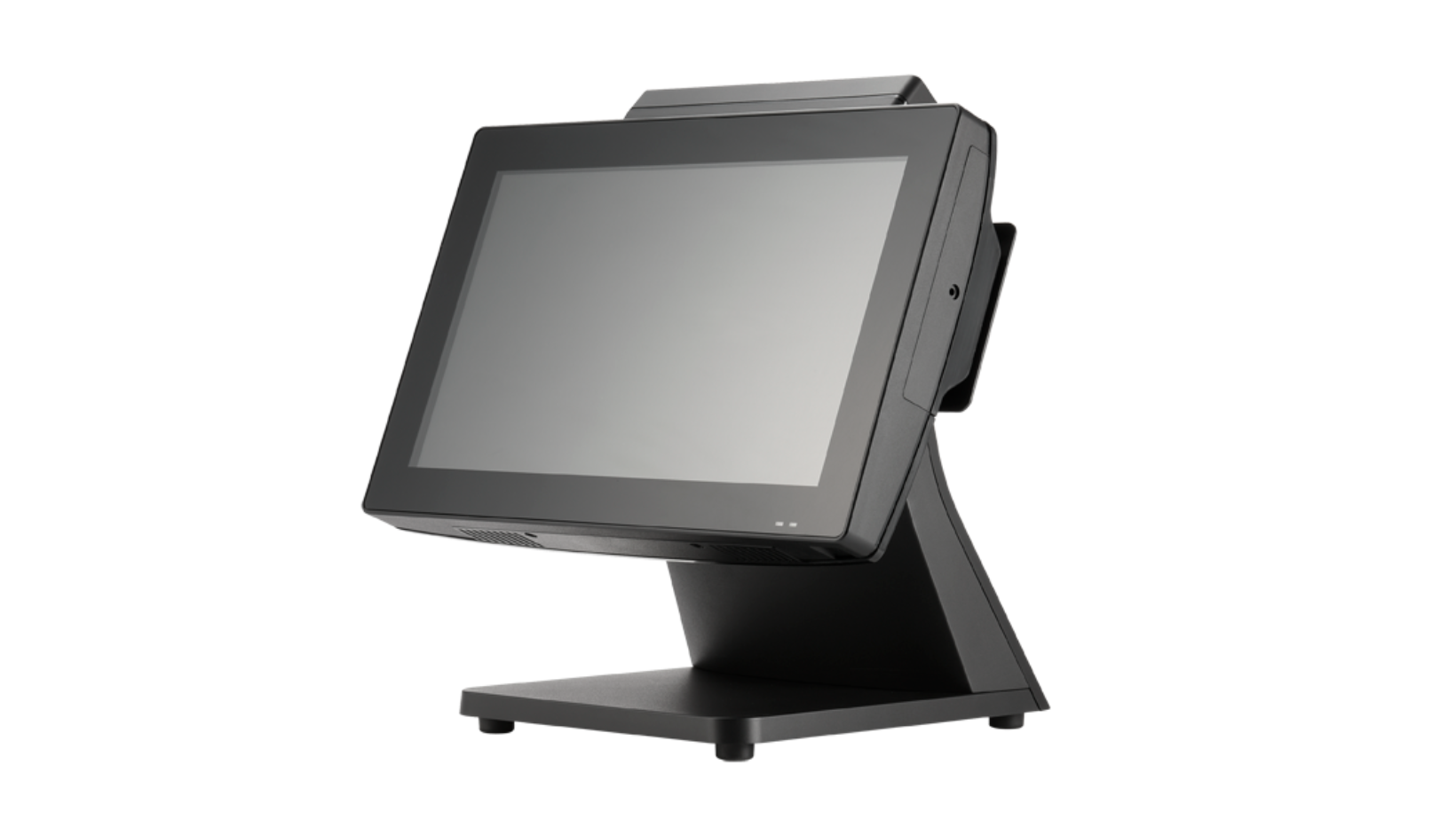

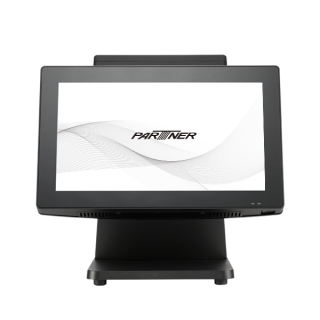

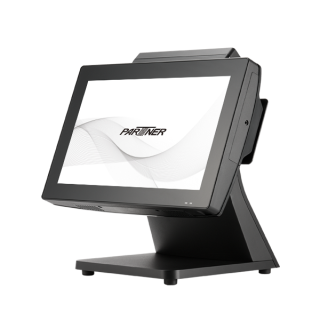

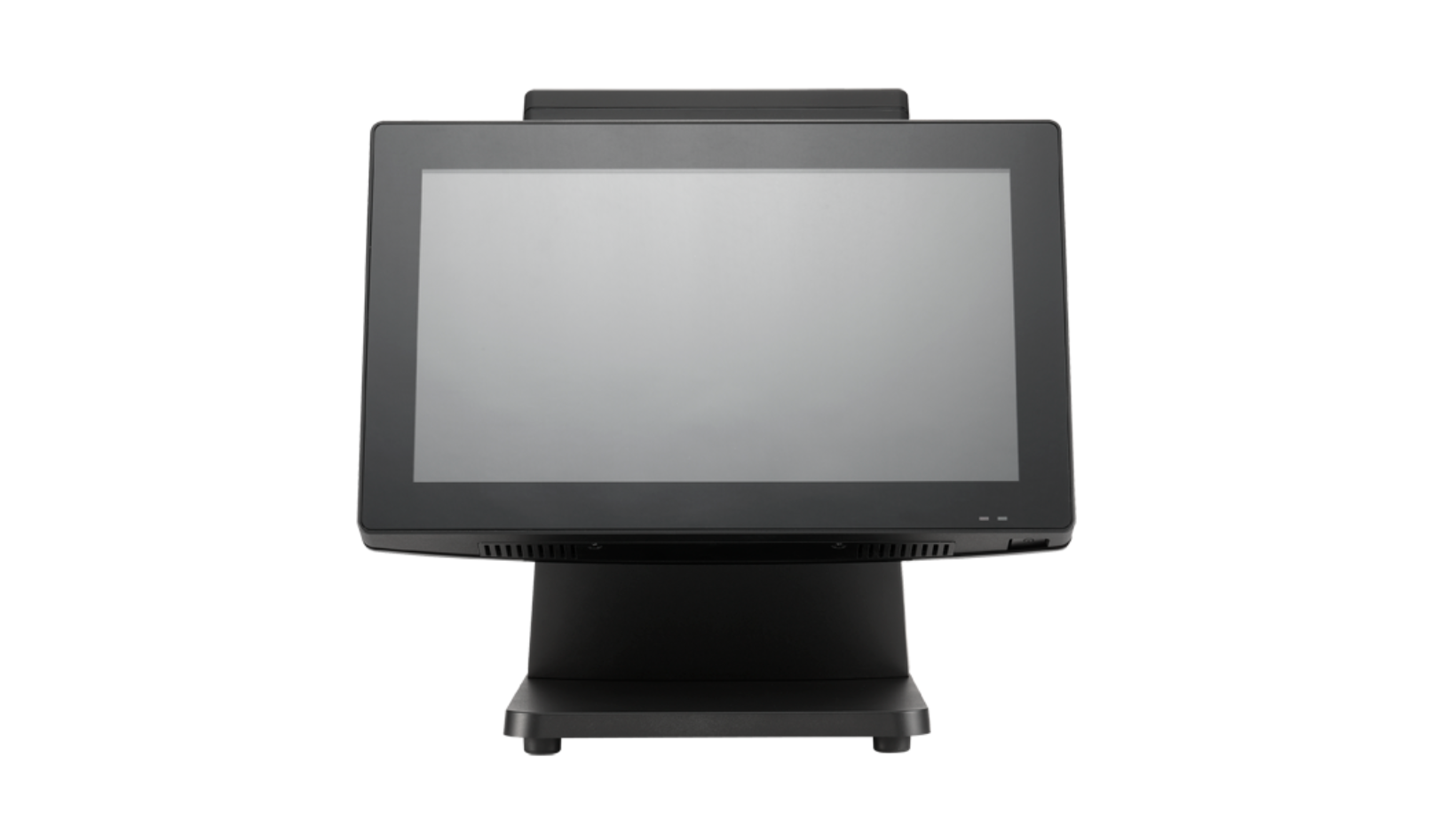

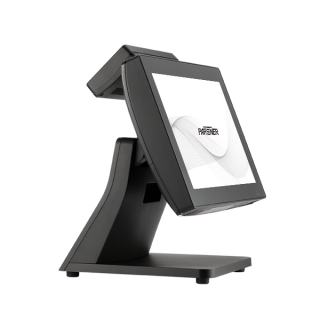

For businesses that need robust point of sale (POS) functionality but don't want to make compromises when it comes to the look and feel of their stores or restaurants, Partner Tech's attractive and stylish all-in-one SP-5514A is the answer.



Workflow Optimization

The SP-5514A has been designed to optimize workflows at the checkout. The 14-inch-wide, 16:9, PCT touchscreen makes it easy for your staff to use — even new employees can use the intuitive touchscreen interfaces\ efficiently almost from day one.

Android Platform

Operating System:
Android 5.1, Android 7.1
CPU: Cortex Quad Core

Flexibile Interface

The SP-5514A’s design allows more flexibility to change the interface depending on your device requirements, allowing a variety of configurations using serial, USB, and optional powered USB 12V x 3 / 24V x 1 for the retail market.


Cost vs. Performance Value is High

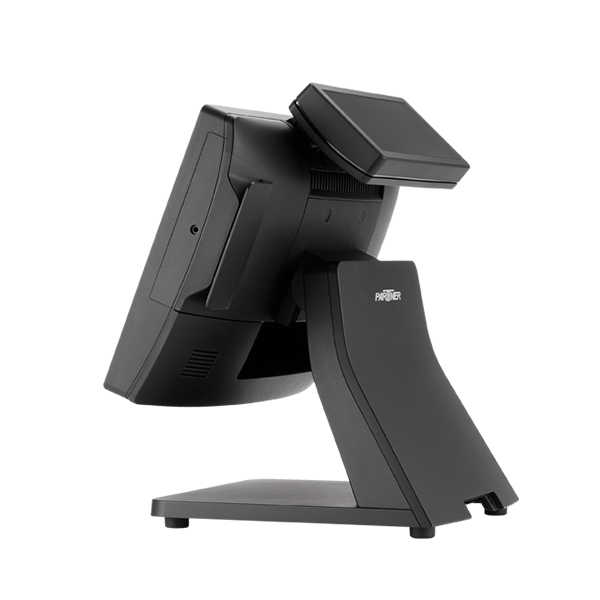

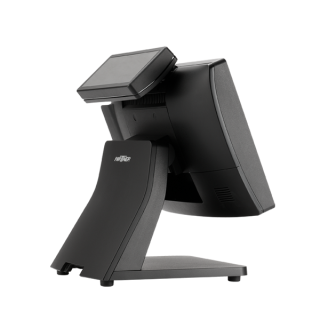

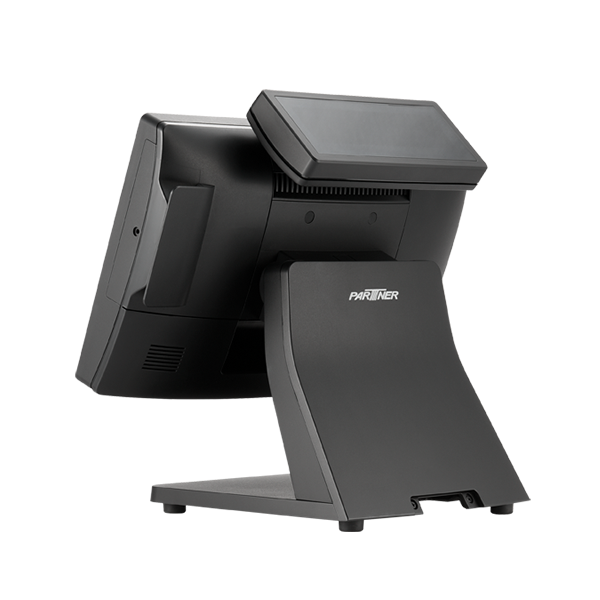

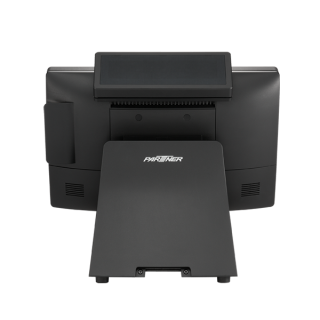

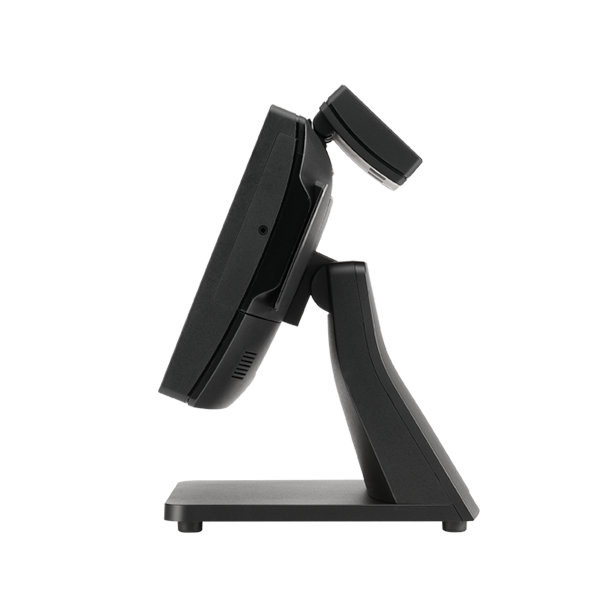

For retailers and restaurateurs looking for the best performance for the investment, the SP-5514A all-in-one POS terminal meets the demand. Merchants can add value with optional customer display, a second monitor, and interface expansion boards.

Key Features

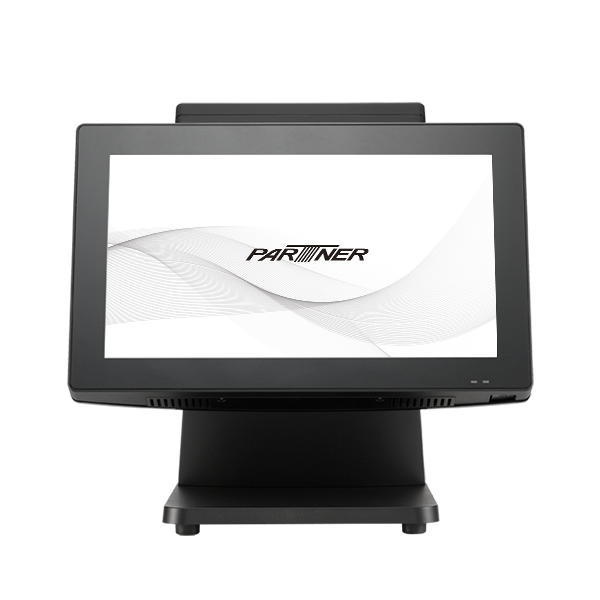

  • Bezel-free 14″ PCAP display (multi-touch)
  • Dust and spray resistant front panel (IP65)
  • Multiple I/O configurations available

Optional Features

  • Available in classic black, metallic gray and silver white

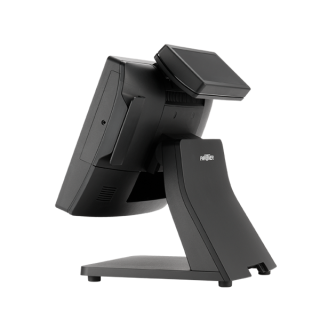

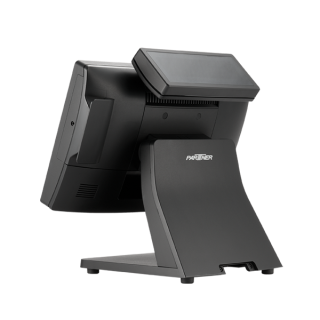

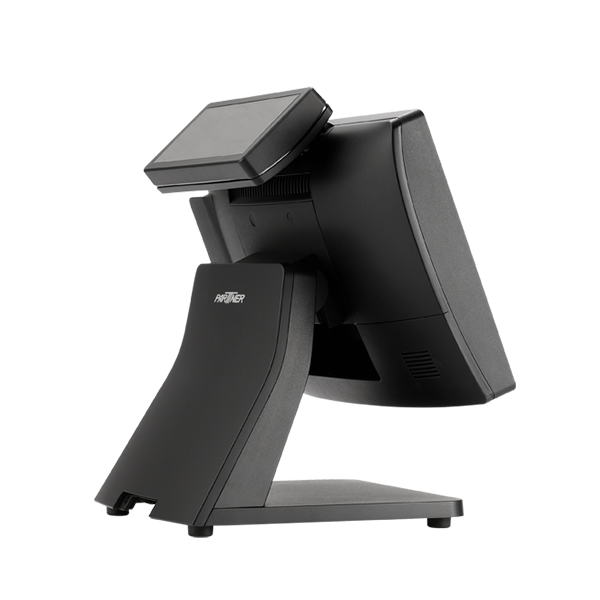

  • Supports second display
  • MSR, Fingerprint reader, RFID reader

Interested in Learning More about Partner Tech Products?

Contact us now and we'll be in touch shortly.
Item SP-5514A
CPU Quad Core
LCD Size Bezel free 14" LED-LCD, resolution 1366 x 768
Touch Projected capacitive touch (Multi Touch)
RAM / Storage Standard: 2G / 16G
Option: 4G / 32G
Connection LAN 1 x RJ-45 10/100 Ethernet
Wi-Fi/BT Option: 802.11b/g/n 2.4G, BT 4.0
 I/O COM Ports 2 x COM ports (1* RJ48, 1* DB9)
USB Ports 4 x USB 2.0 (USB4 support OTG)
RJ45 LAN Port 1 x RJ-45 LAN port
RJ11 Port 1 x RJ11 port (+24V)
MicroSD slot 1 x TF slot (up to 64GB)
Power-jack 1 x DC +12V input power-jack
HDMI 1 x HDMI port
Speaker 1 x 3W speaker (internal)
Operation System Android  7.1
Power Supply AC100~240V/DC+12V, 5.417A, 65W power adaptor
Dimensions 367mm (W) x 252mm (D) x 297mm (H)

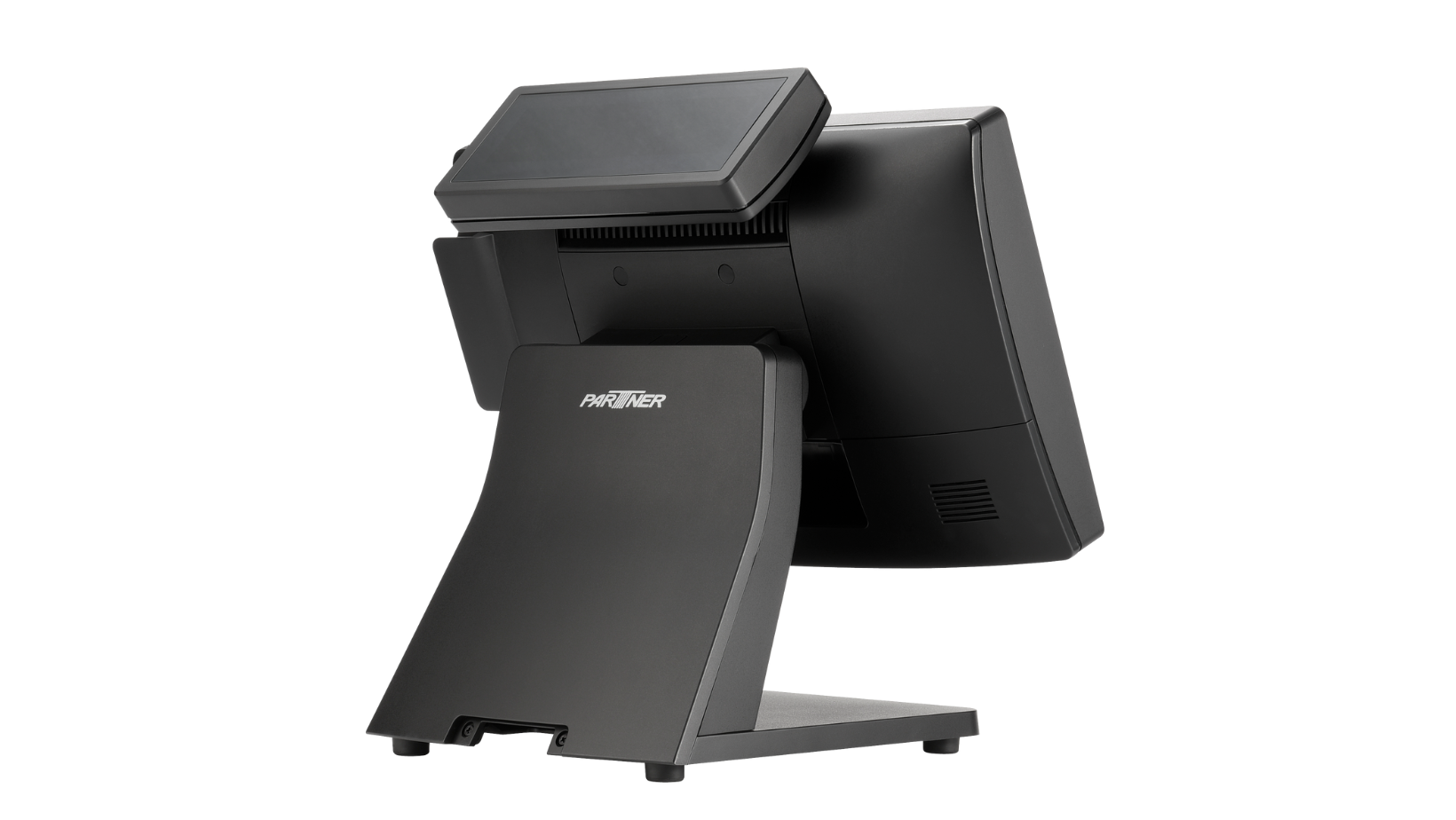

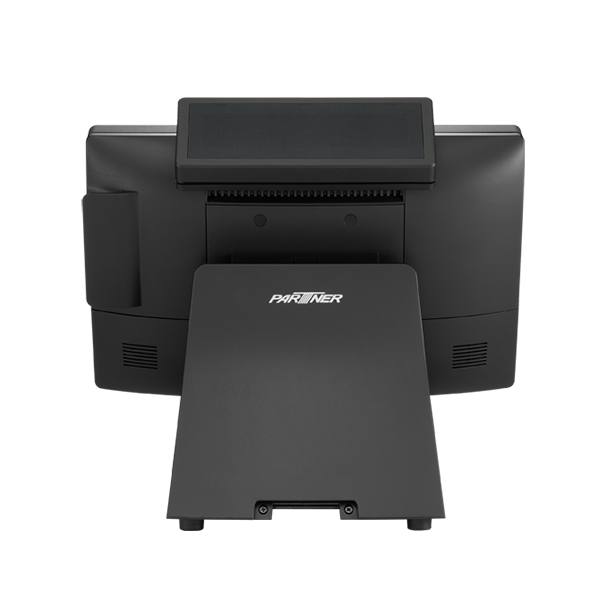

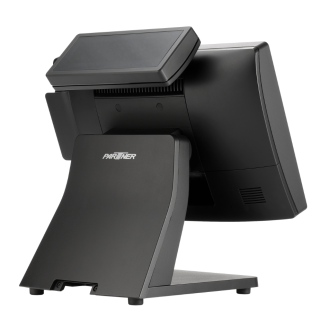

Options Customer Display 2 x 20 VFD

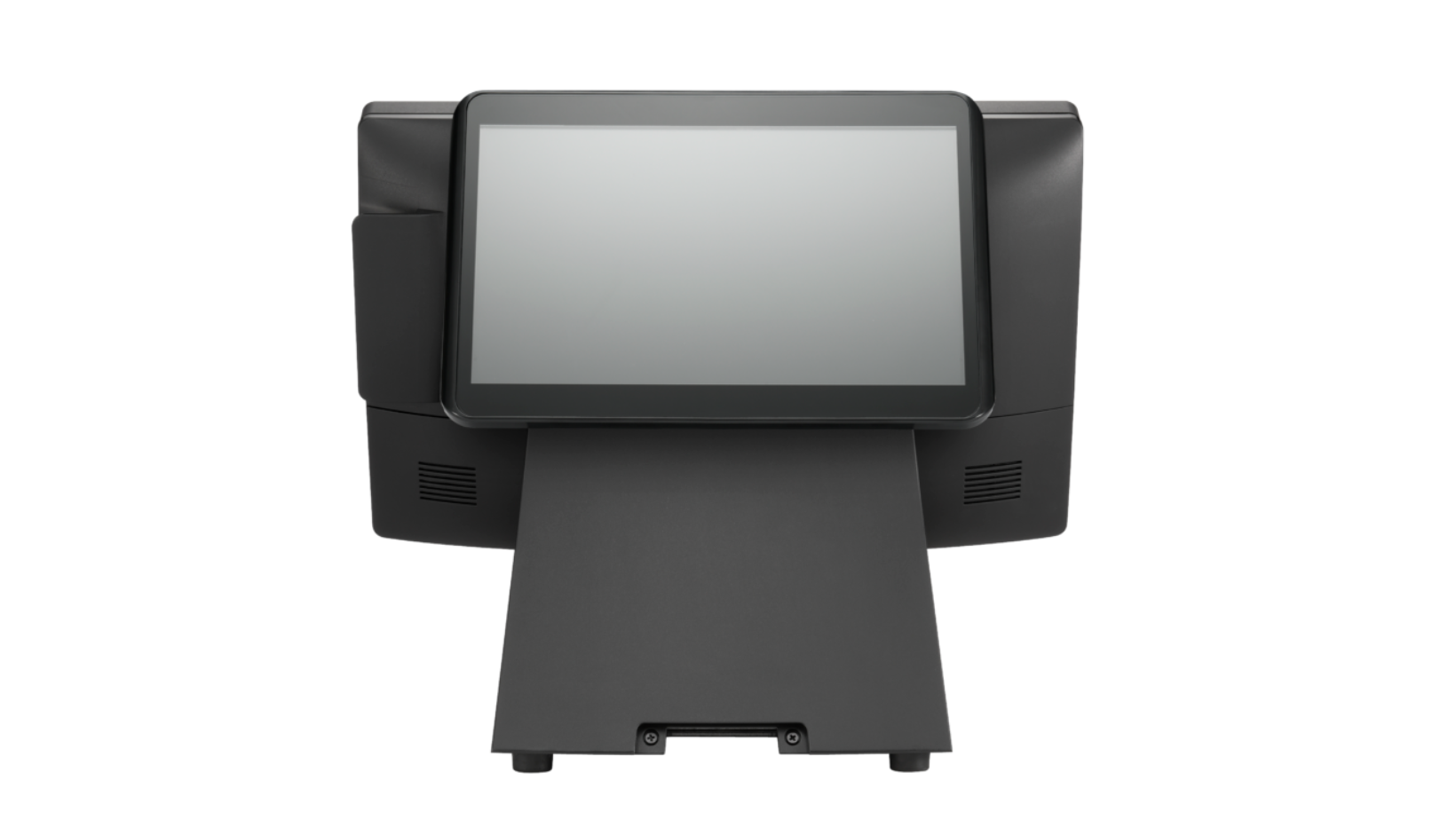

2nd display 10.1” LCD
MSR 3 track, encryption capable
ISO 7811 specification
EMV reader ISO7816-1,2,3 compliant
Below Support 1 out of 2
Finger print reader Encrypted fingerprint data;  Pixel resolution: 512 dpi
RFID reader 13.56MHz, ISO 14443-A/15693/18092
