HomeAlfred PS-137
Self-service kiosk
Maximize your floor space with this elegantly designed, space-saving self-service kiosk. Available with a 21.5" display.
SHARE
OVERVIEW

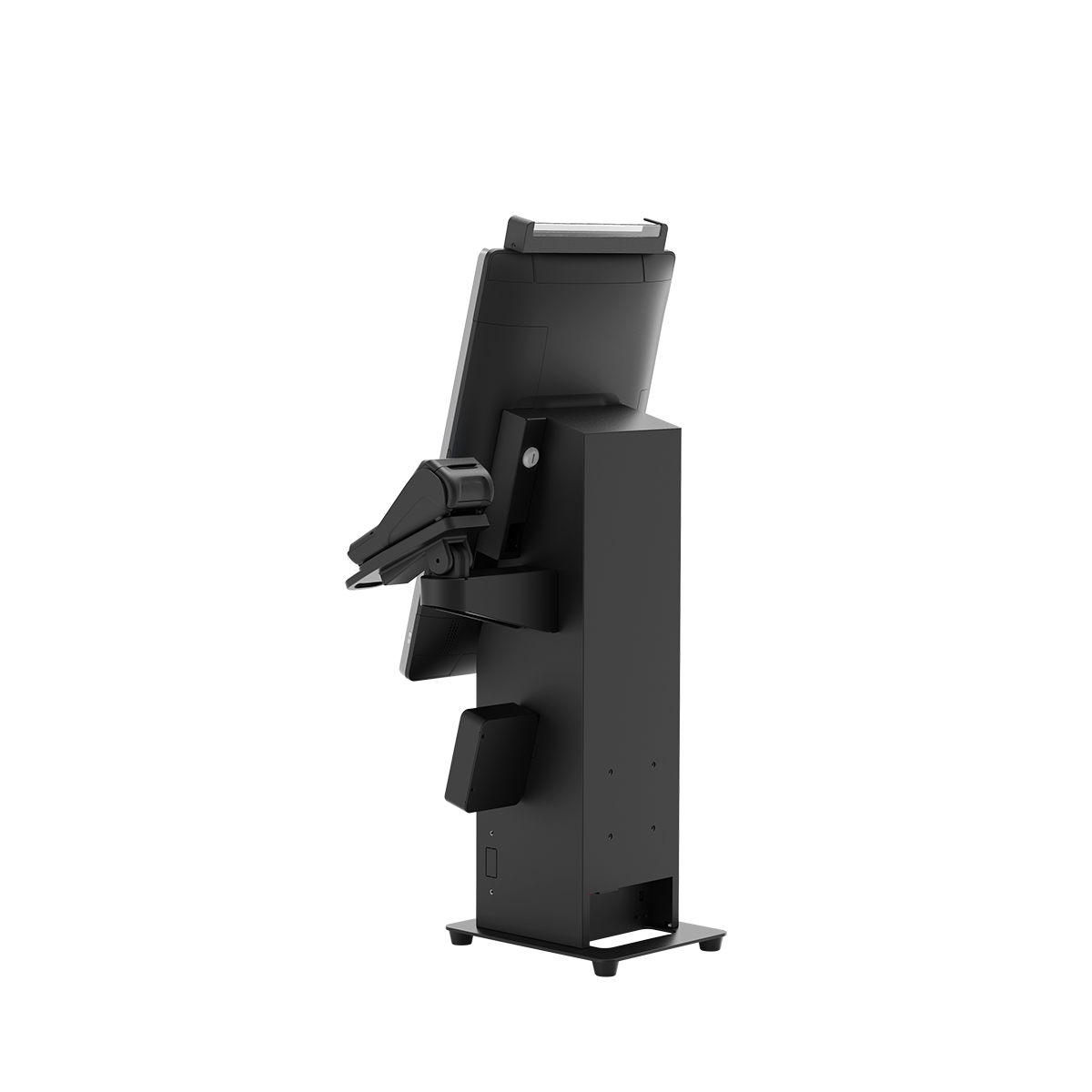

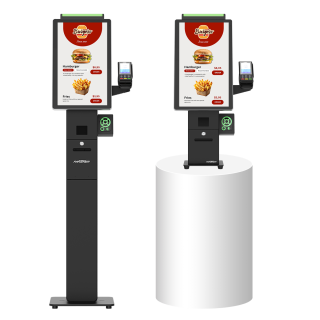

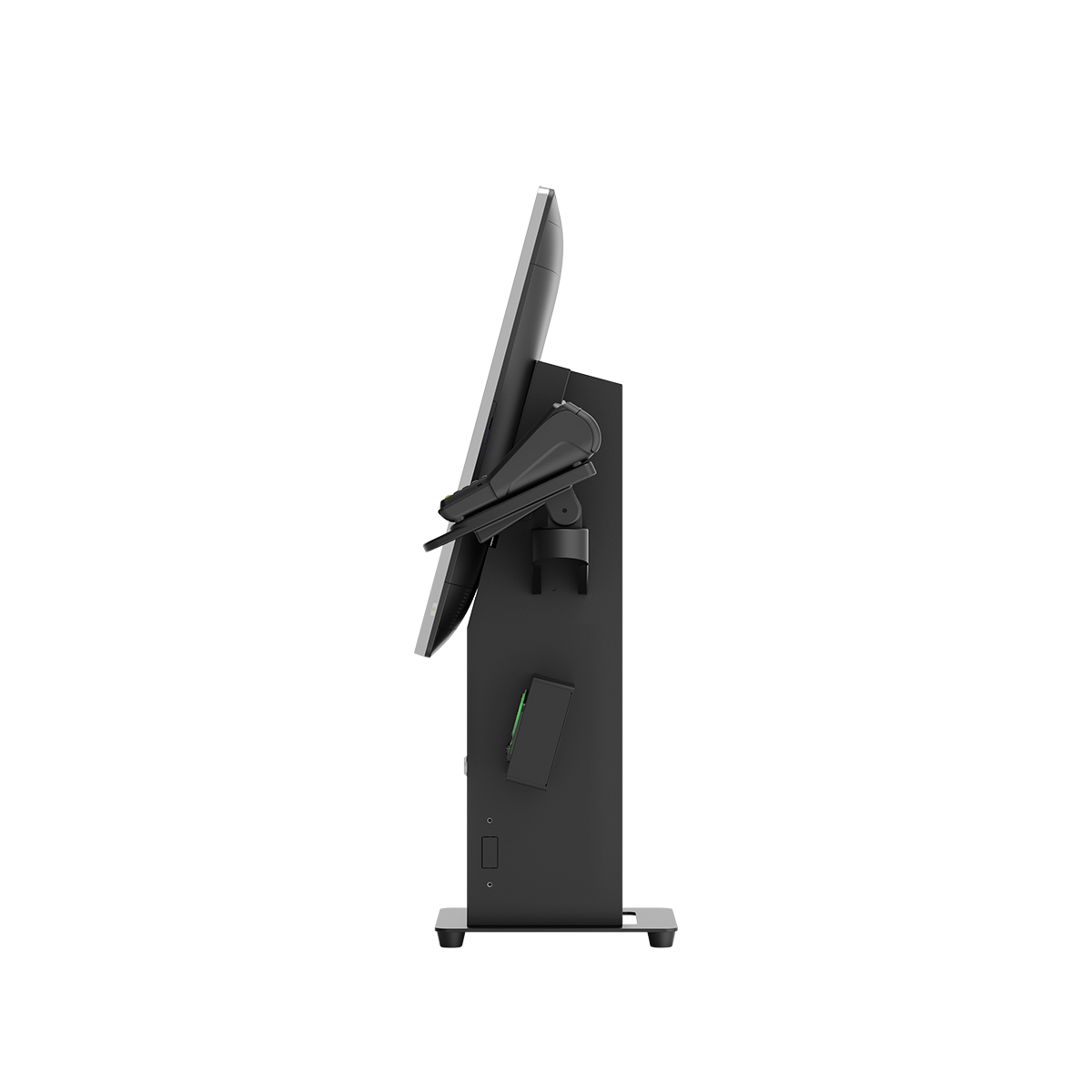

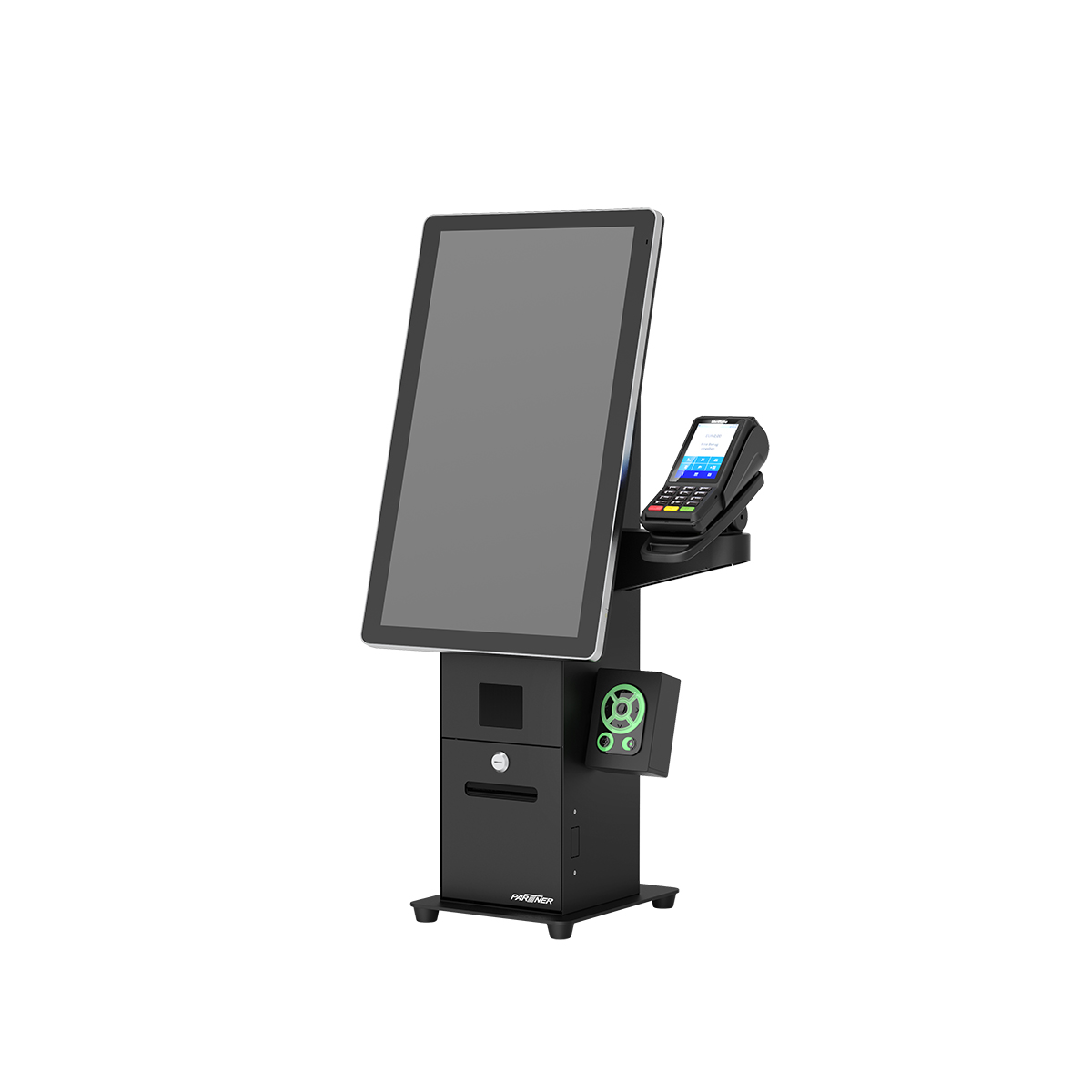

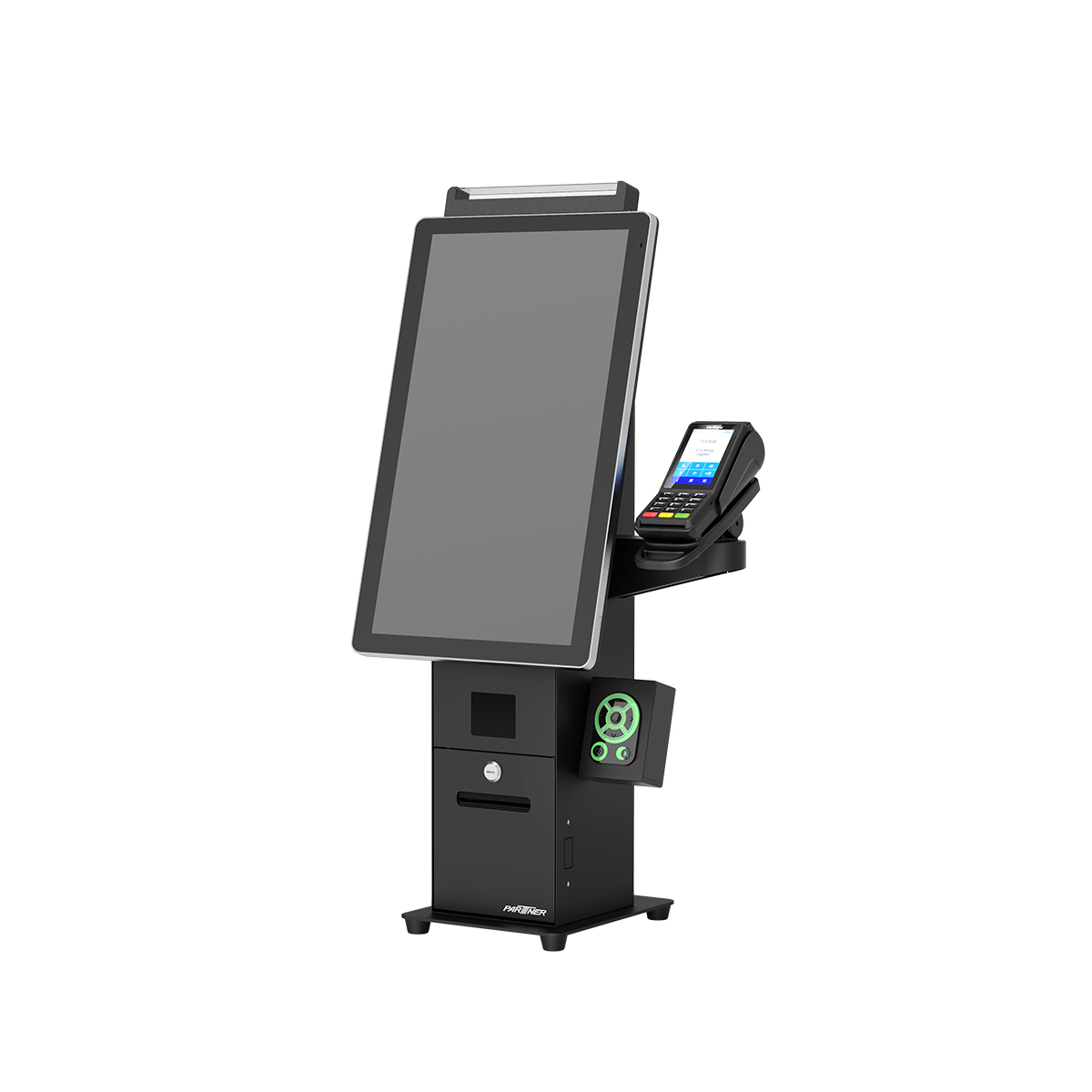

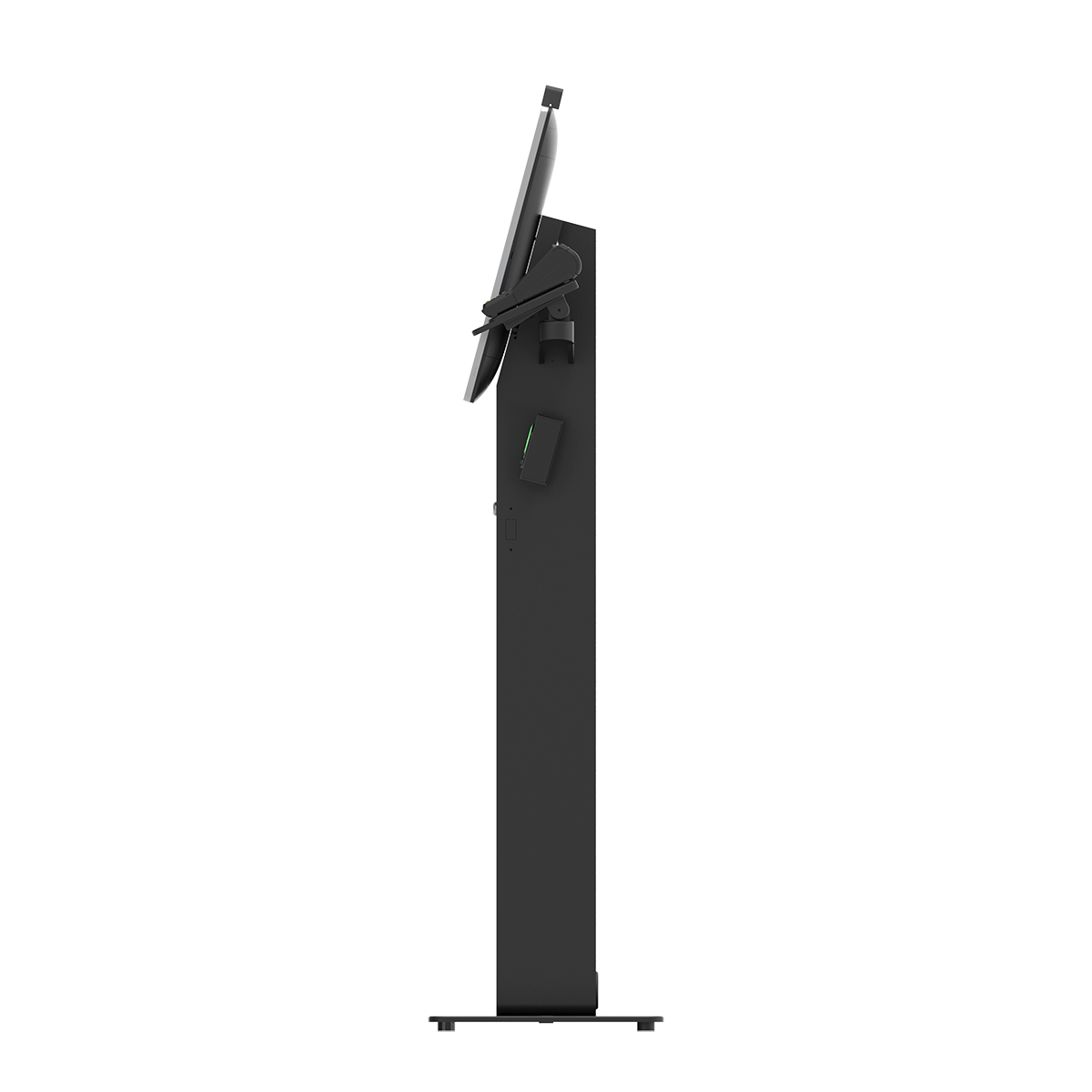

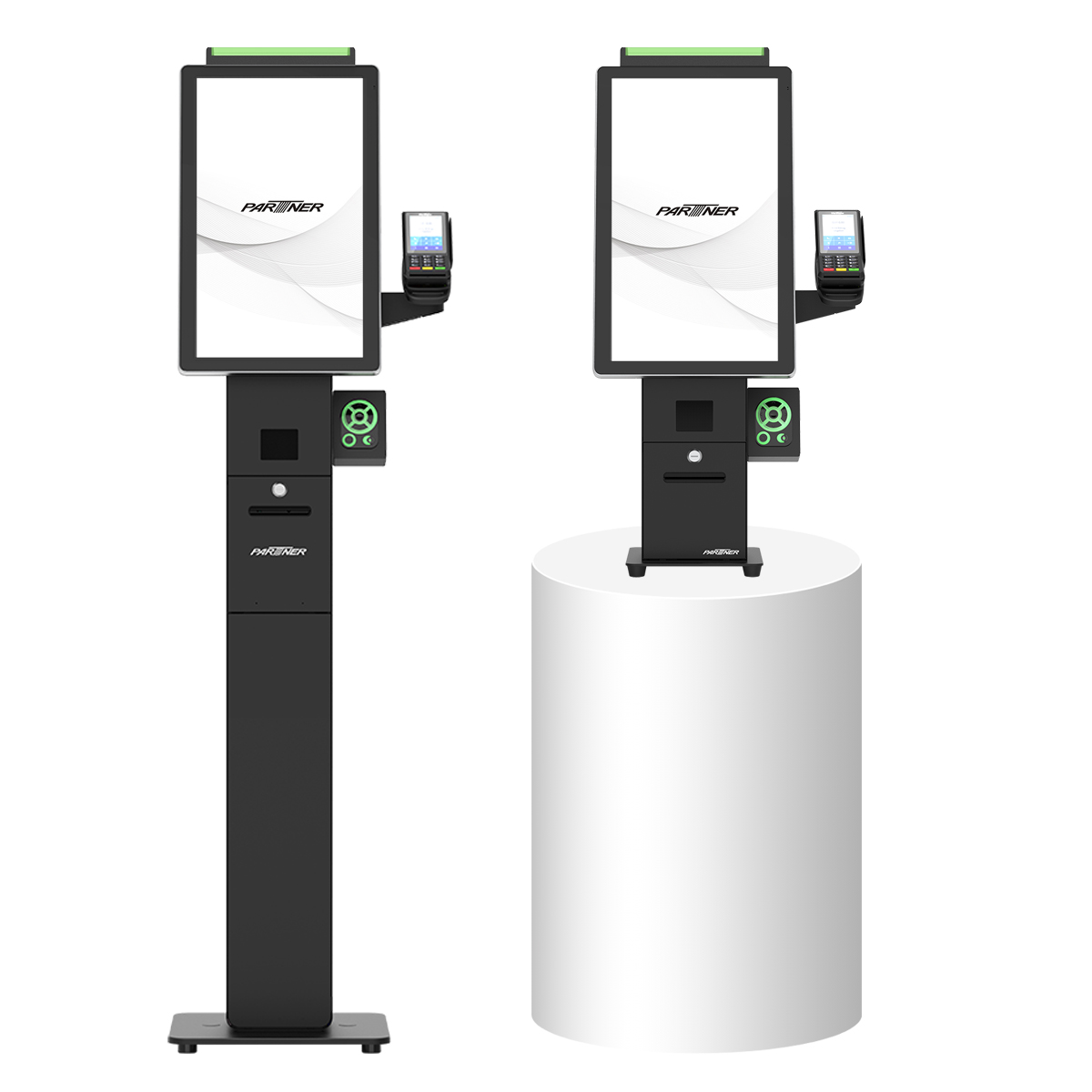

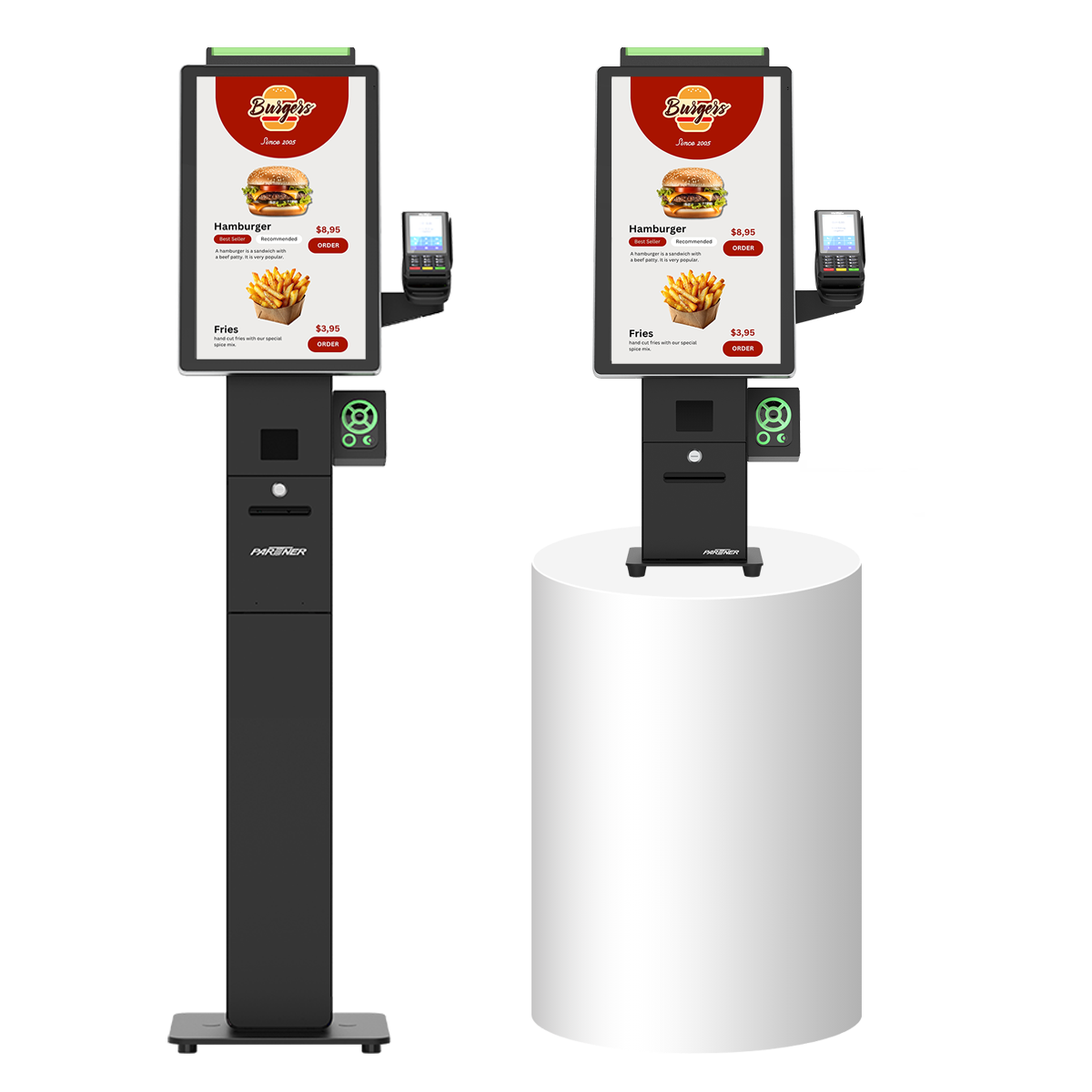

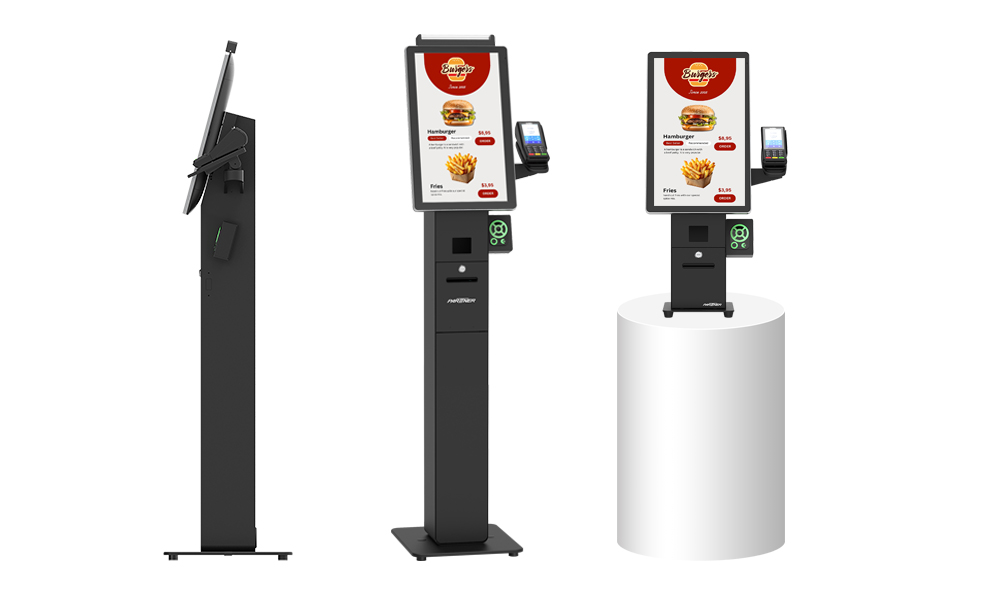

Sleek, Space-Saving Kiosk Design – Desktop or Floor Models
Maximize your floor space with PS-137, an elegantly designed, space-saving self-service kiosk in our popular Alfred family. Now available in both desktop and floor models, each with a compact footprint, it fits seamlessly into any environment – from retail and restaurants to theaters, healthcare, and corporate spaces.
Even sleeker and more compact than other kiosk models, PS-137 features a modern black finish for a clean, contemporary look.
Even sleeker and more compact than other kiosk models, PS-137 features a modern black finish for a clean, contemporary look.
Accessible by Design

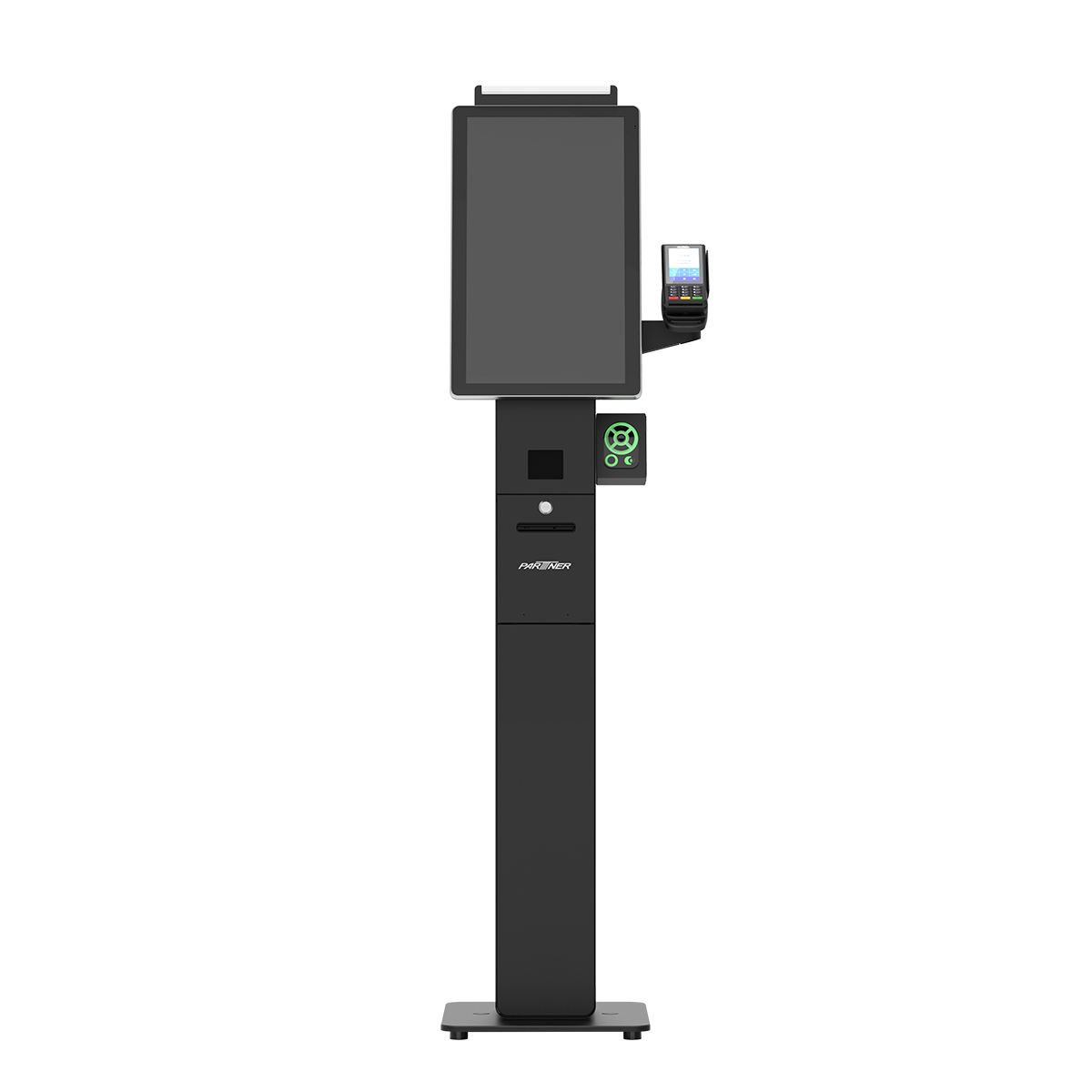

The Alfred PS-137 is built to deliver an inclusive self-service experience. With support for an ADA-compliant tactile keypad, users can navigate and complete transactions with ease – regardless of visual ability. Paired with JAWS screen reader software, the kiosk provides speech-guided interaction, enabling customers to independently place orders, make payments, and receive confirmations with confidence.
Together, these accessibility features help ensure compliance with ADA standards while creating a more welcoming and user-friendly experience for all.
Together, these accessibility features help ensure compliance with ADA standards while creating a more welcoming and user-friendly experience for all.
Modular, Customizable &
Payment-Ready Design

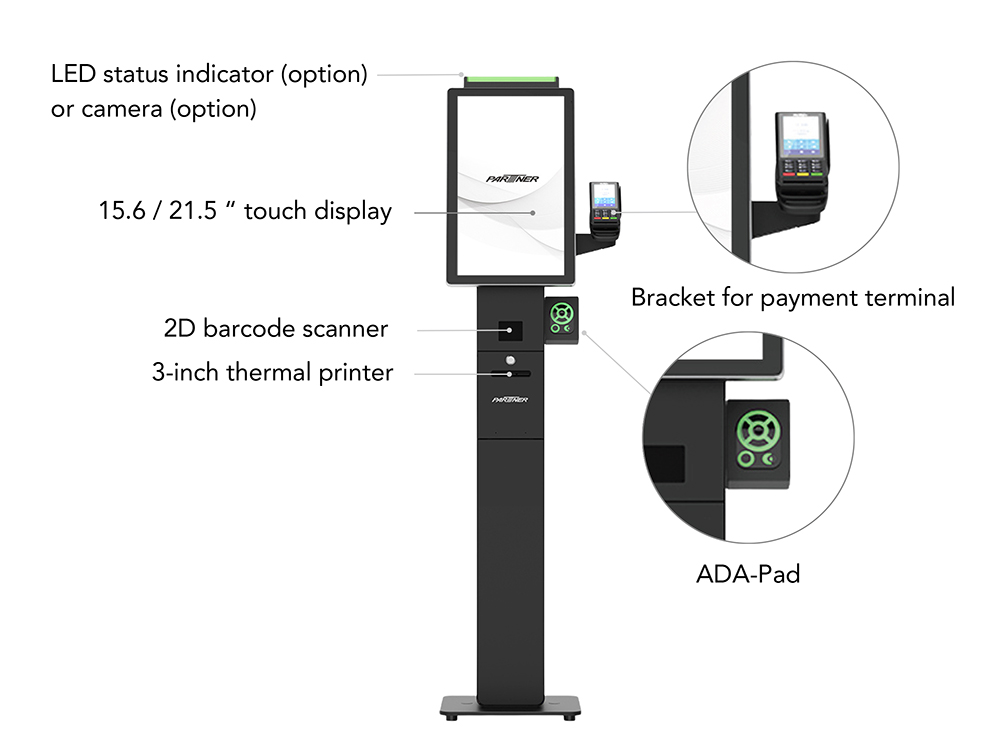

The Alfred PS-137 features a modular design that adapts to your space and operational needs. It’s equipped with a high-brightness, 21.5-inch (A7) multi-touch display that supports both portrait and landscape orientations. Its slim profile discreetly houses a lockable 3-inch receipt printer while concealing cables and power strips – delivering a clean, professional look.

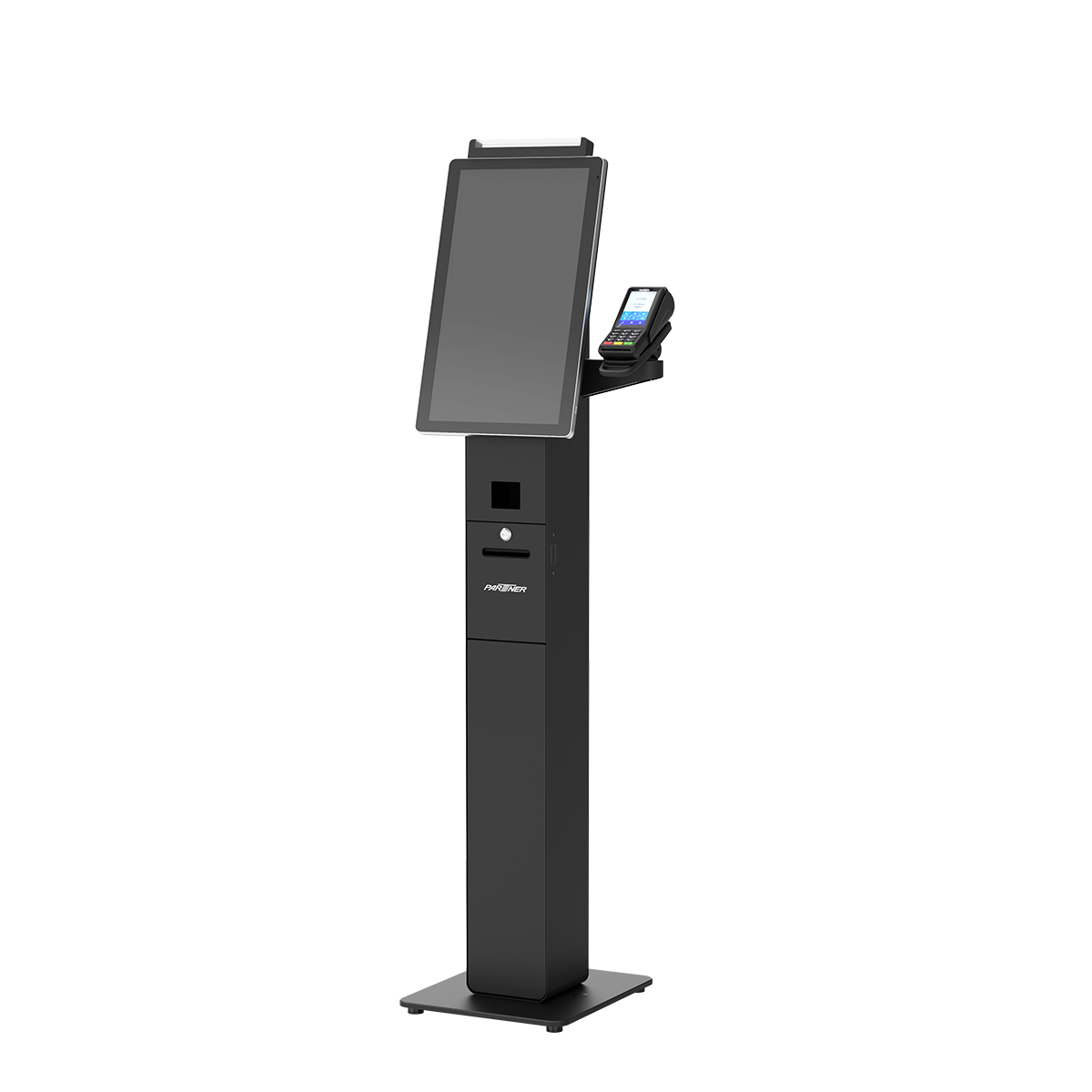

Customize your kiosk with optional peripherals such as a 2D barcode scanner, ADA keypad, RFID reader, LED status light, and payment brackets to fit your exact requirements. The optional payment bracket attaches directly to the display and supports most leading payment terminals, creating a seamless, all-in-one solution for self-ordering and checkout.
Customize your kiosk with optional peripherals such as a 2D barcode scanner, ADA keypad, RFID reader, LED status light, and payment brackets to fit your exact requirements. The optional payment bracket attaches directly to the display and supports most leading payment terminals, creating a seamless, all-in-one solution for self-ordering and checkout.
High Performance with Android and Windows Support
Powered by high-speed processor technology, the PS-137 delivers top-tier performance and reliability. It's available with best-in-class Intel and Rockchip processors and supports both Android and Windows operating systems, making it adaptable to various business software. Plus, it comes with an industry - leading warranty for added peace of mind.
Key Features
- 15.6" or 21.5" full HD touch display (500 nits)
- Intel Alder Lake/Elkhart Lake or Rockchip processor
- Available for Windows, Linux Ubuntu and Android
- Integrated 3-inch thermal printer
- Available in black
Optional Features
- ADA-Pad for accessibility
- Payment terminal bracket
- 2D barcode reader
- Wi-Fi connectivity
- LED status light
Interested in Learning More about Partner Tech Products?
Contact us now and we'll be in touch shortly.
| Item | Alfred PS-137 | ||||
|---|---|---|---|---|---|
| Display Size | 21.5" (1920 x 1080) | ||||
| Aspect Ratio | 16:9 | ||||
| Brightness | 500 nits | ||||
| Touch | PCAP touch | ||||
| CPU | Alder Lake Intel® Core™ i3-1215U Intel® Core™ i5-1245U, vPro Intel® Core™ i7-1265U, vPro |
Elkhart Lake Intel® Celeron® J6412 |
Rockchip RK3399 |
||
| Memory | DDR4 4GB, 8GB, 16GB, 32GB | LDDR4 4GB | |||
| Storage | M.2 PCIe SSD: 128GB / 256GB / 512GB / 1TB | eMMC 32GB + 1x micro SD card slot (up to 128GB) | |||
| I/O Ports | 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in setting (COM1, COM2) | |||
| 1 x Intel LAN (IEEE 802.3 10/100/1000 Mbps) | 1 x LAN (IEEE 802.3 10/100/1000 Mbps) | ||||
| 4 x USB 3.2 + 2 x USB 2.0 | 3 x USB 3.2 + 3 x USB 2.0 | 1 x USB 3.0 (OTG) + 5 x USB 2.0 | |||
| 1 x Type-C (data transfer + display) | 1 x micro SD card | ||||
| 1 x RJ11 port support for two cash drawers with 24V / 12V by jumper setting | |||||
| 1 x DC + 12V out | |||||
| 1 x DC + 12V input | |||||
| 1 x audio (1 x line-out) | |||||
| 1 x HDMI | |||||
| Speaker | 1 x speaker (3W) | ||||
| Printer | 3" thermal printer | ||||
| Peripheral Options | 2D barcode scanner, MSR, payment terminal bracket, RFID/NFC reader, ADA keypad, LED status light (multi-color light bar) | ||||
| Wi-Fi / BT (options) | Wi-Fi 6E (Intel AX210), IEEE 802.11 a/b/g/n/acR2/axR2, tri-band (2.4 GHz, 5 GHz, 6 GHz) BT 5.3 |
IEEE 802.11a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) BT 4.2 (supports BLE) |
|||
| Operating System | Windows 11 IoT Enterprise LTSC 24H2 (64 bit) | Android 12 | |||
| Windows 10 IoT Enterprise LTSC 21H2 (64bit) | |||||
| Linux Ubuntu 22.04 | |||||
| TPM & vPro | Intel vPro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) | N/A | ||
| S/W TPM 2.0 (BIOS) | |||||
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 120W | AC-In 100~240V / DC-Out 12V, 90W | AC-In 100~240V / DC-Out 12V, 90W | ||
| Reliability | System operating temperature: 0~40°C/ 32~104°F | ||||
| System humidity: 15% ~ 80% | |||||
| Storage temperature: -20~60°C/-4~140°F | |||||
| Dimensions (W x H x D) |
Landscape: 524 x 1480 x 400 mm / 20.6 x 58.3 x 15.8 in | Portrait: 350 x 1576 x 400 mm / 15.0 x 61.9 x 15.8 in | |||
