HomeCLEO C14-1E/1N
Compact All-in-one Touch Screen POS Terminal
Space-saving and elegant 14-inch POS terminal. Complete with a built-in printer, interactive customer display and support for all your preferred payment options. Available for Windows and Linux Ubuntu.
SHARE
OVERVIEW
Same Base. Different Screen Size.
Cleo C14 is a space-saving, all-in-one POS terminal with a smartly designed base that supports a 14-inch PCAP touch display. The compact and sleek design makes this an ideal POS solution for seasonal event, small stores, cafés, bars, food trucks, and other places where counter space is precious.
Triple Display Support
Elevate the customer experience with an optional rear-mounted display that keeps customers informed throughout the transaction—while maintaining a clean, cable-free look with all wiring hidden inside the base.
With support for up to three displays, Cleo C14 also allows a third screen for digital signage via HDMI.
With support for up to three displays, Cleo C14 also allows a third screen for digital signage via HDMI.
Space-Saving with Built-in Printer
Cleo C14 includes a fully integrated, lockable 3-inch thermal printer, designed to maximize counter space and maintain a clean, clutter-free setup with minimal cabling.
All Your Preferred Payment Types
With optional integrated MSR, EMV, and NFC readers, Cleo C14 enables seamless support for all preferred payment types, including contactless and mobile payments. For added flexibility, it can also be paired with an external payment terminal from any leading brand.
Faster Throughput with Barcode Scanning
Speed up checkout with an optional 2D barcode scanner capable of reading both traditional barcodes and QR-based coupons, conveniently mountable on either side of the display.
For advanced functionality, Cleo C14 can also be configured with a camera for item and facial recognition, along with an optional integrated fingerprint reader.
For advanced functionality, Cleo C14 can also be configured with a camera for item and facial recognition, along with an optional integrated fingerprint reader.
Top of the Line Power and Speed
Powered by Intel® Elkhart Lake or Alder Lake processors, and configurable with up to 32 GB of RAM and up to a 1 TB solid-state drive, Cleo C14 delivers the performance needed to handle demanding applications without slowdowns.
Cleo C14 is available with Windows 10/11, Android 15, or Ubuntu 22.04 Linux.
Cleo C14 is available with Windows 10/11, Android 15, or Ubuntu 22.04 Linux.
Smart Design. Built to Last
Engineered for durability, it’s built to withstand continuous use in demanding retail and hospitality environments and it is protected by a 3-year warranty.
Key Features
- Compact all-in-one design
- 14.1" PCAP touch display
- Fully integrated printer and 2nd display
- Intel Elkhart Lake or Alder Lake CPU
- Windows 10/11 and Linux Ubuntu 22.04
- High speed M.2 SSD for maximum performance and reliability
- Up to 32 GB DDR4 RAM
- 3-year warranty (Windows)
Optional Features
- MSR, EMV reader, fingerprint reader and NFC reader
- 8 MP camera and 2D barcode scanner
- Up to two extra displays (CD-101C or CoCo)
- Optional Wi-Fi and BT connectivity
Interested in Learning More about Partner Tech Products?
Contact us now and we'll be in touch shortly.
| Item | C14-1E (Elkhart Lake) | C14-1N (Alder Lake-N) |
| Size | 14.1″ | |
| Aspect Ratio | 16:9 | |
| Resolution | 1366 x 768 | |
| Brightness (typical) | 220 nits | |
| Touch | PCAP touch | |

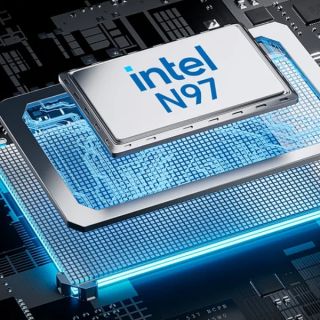

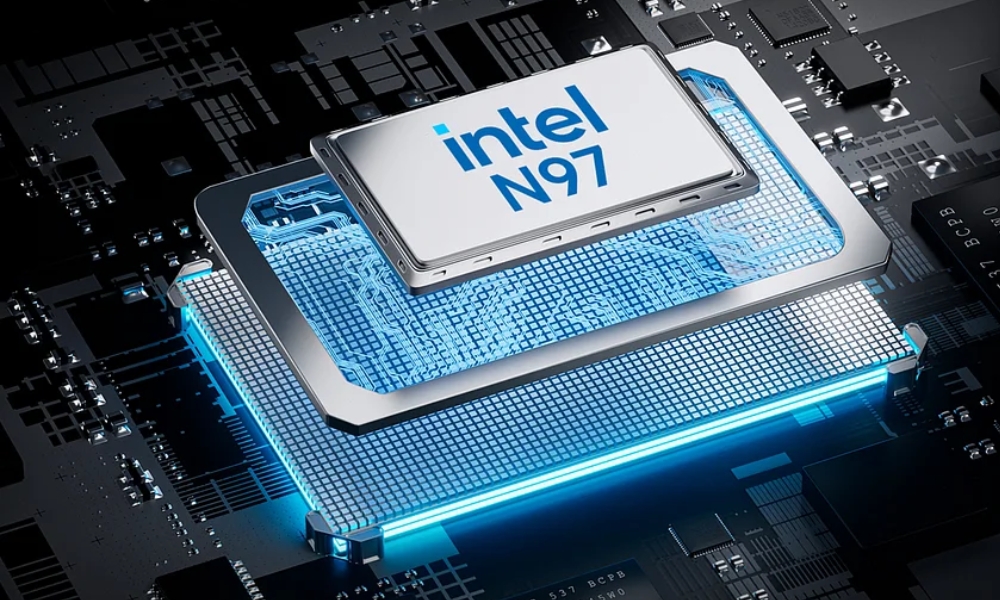

| CPU | Elkhart Lake Intel® Celeron® Processor J6412 |
Alder Lake-N Intel® Processor N97 |
| Memory (RAM) | DDR4: 4 GB | 8 GB | 16 GB | 32 GB | |
| Storage | M.2 PCIe SSD: 128 GB | 256 GB | 512 GB | 1 TB | |
| I/O Ports | 4 x USB 3.2 + 2 x USB 2.0 | |
| 4 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3, COM4) | ||
| 1 x LAN (IEEE 802.3 10/100/1000 Mbps) | 1 x LAN (IEEE 802.3 10/100/2500 Mbps | |
| 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | ||
| 1 x audio (1 x line out) | ||
| 1 x HDMI | ||
| 1 x DC + 24V input | ||
| Speaker | 1 x speaker (3W) | |
| Printer | 3" thermal printer | |
| Peripherals Options | MSR (encrypted), EMV reader, fingerprint reader, RFID/NFC reader | |
| 2D barcode scanner | ||
| 8 MP camera | ||
| 2nd display: CD-101C/CoCo (USB) | ||
| Wi-Fi/ BT (options) | Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2 BT5.3 |
|
| 3 independent displays (main display + HDMI + CD-101C/CoCo) | ||
| Operating System | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) | |
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | ||
| 3. Linux Ubuntu 22.04 | ||
| TPM | S/W TPM 2.0 (BIOS) | |
| Power Adaptor | AC-In 100~240V / DC-Out 24V, 72W | |
| Reliability | System operating temperature: 0~104°F/ 0~40°C | |
| System humidity: 15% ~ 80% | ||
| Storage temperature: -4~140°F/ -20~60°C | ||
| Dimensions (W x H x D) | 13.41 x 12.41 x 9.73 in / 341 mm x 315 mm x 247.13 mm | |
| Weight | 8.82 Ib / 4 kg | |
| Warranty | 3 years | |
